Transmission Position Sensor/Switch: Diagrams

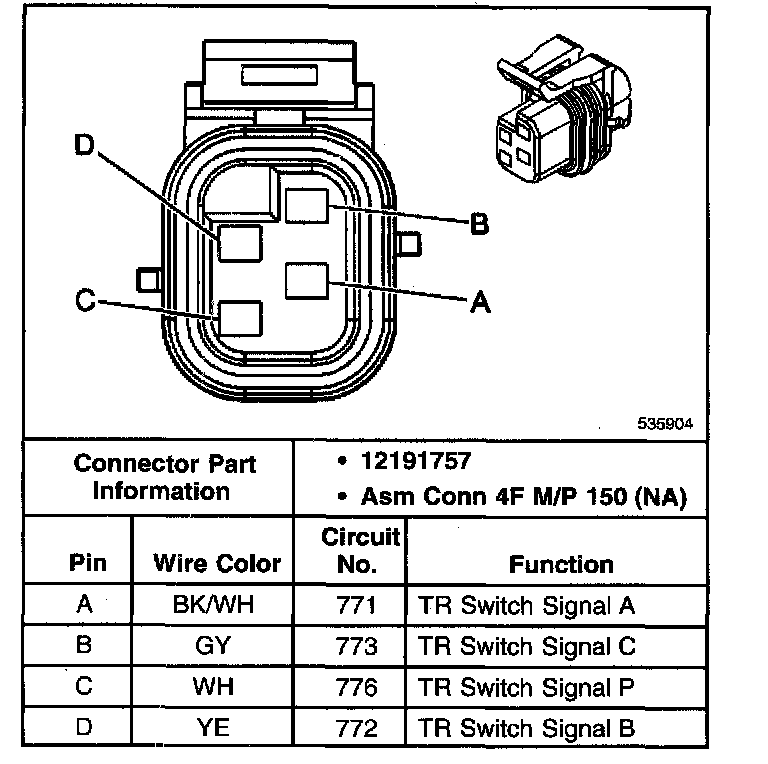

Automatic Transmission Related Connector End Views





Transmission Range Switch Connector, Wiring Harness Side
