Home >> Chevrolet >> 2004 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Internal Components

Internal Components

Disassembled View

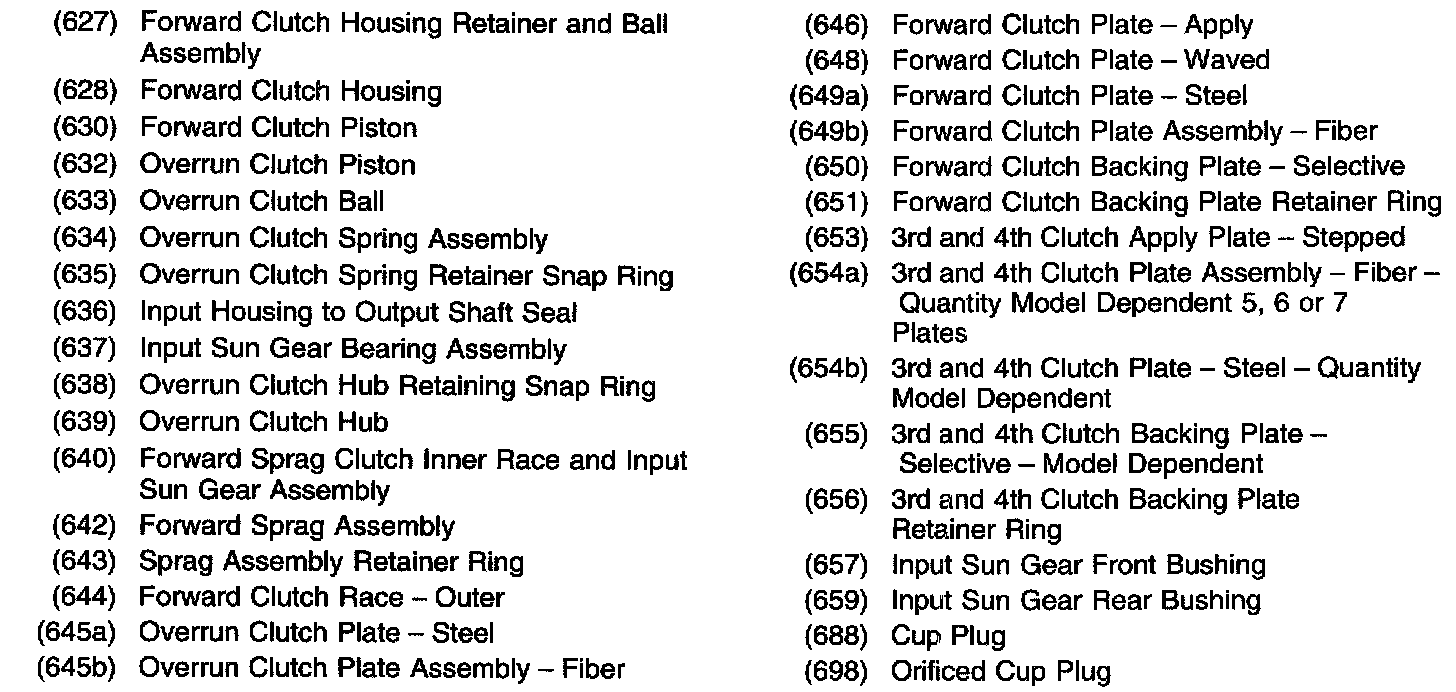

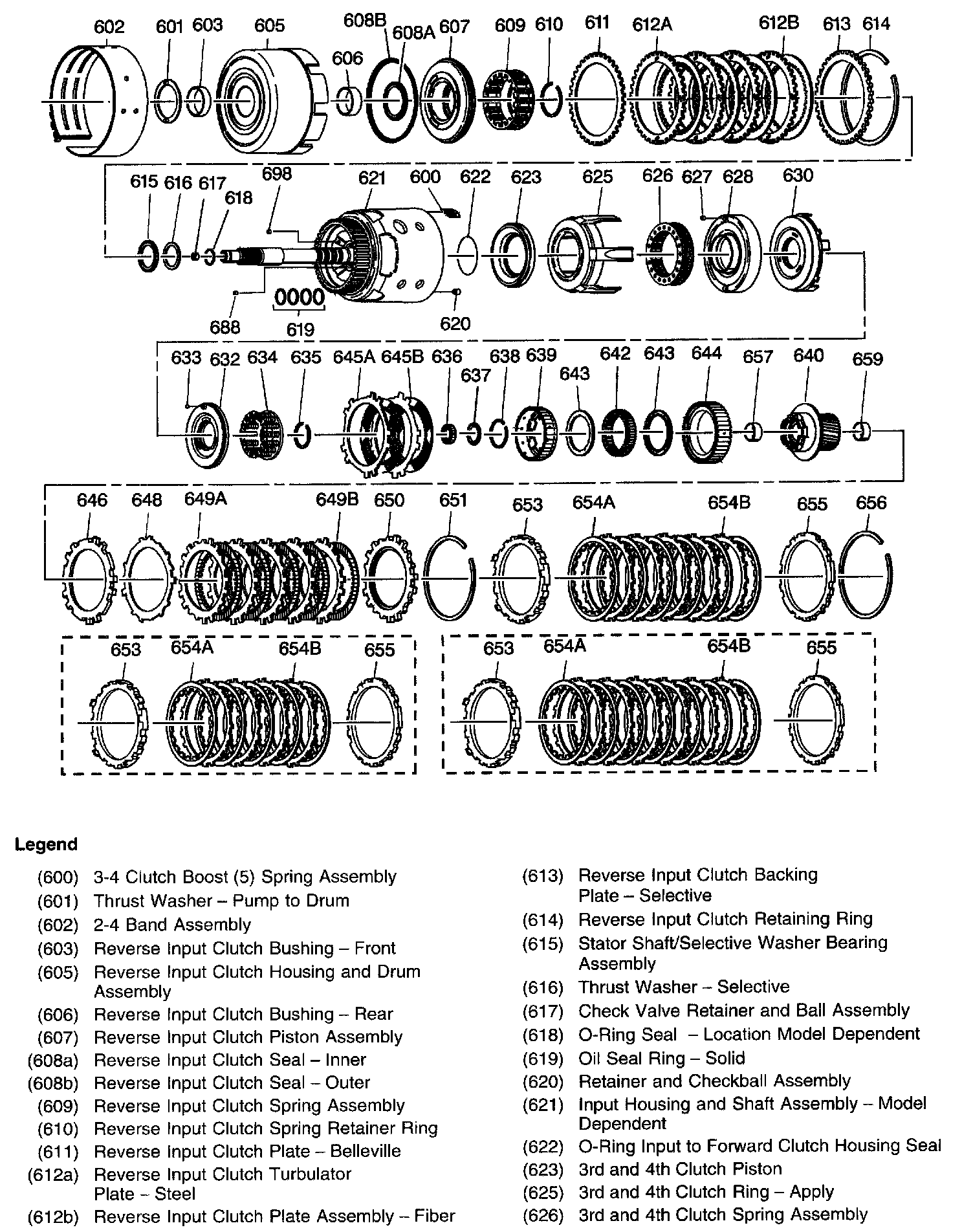

Internal Parts (1 of 2)

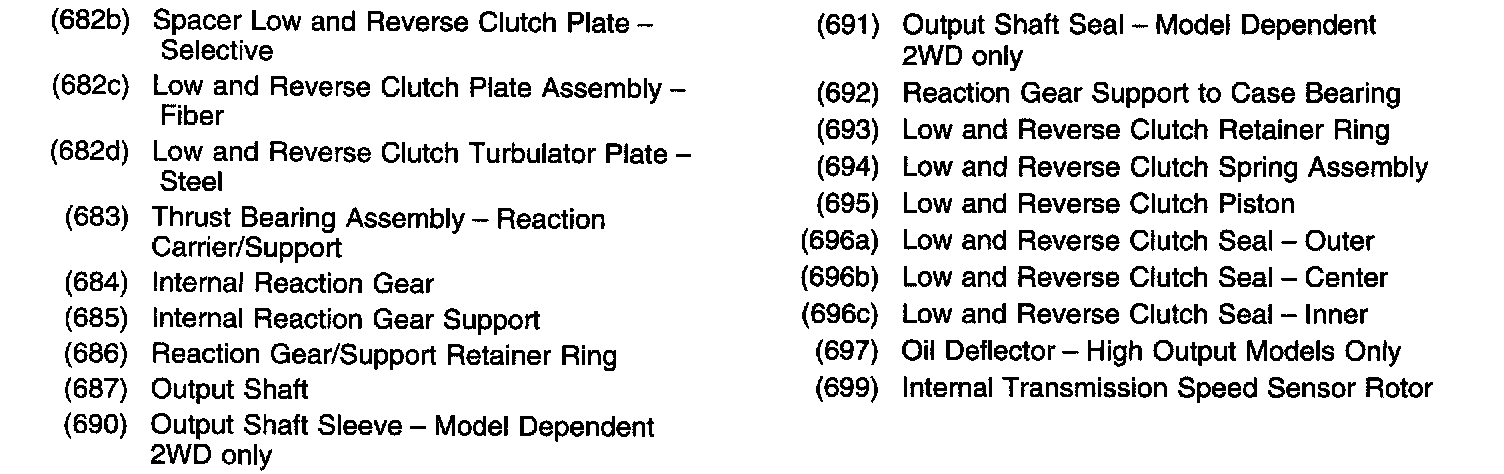

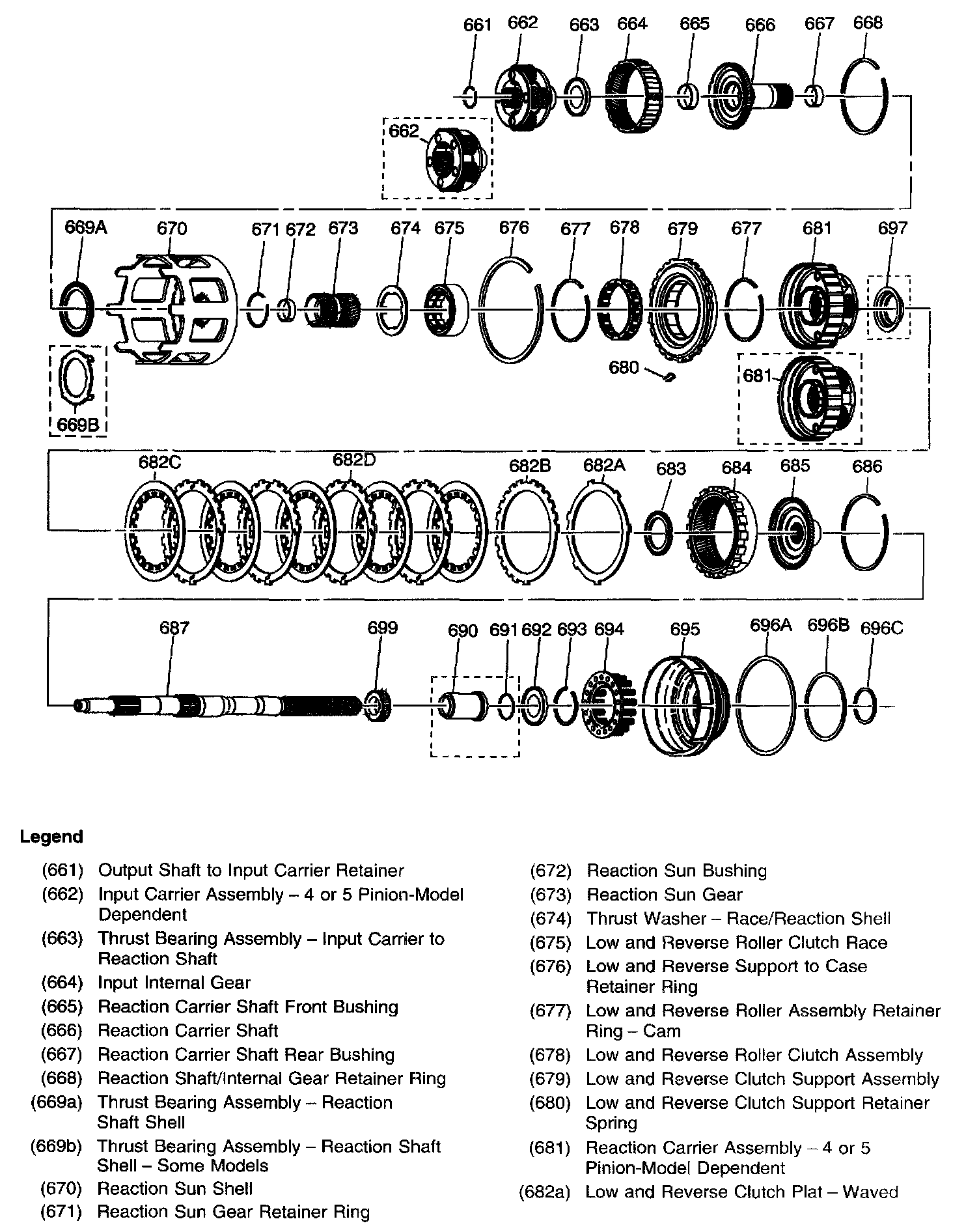

Internal Parts (2 of 2)
