Chevrolet
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Control Valve Body Assembly
Control Valve Body Assembly
Disassembled Views

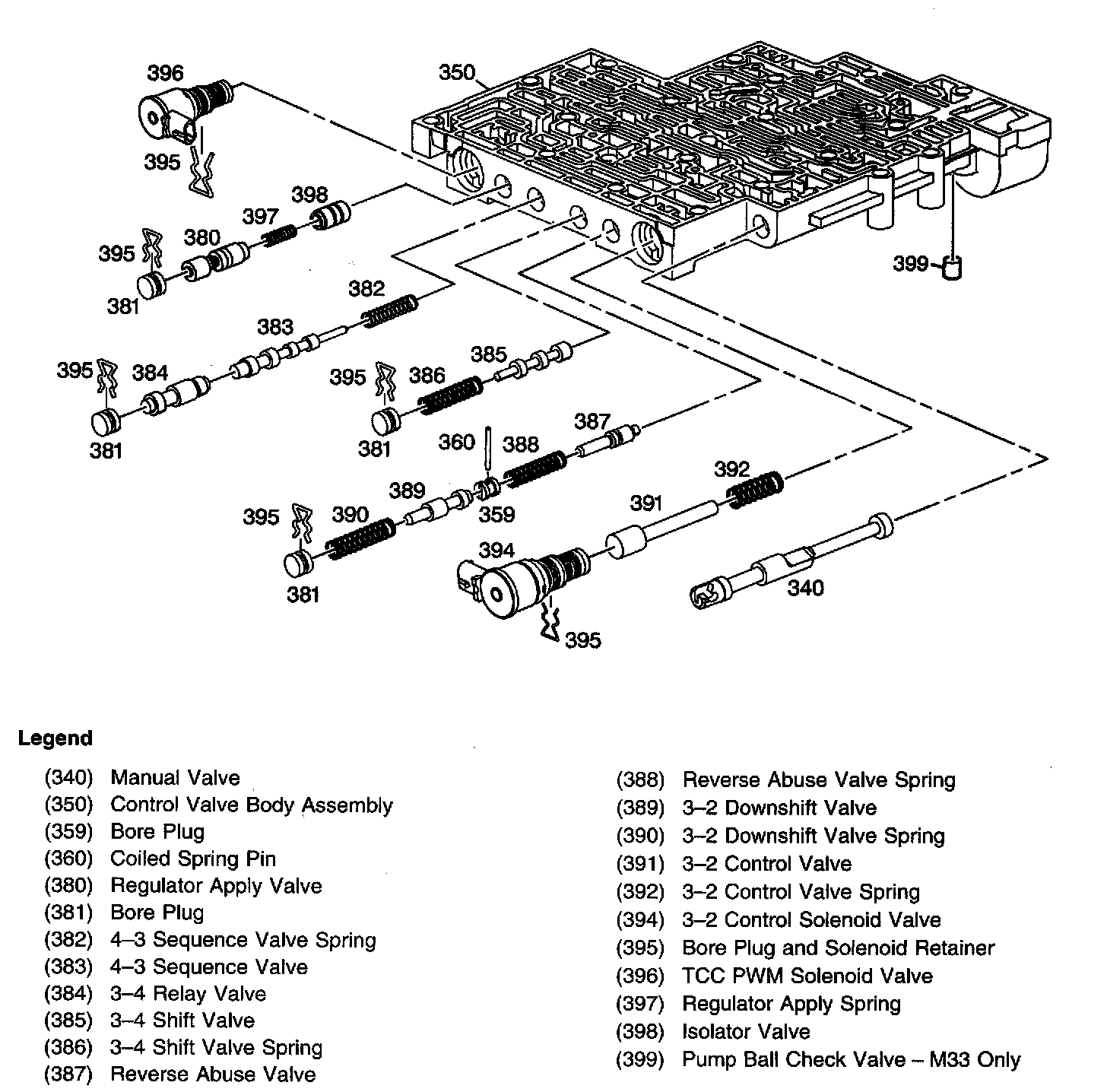

Control Valve Body Assembly (1 of 2)

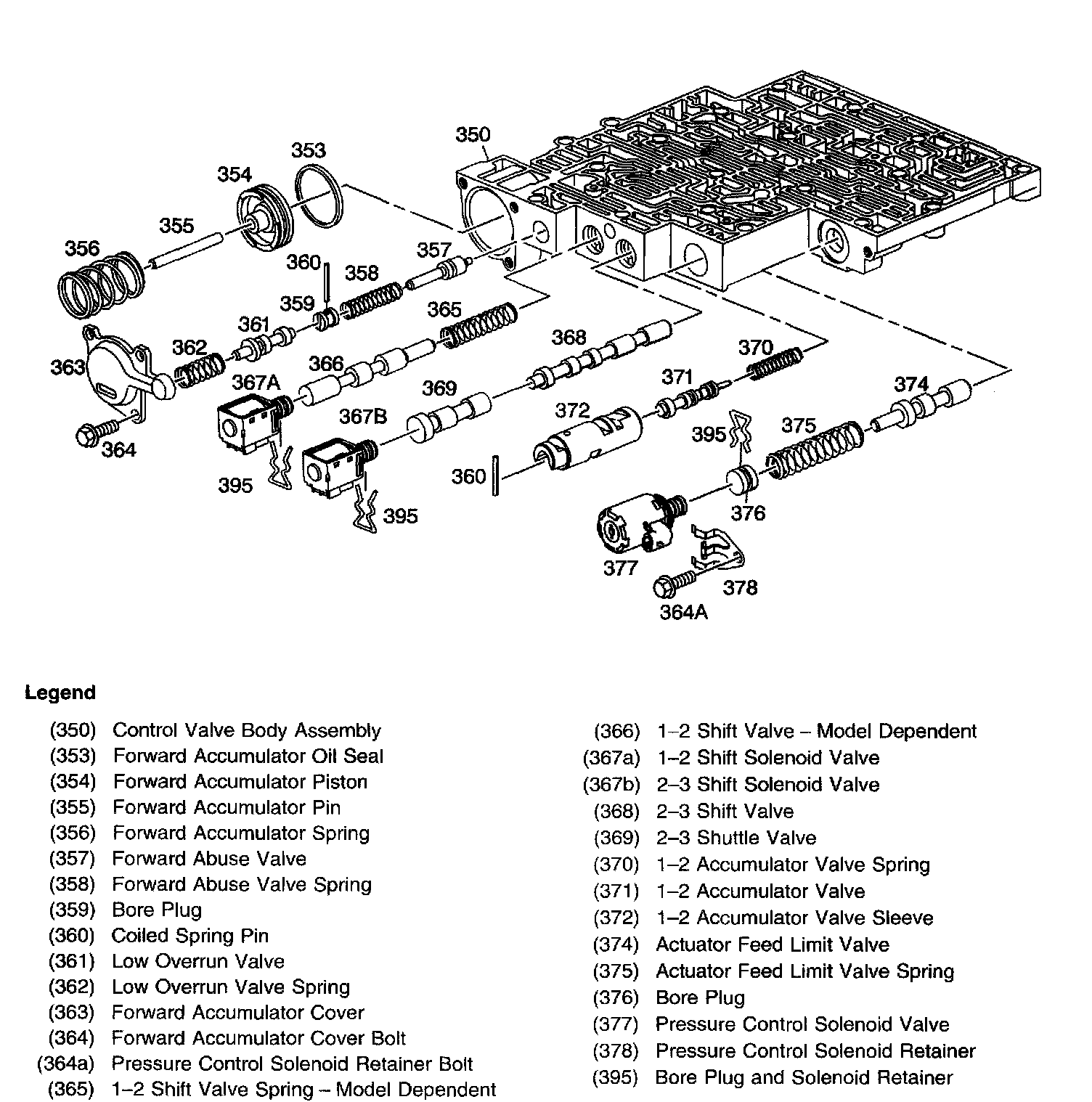

Control Valve Body Assembly (2 of 2)
