Powertrain Control Module (PCM) - C1

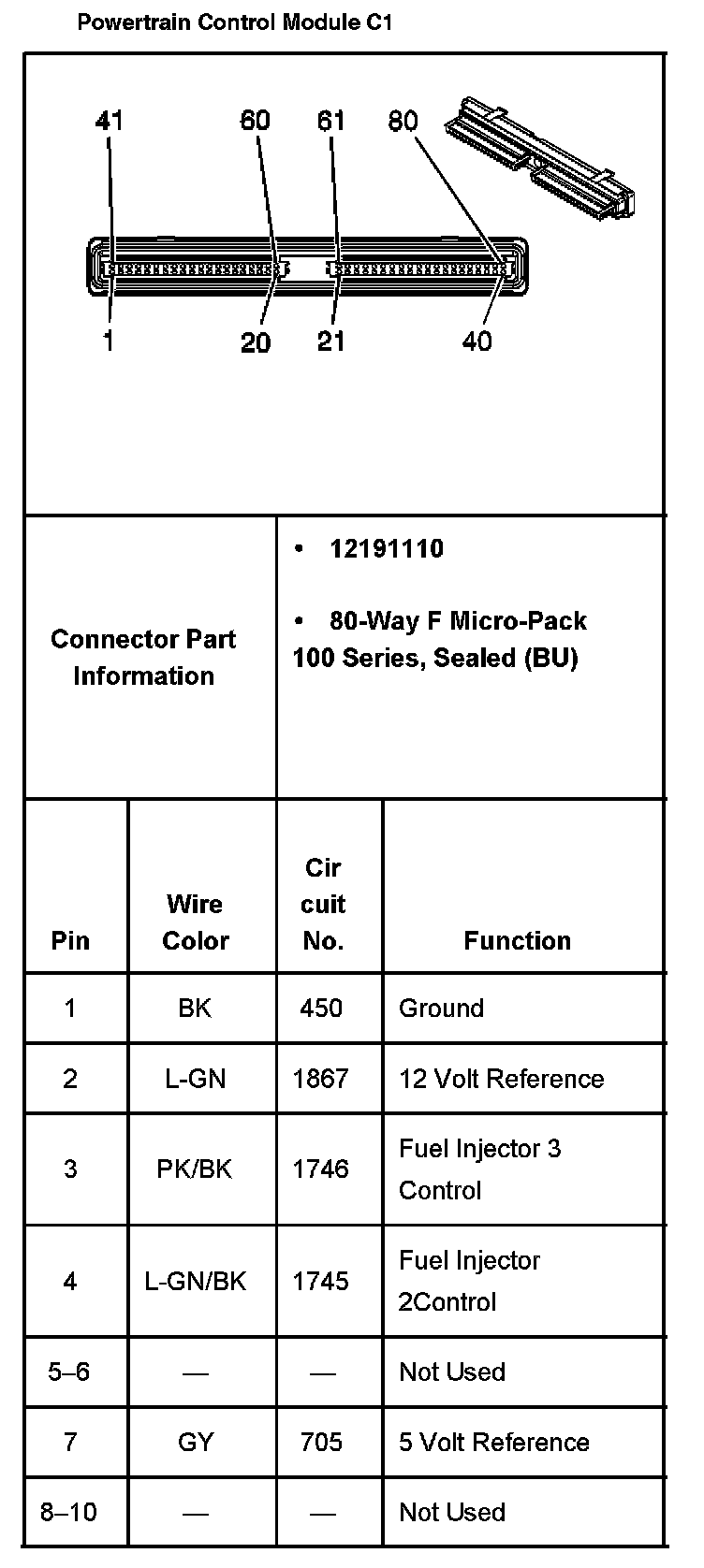

Powertrain Control Module C1 Part 1:

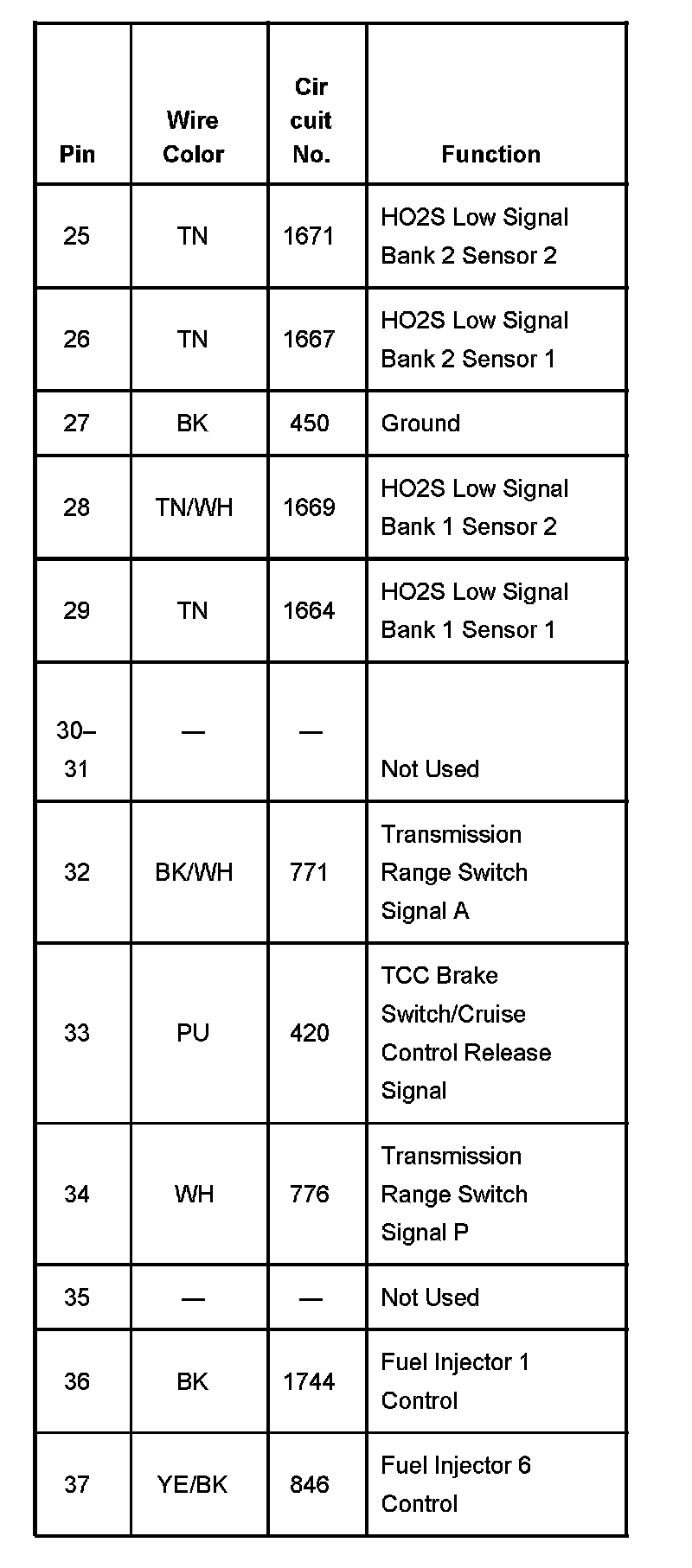

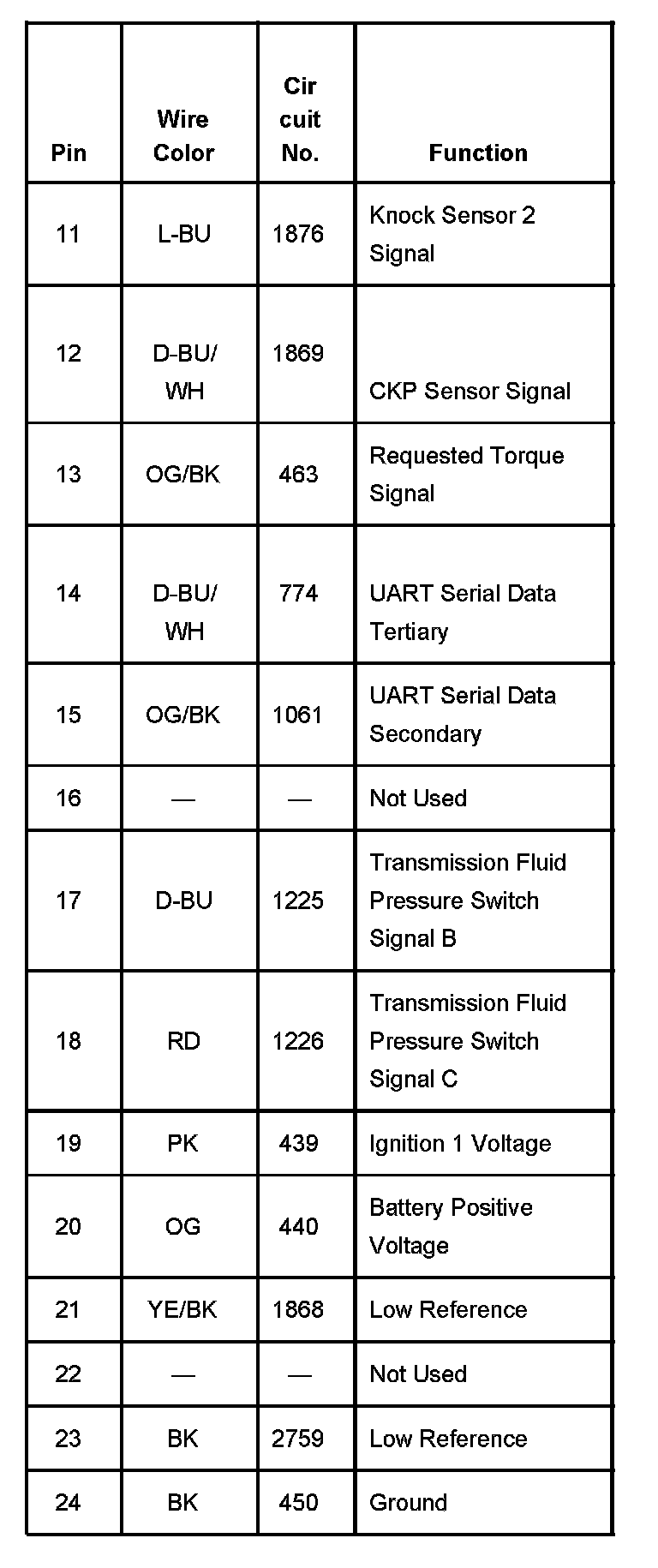

Powertrain Control Module C1 Part 2:

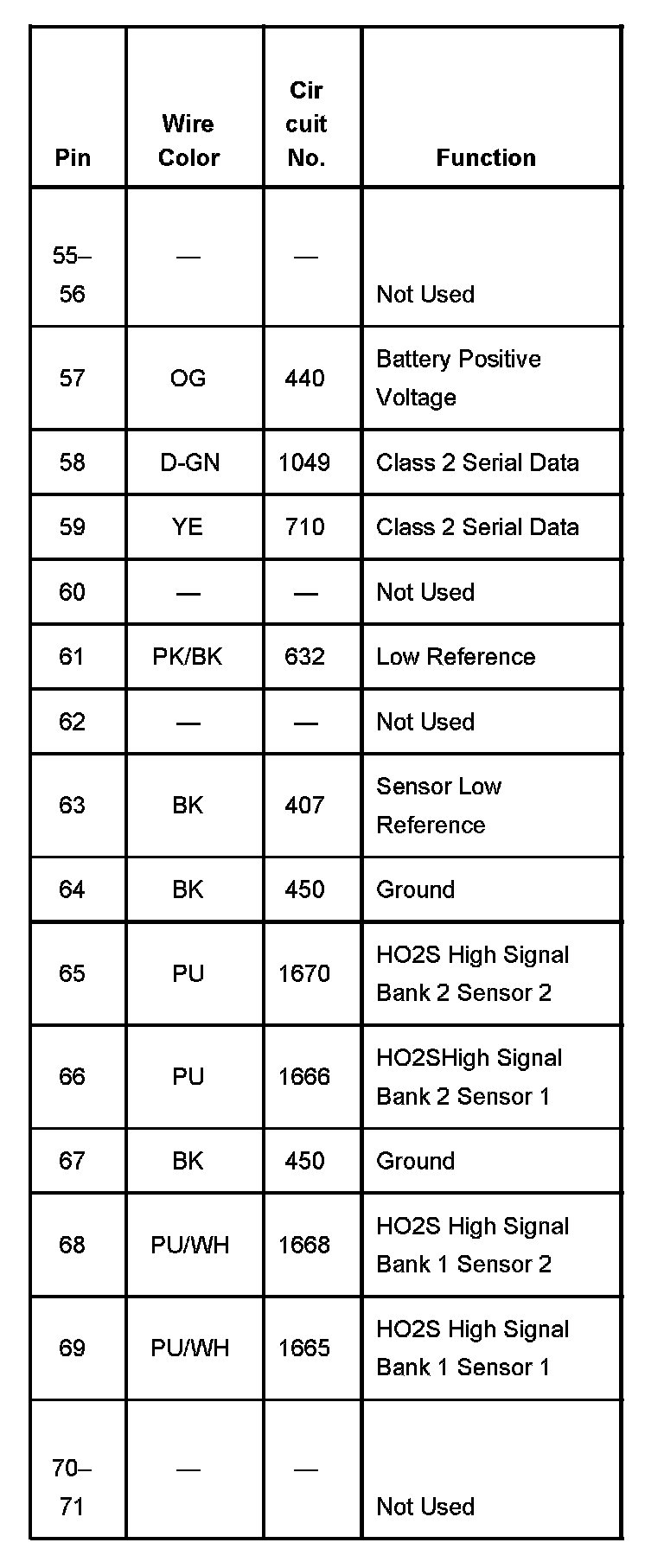

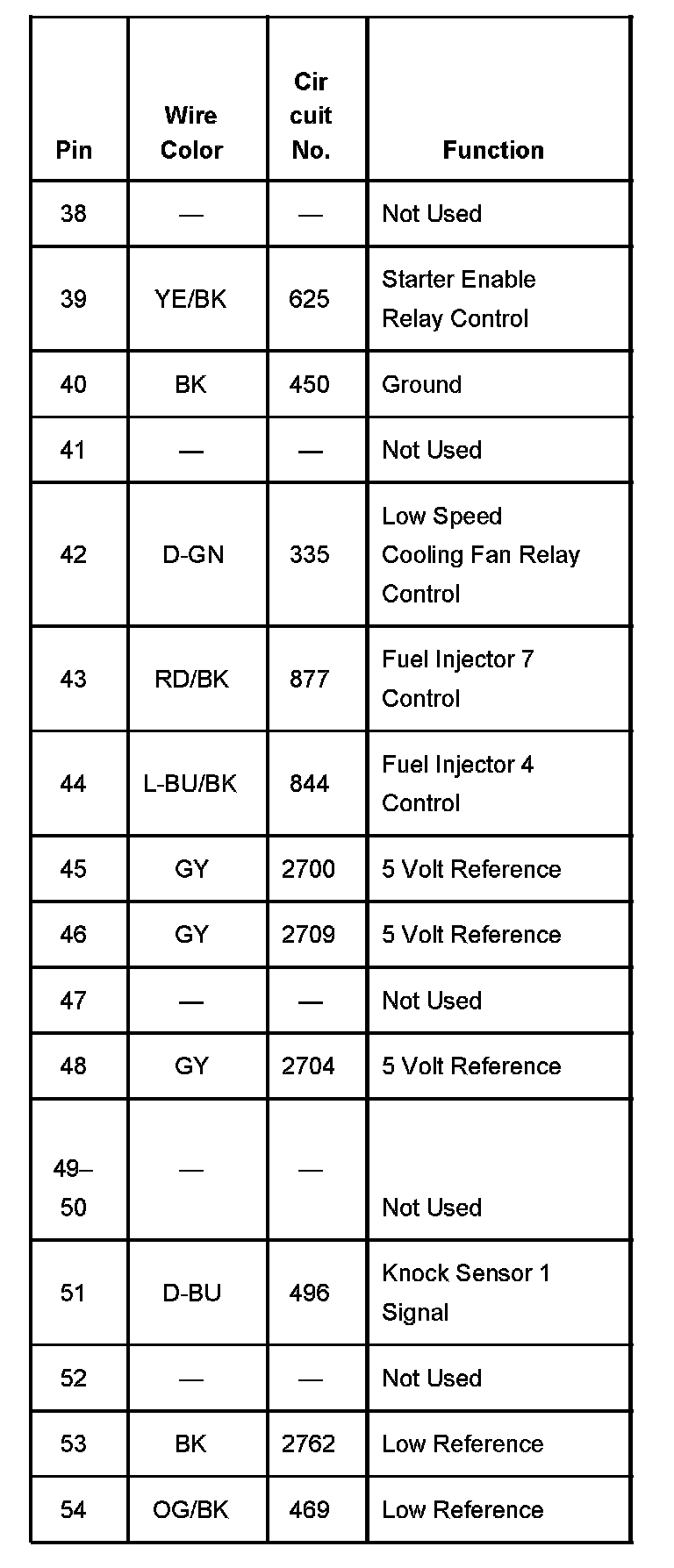

Powertrain Control Module C1 Part 3:

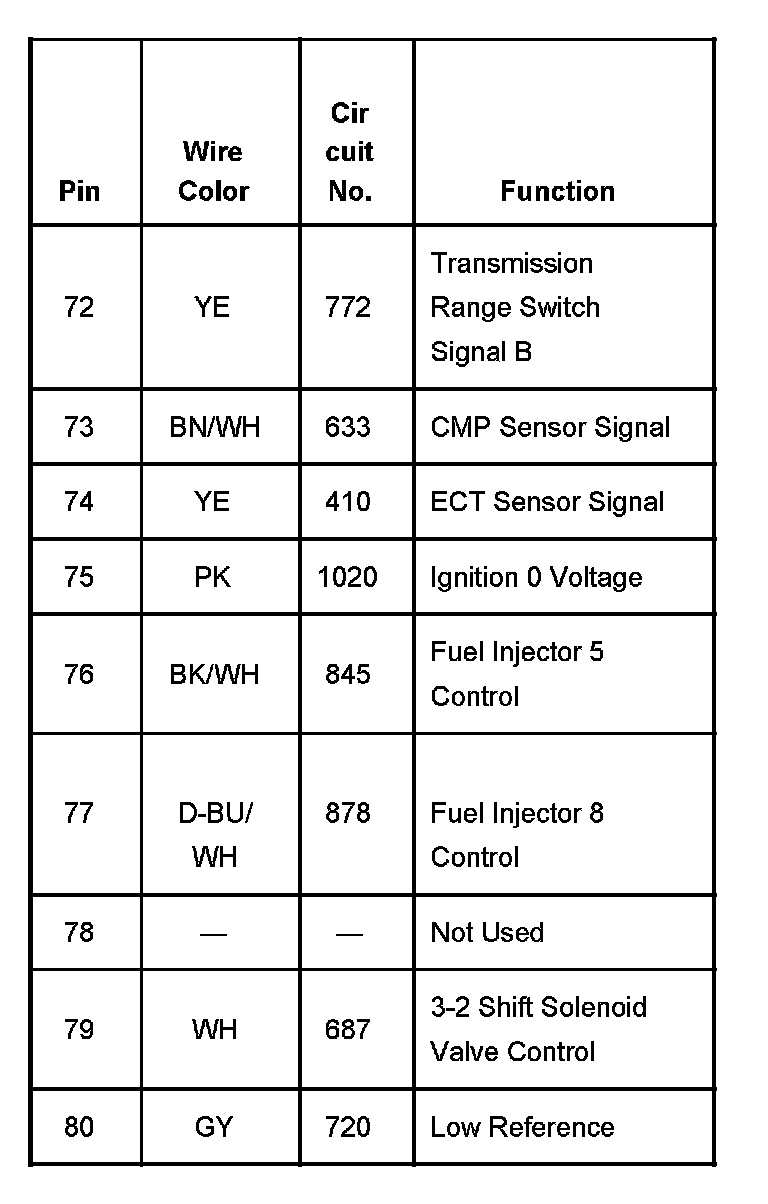

Powertrain Control Module C1 Part 4:




Powertrain Control Module C1 Part 5:




Powertrain Control Module C1 Part 6:
