Control Module HVAC

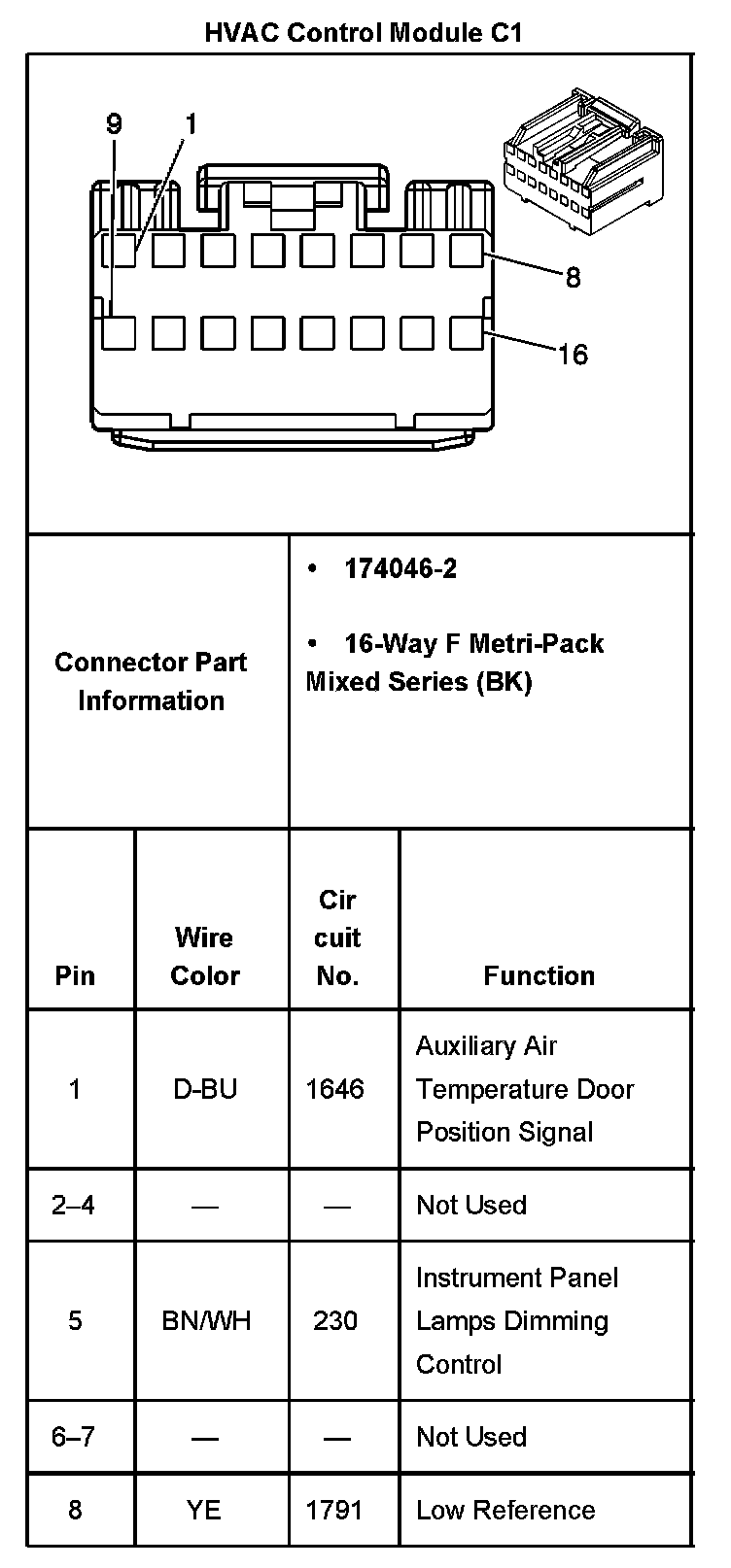

HVAC Control Module C1 - Part 1:

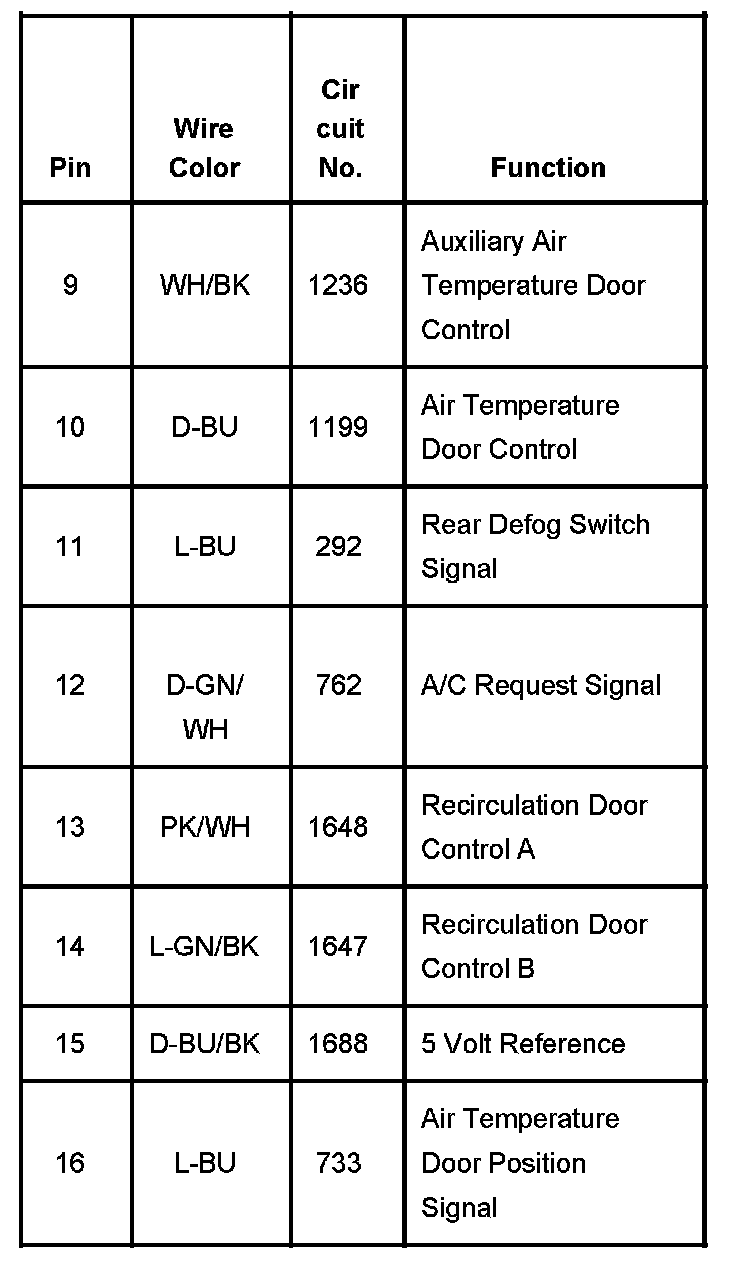

HVAC Control Module C1 - Part 2:

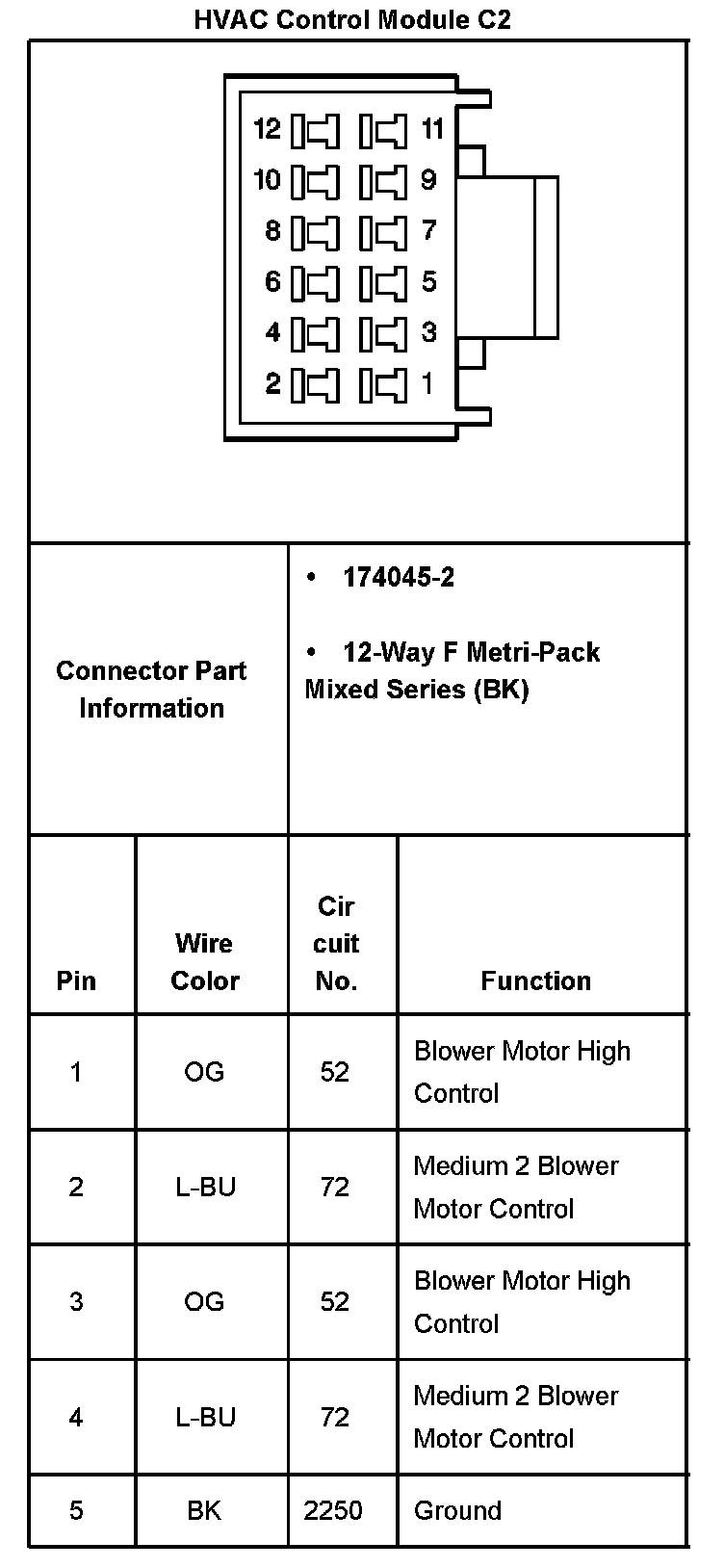

HVAC Control Module C2 - Part 1:

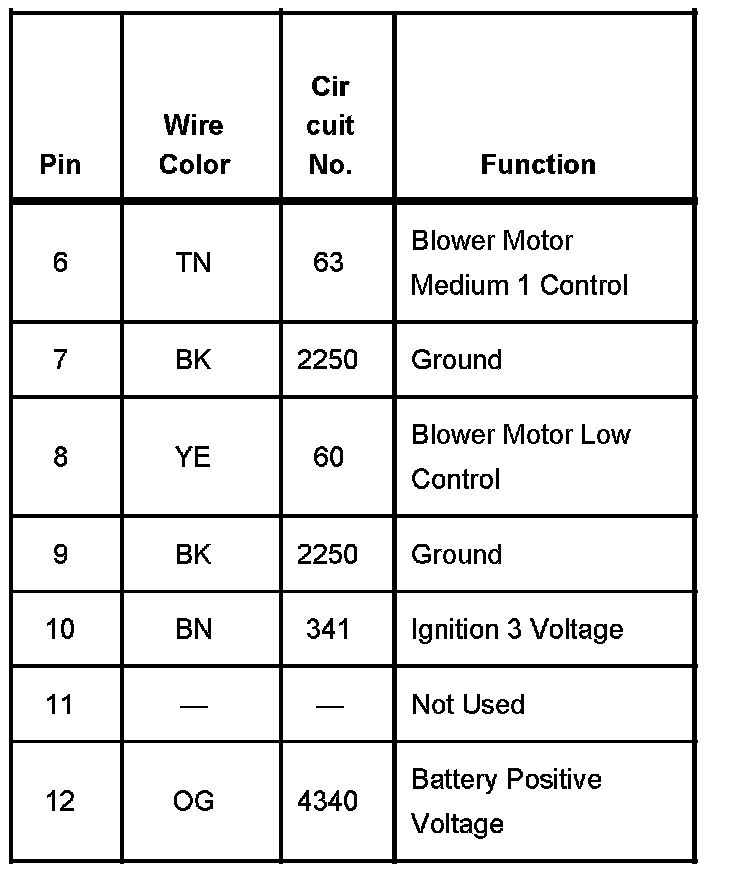

HVAC Control Module C2 - Part 2:
