Home >> Chevrolet >> 2004 >> Impala V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

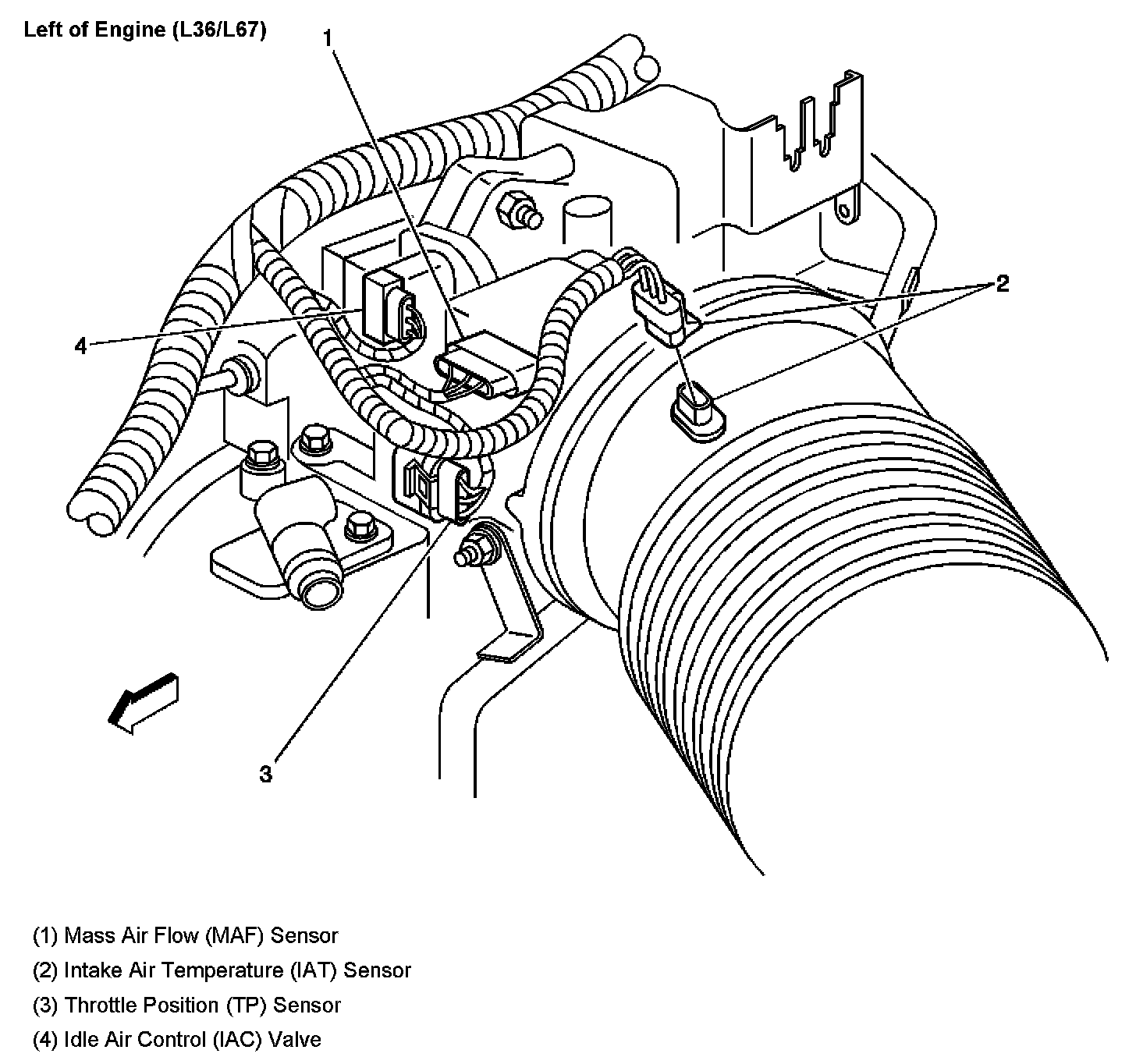

Left Of Engine:



Front Of Engine:

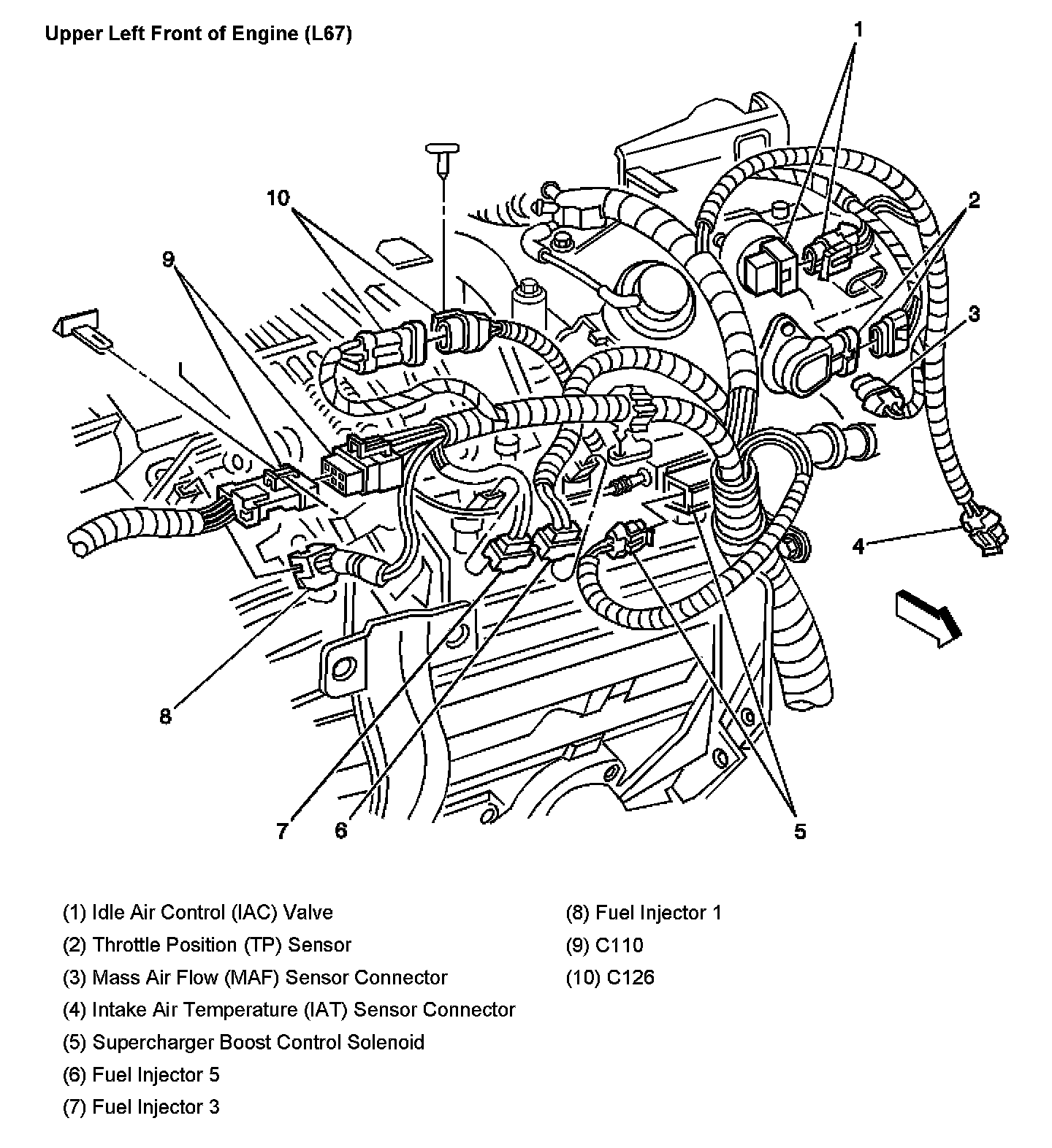

Upper Left Front Of Engine:



Front Of Engine:

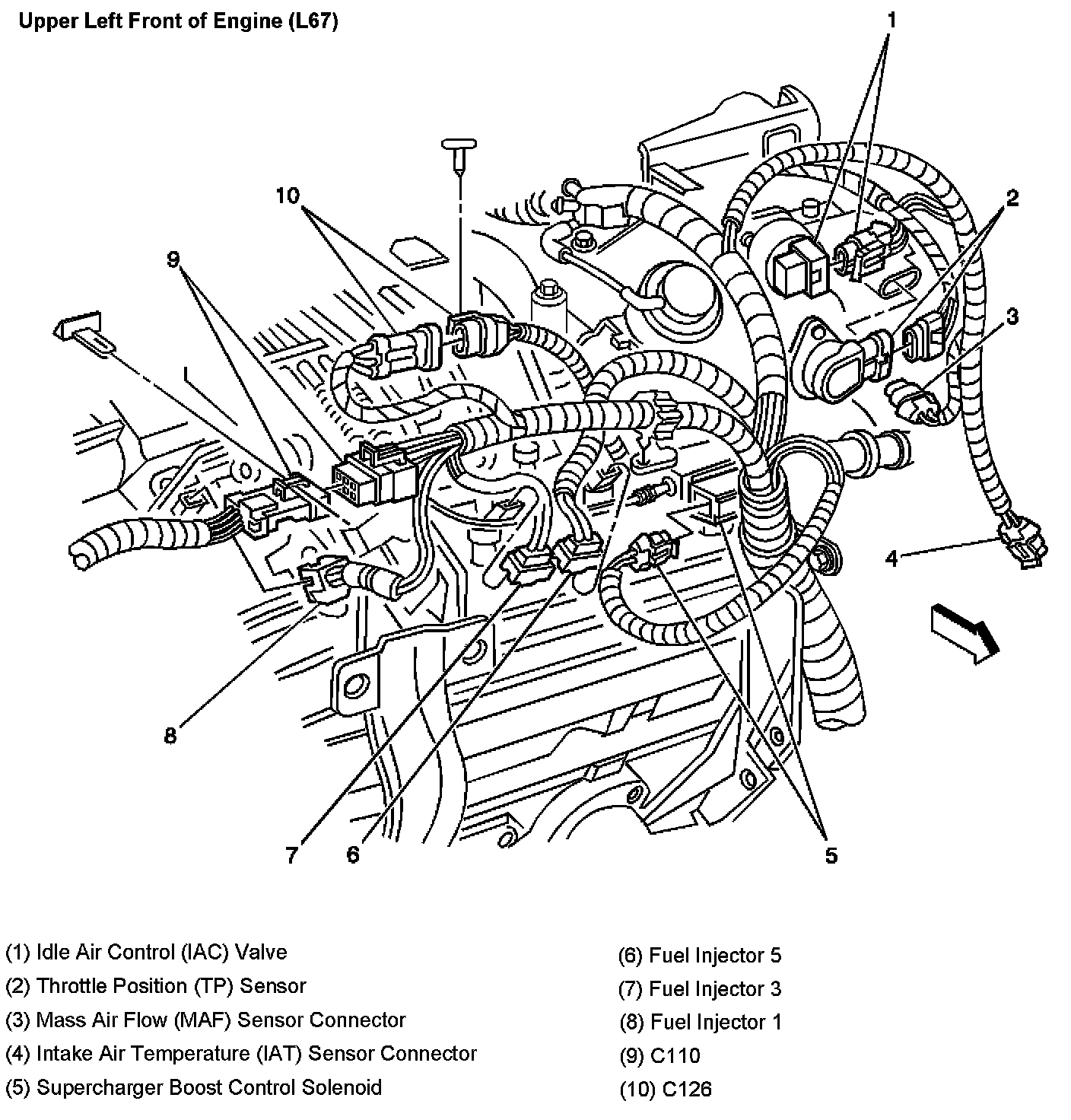

Upper Left Front Of Engine:
