Chevrolet
>>
2004
>>
Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Internal Components
Internal Components

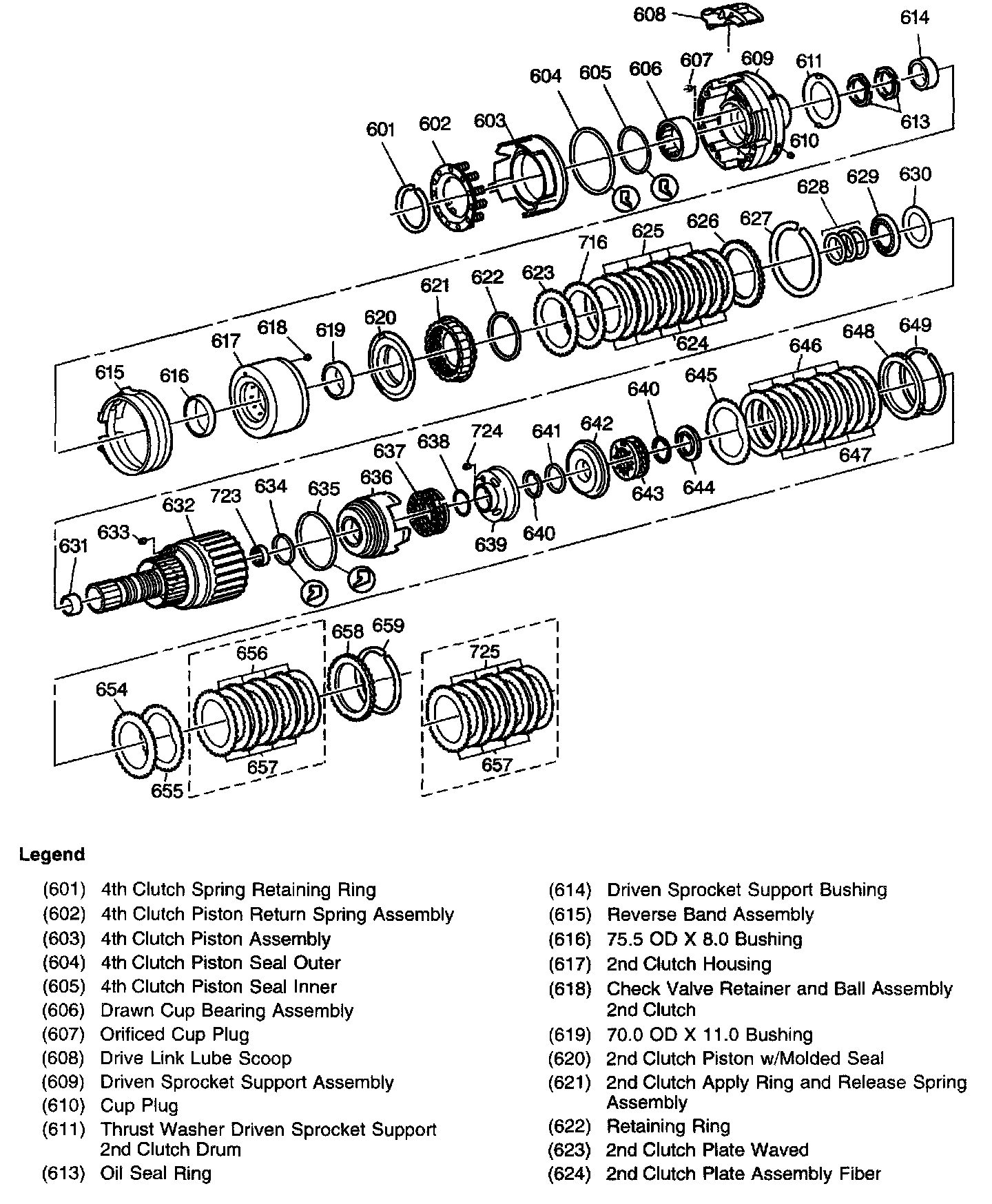

Internal Components (1 of 2) (Continues):

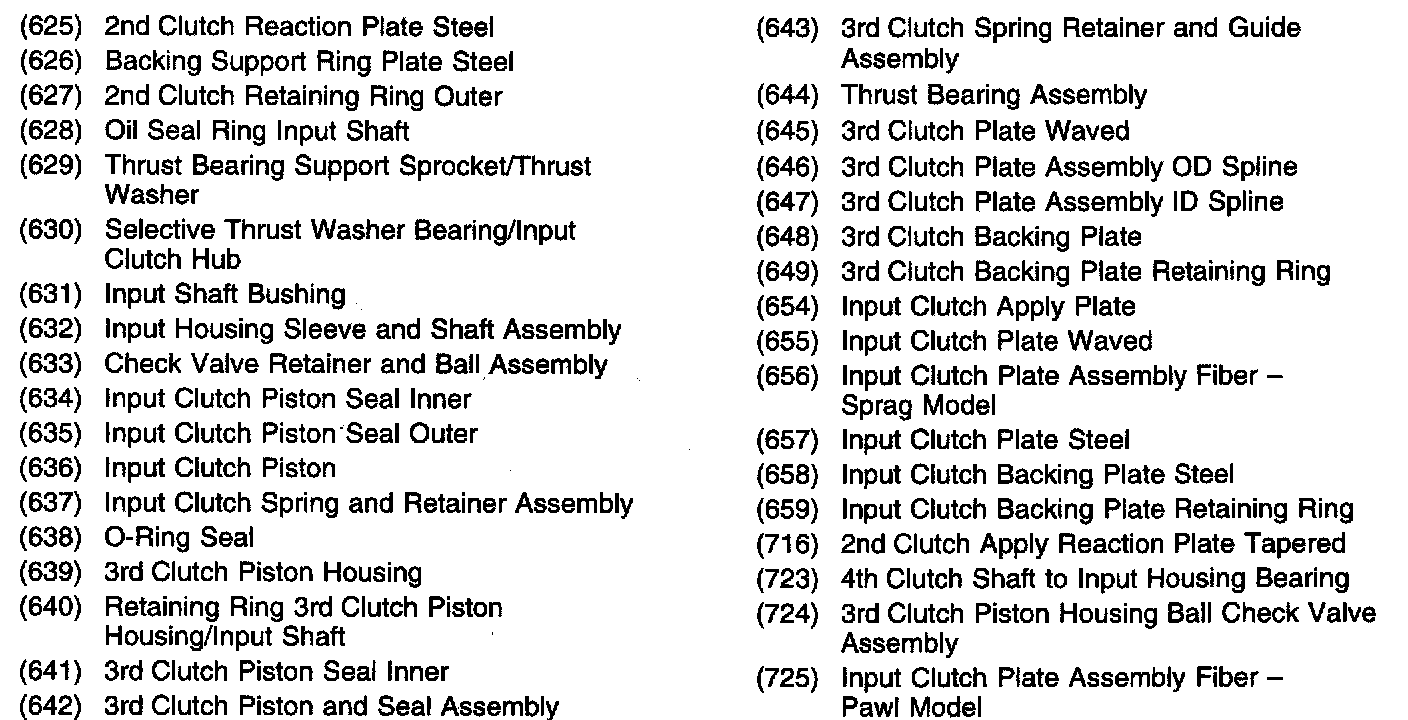

Internal Components (1 of 2):

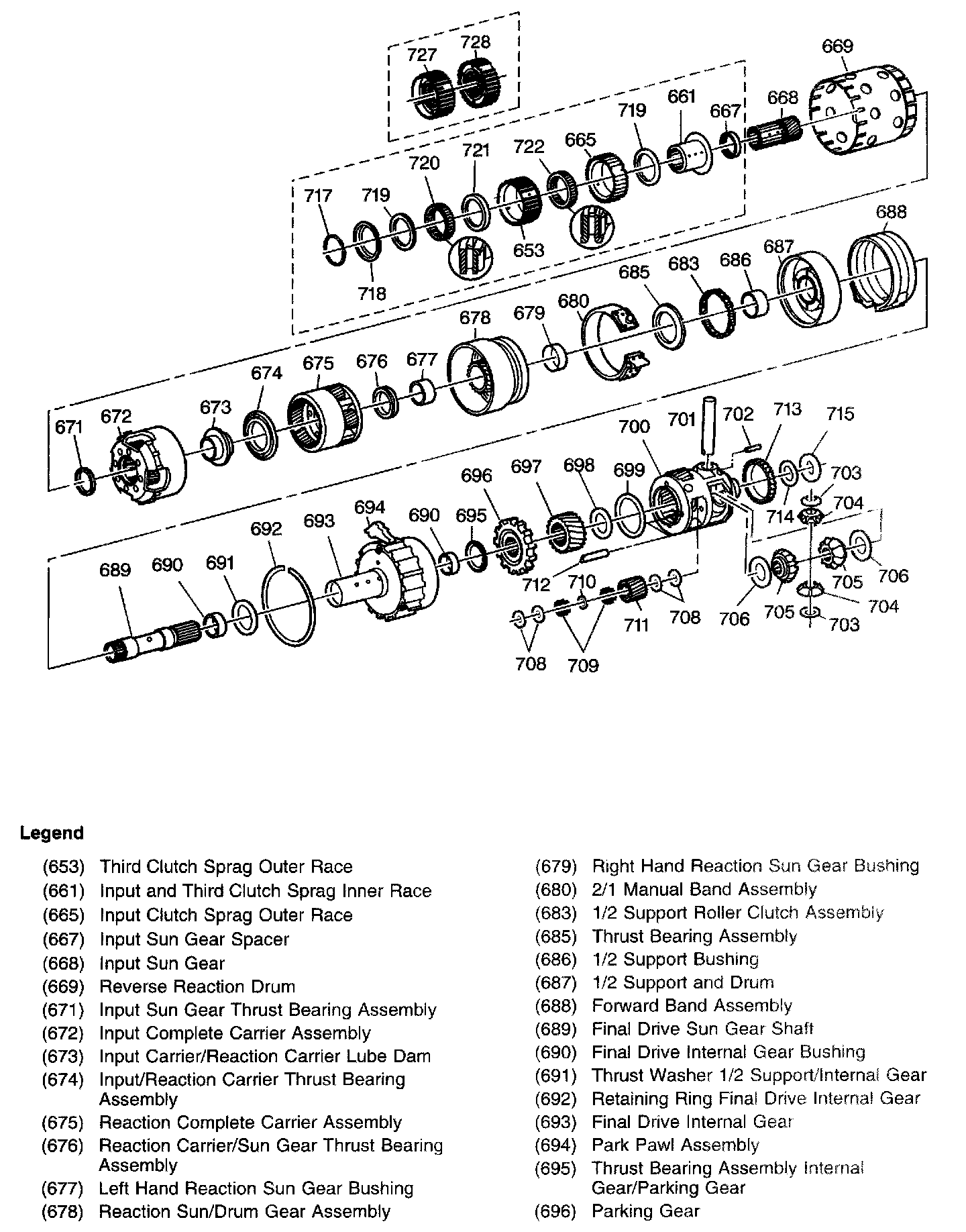

Internal Components (2 of 2) (Continues):

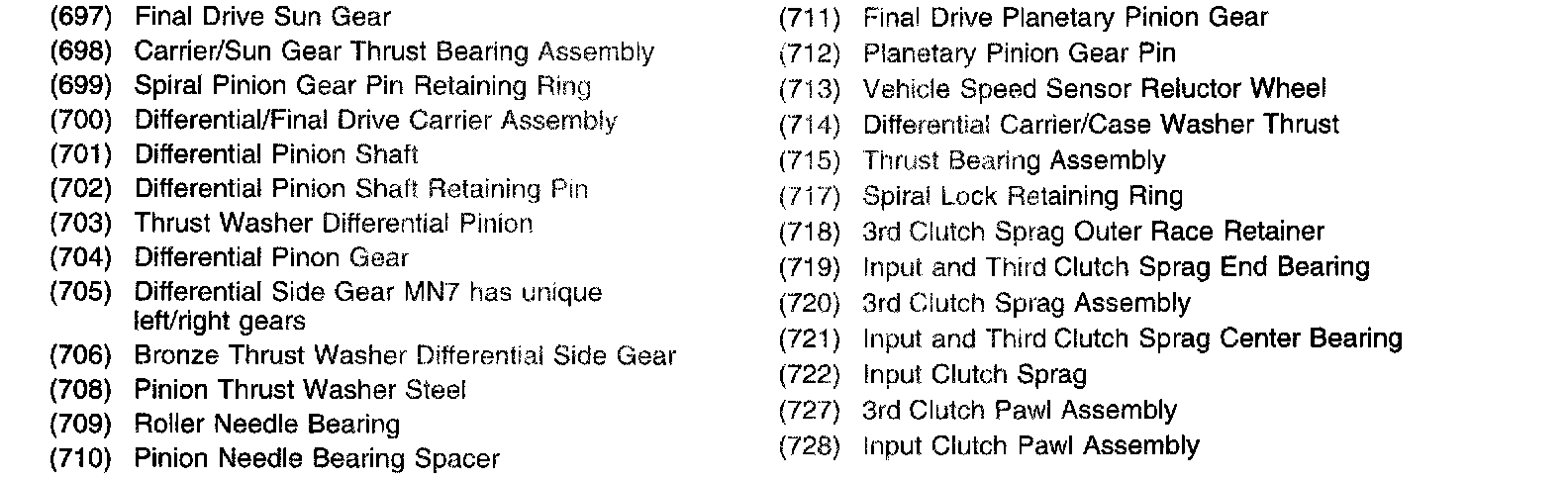

Internal Components (2 of 2):
