Home >> Chevrolet >> 2004 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper Intake Manifold and Components

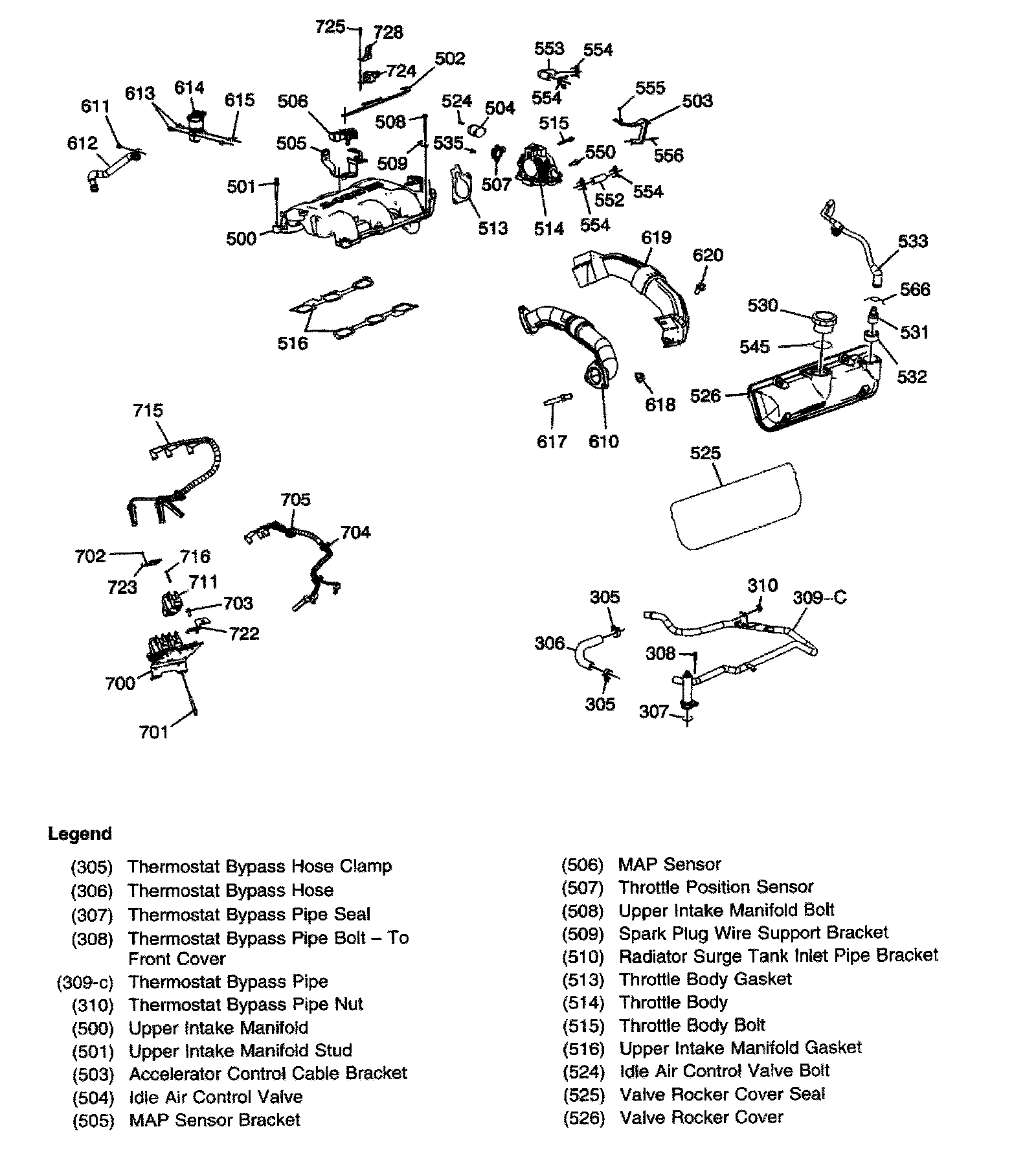

Upper Intake Manifold and Components

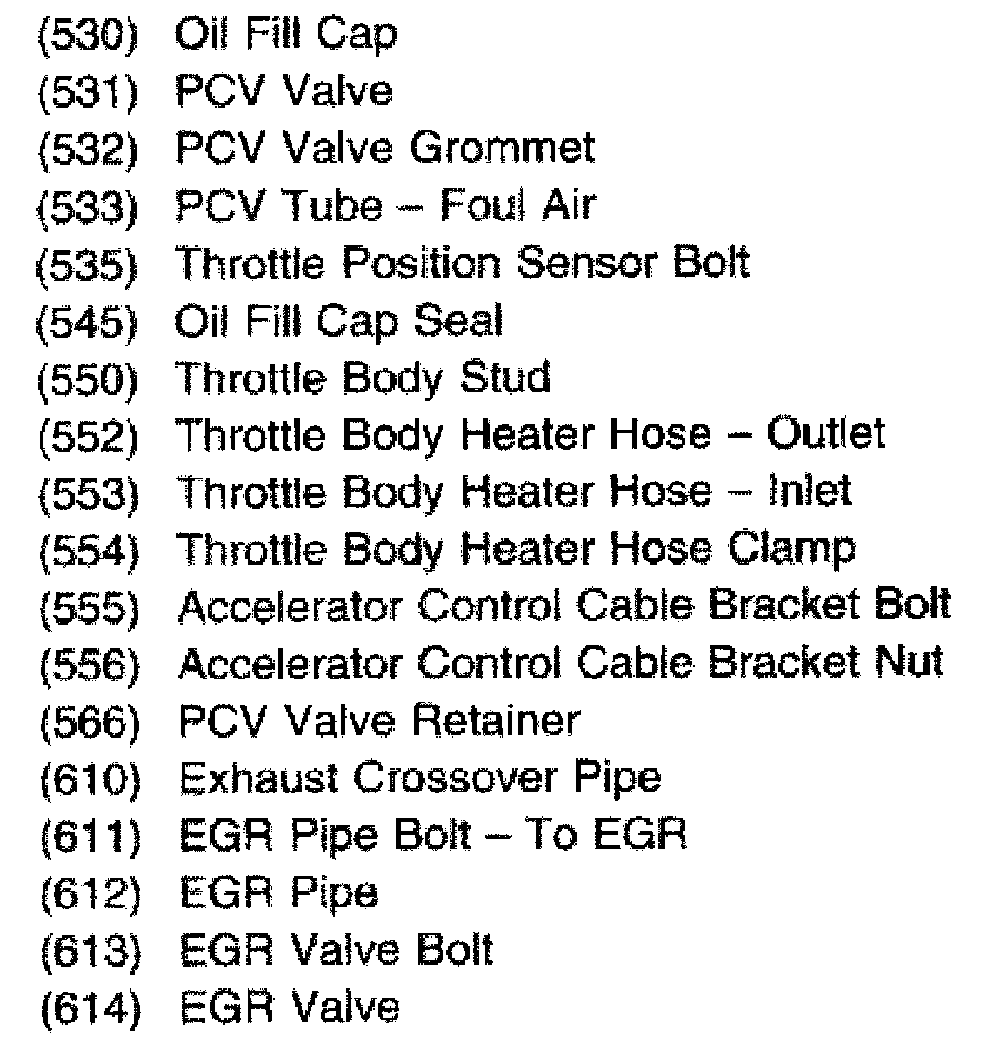

Part 1 Of 2:

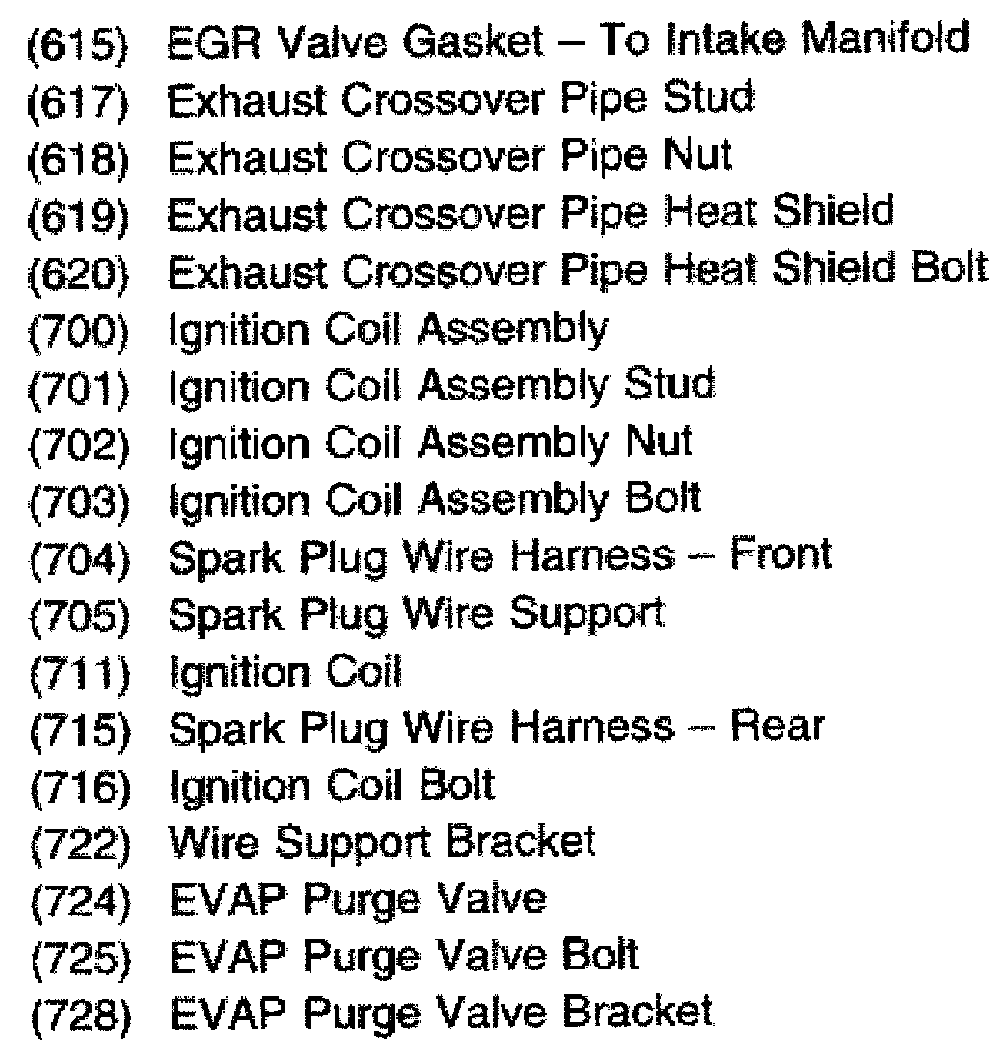

Part 2 Of 3:



Part 3 Of 3:
