Locations
>>
Engine Controls Components
Engine Controls Components

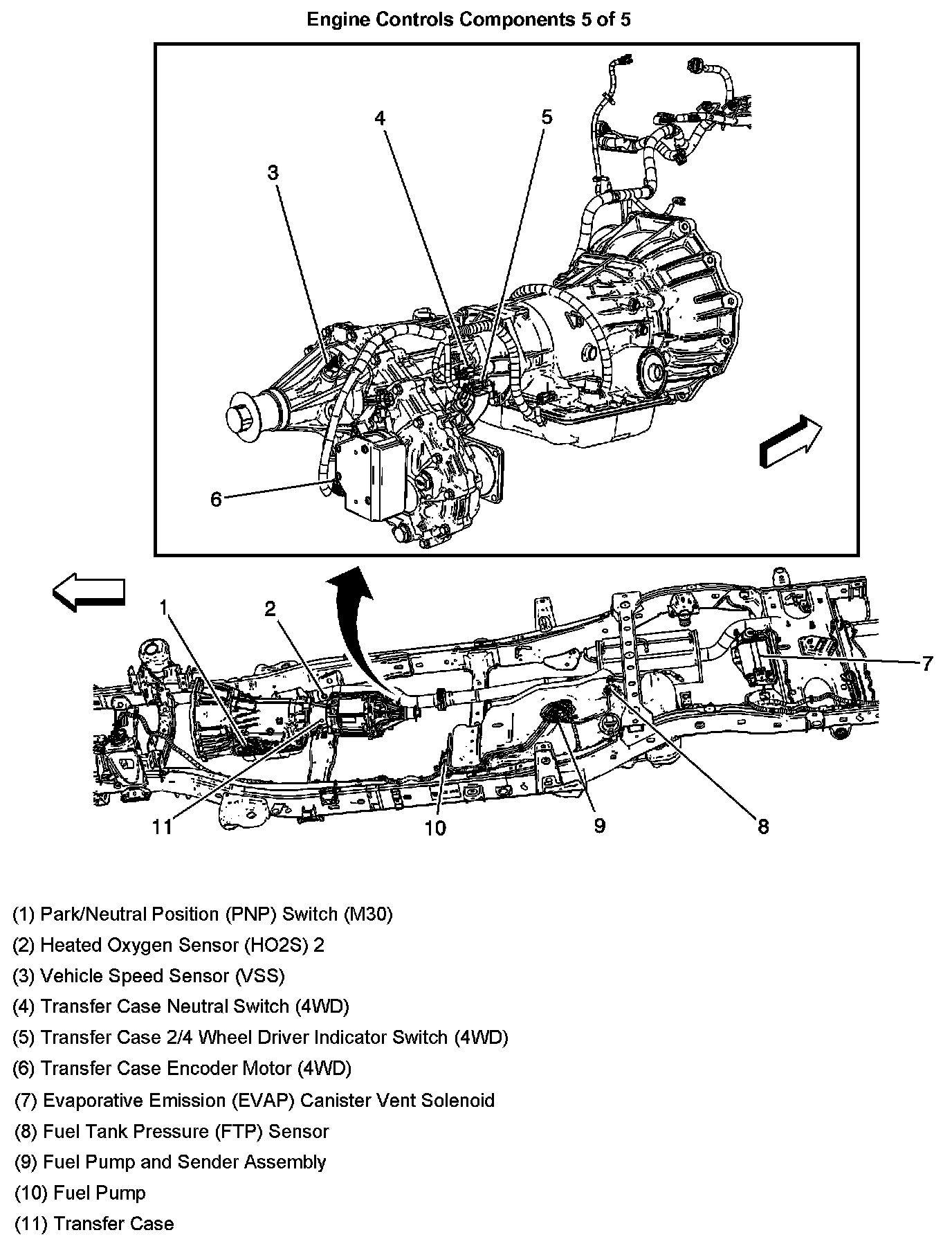

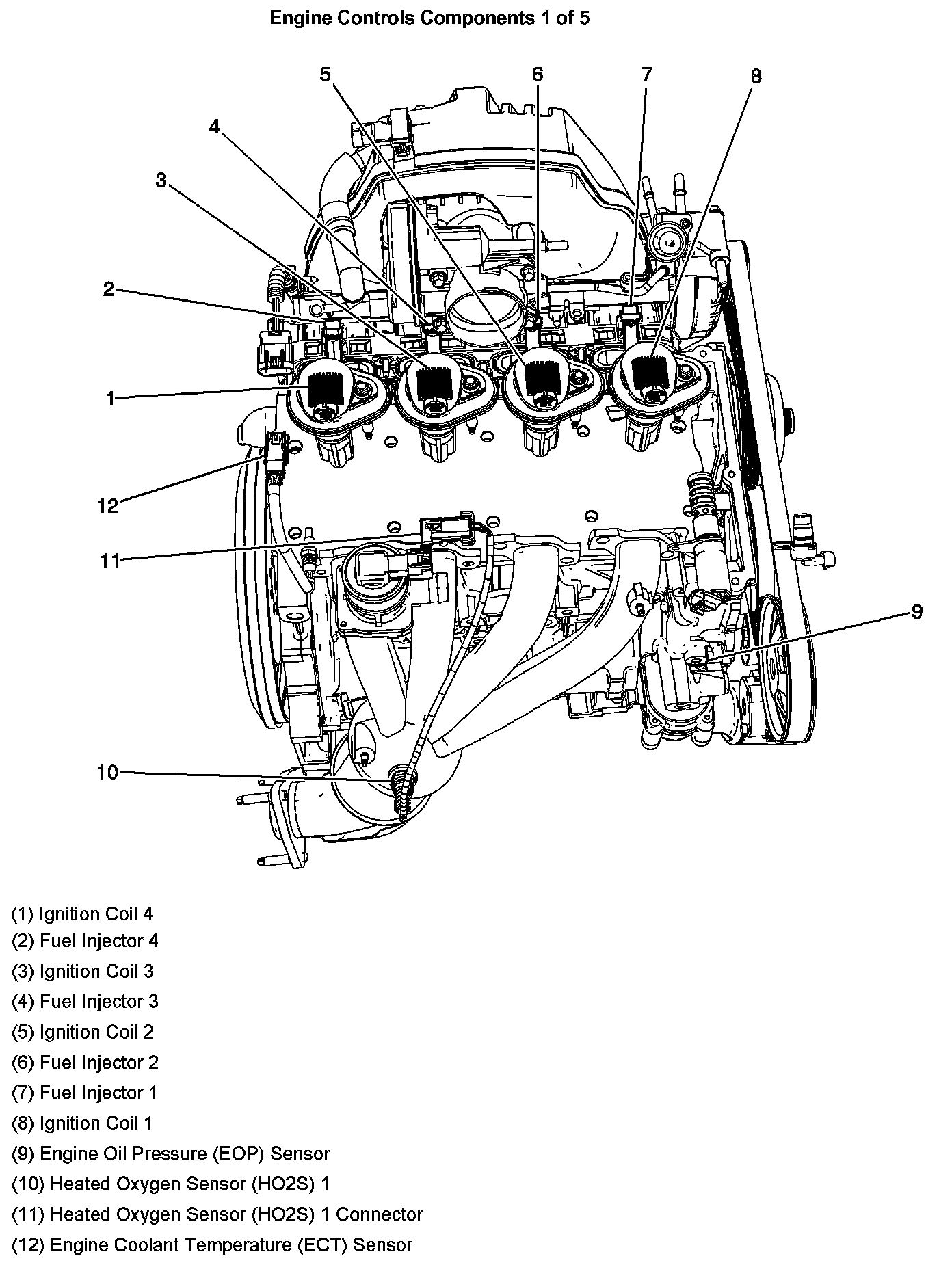

Engine Controls Components:
Engine Controls Components:

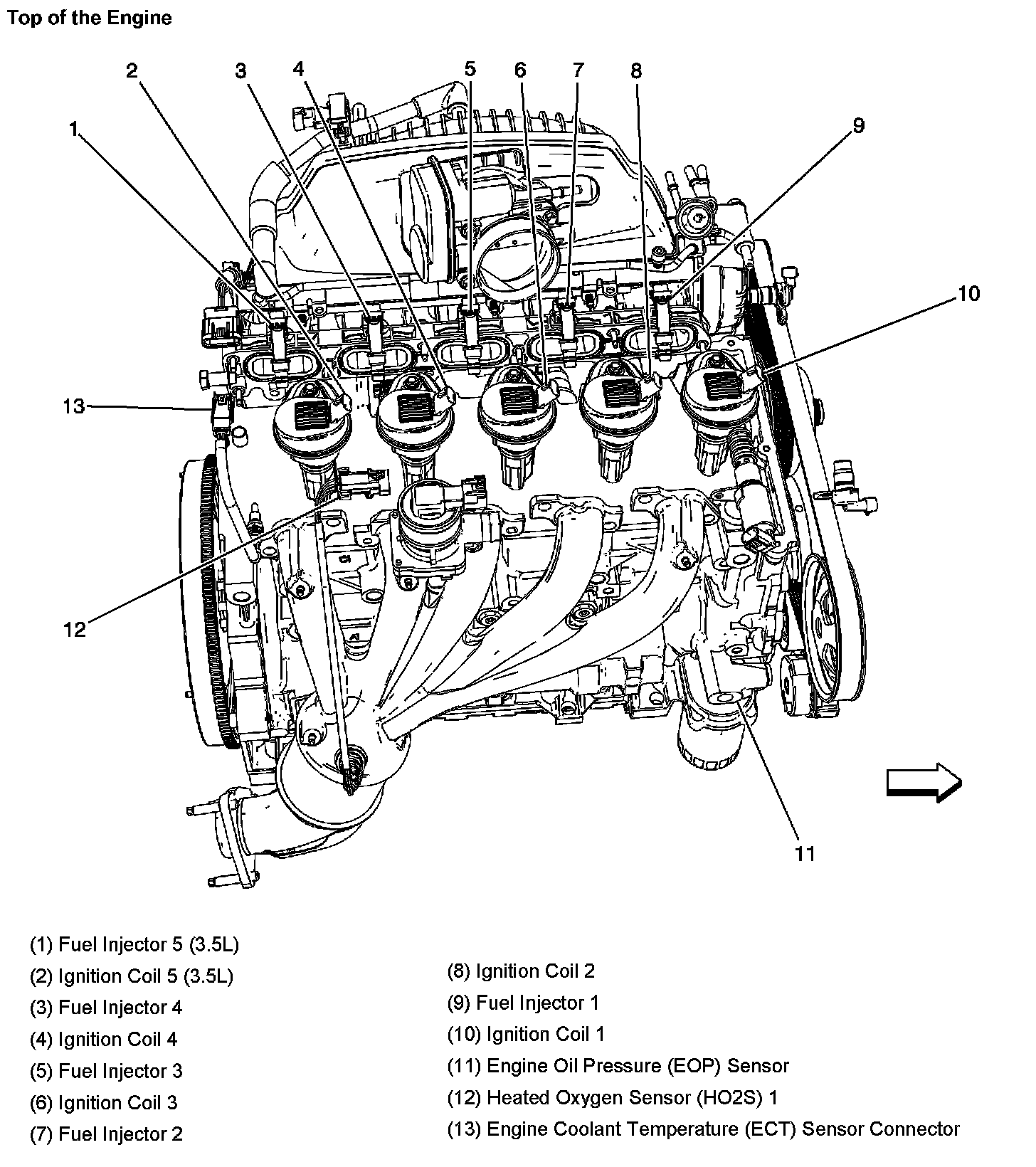

Top Of The Engine:

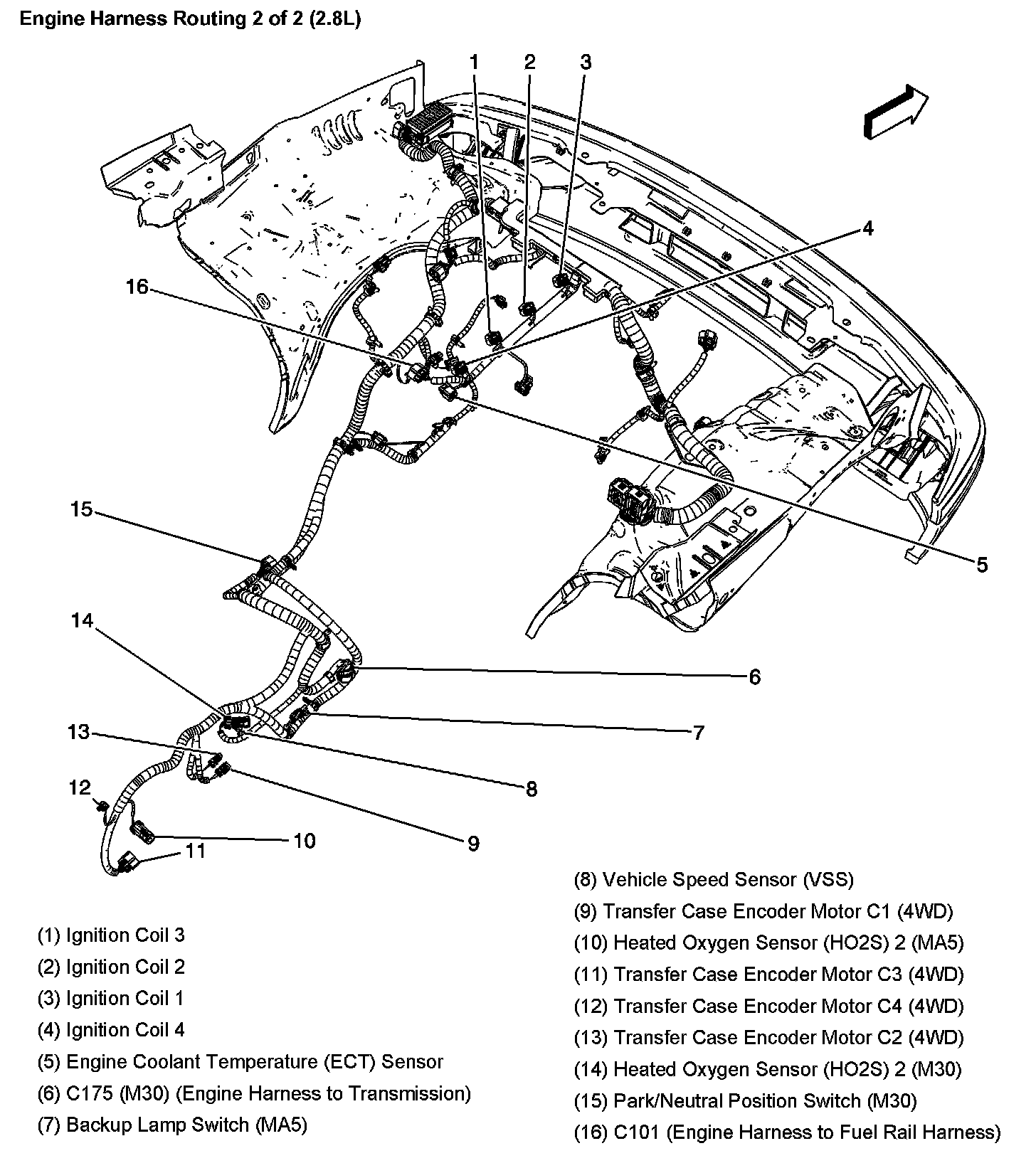

Engine Harness Routing (2.8L) Part 2:
