Home >> Chevrolet >> 2004 >> Colorado 2WD L4-2.8L VIN 8 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

Engine Controls Components:

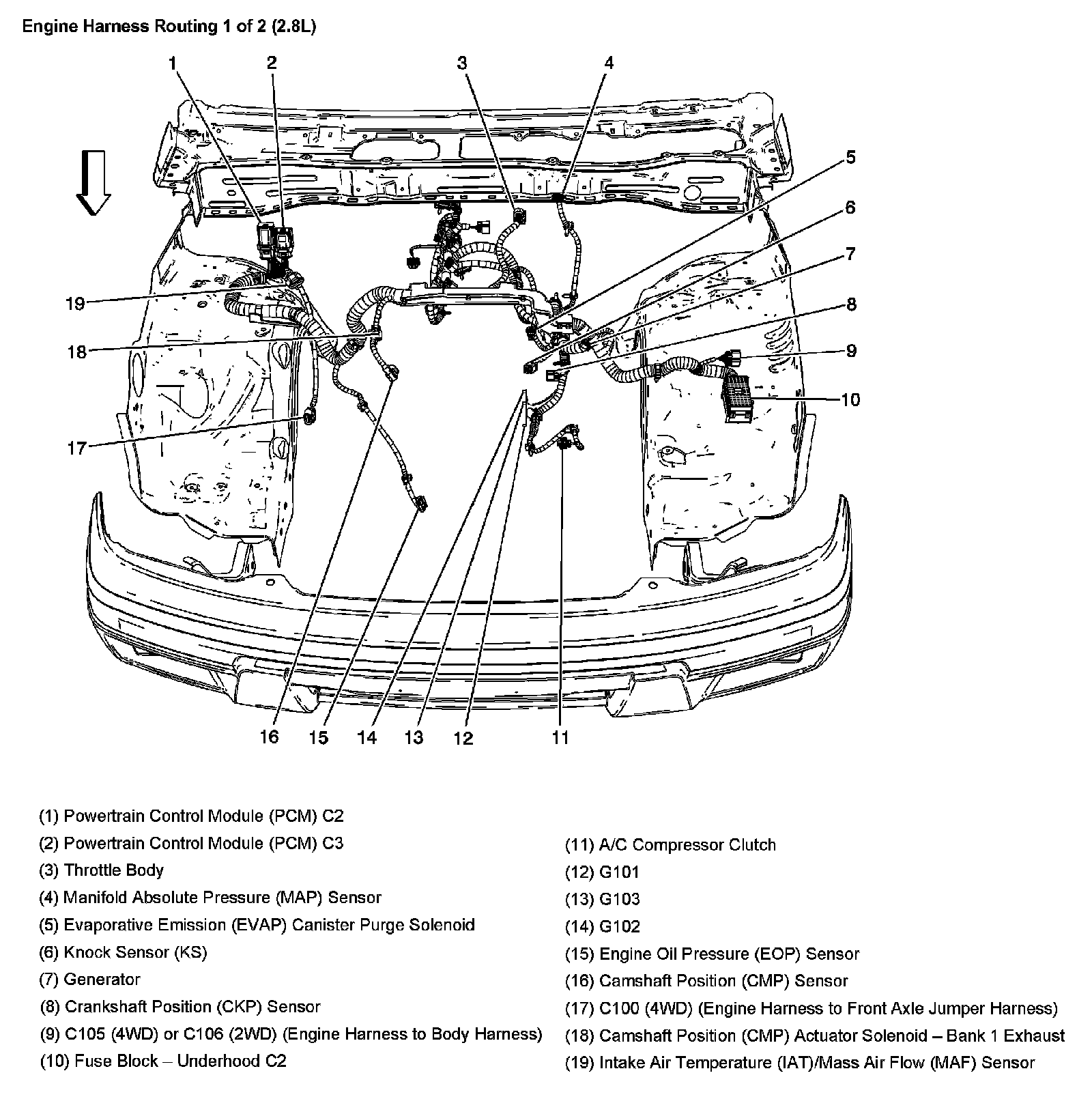

Engine Harness Routing Part 1:
