Home >> Chevrolet >> 2004 >> Colorado 2WD L4-2.8L VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module (PCM) C1

Powertrain Control Module (PCM) C1

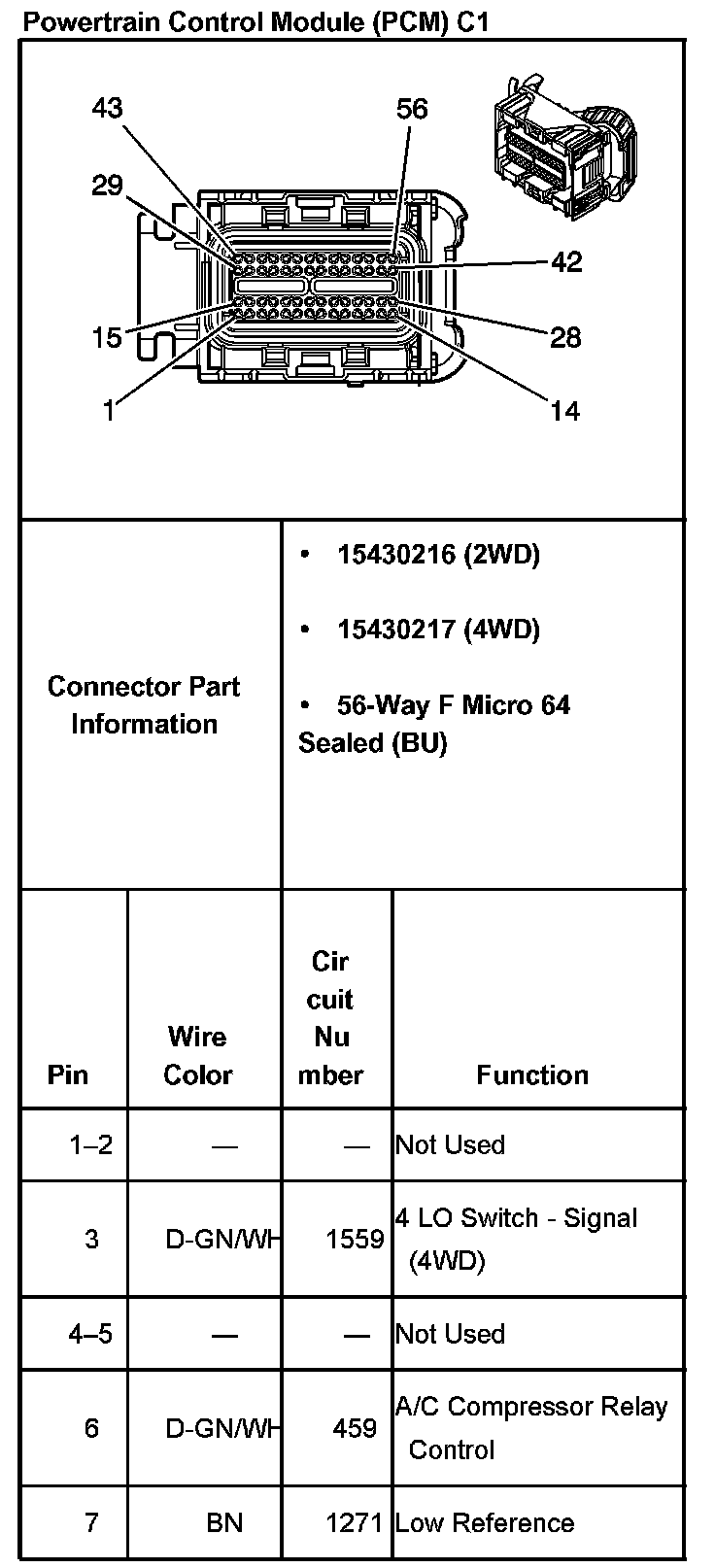

Powertrain Control Module (PCM) C1 Part 1:



Powertrain Control Module (PCM) C1 Part 2:



Powertrain Control Module (PCM) C1 Part 3:



Powertrain Control Module (PCM) C1 Part 4:
