Home >> Chevrolet >> 2004 >> Colorado 2WD L4-2.8L VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C1

Body Control Module (BCM) C1

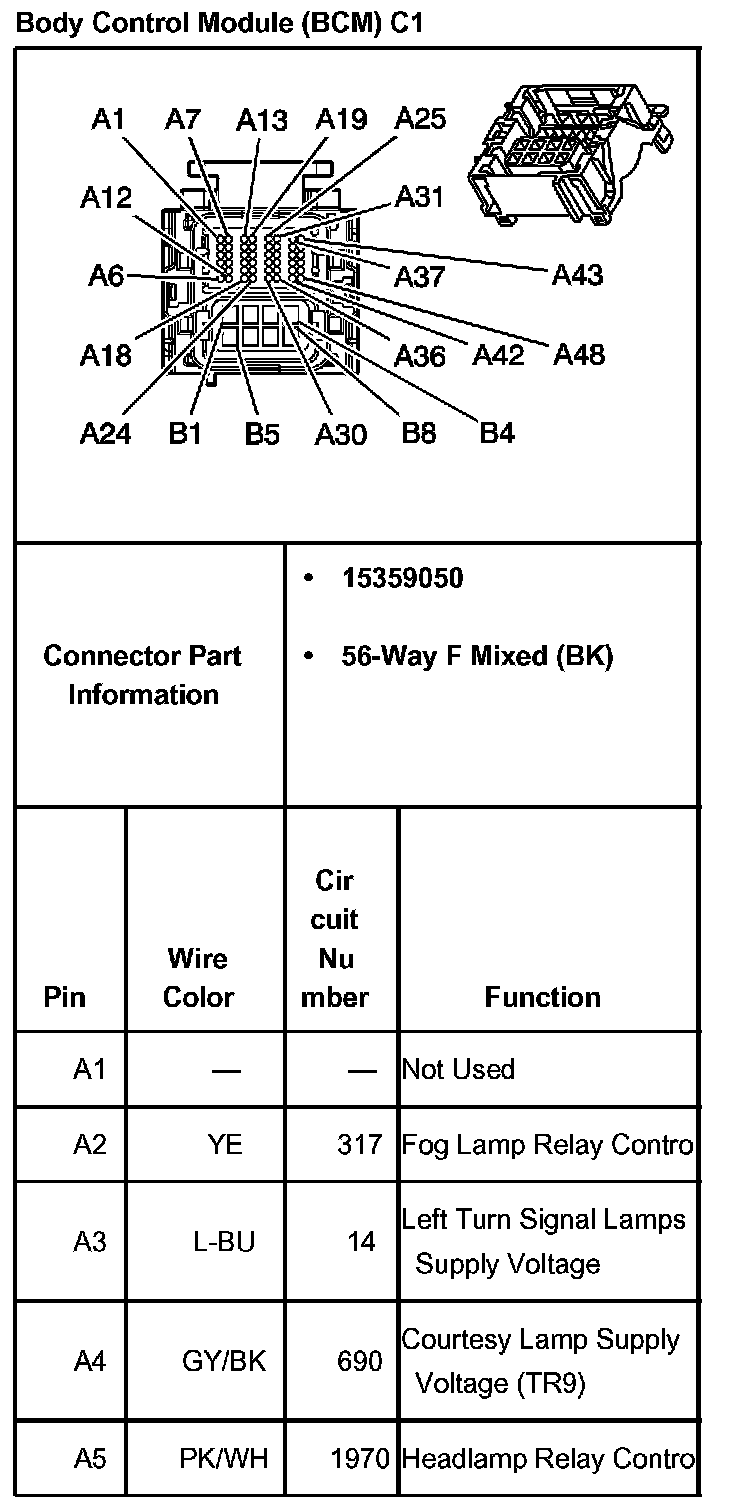

Body Control Module (BCM) C1 Part 1:

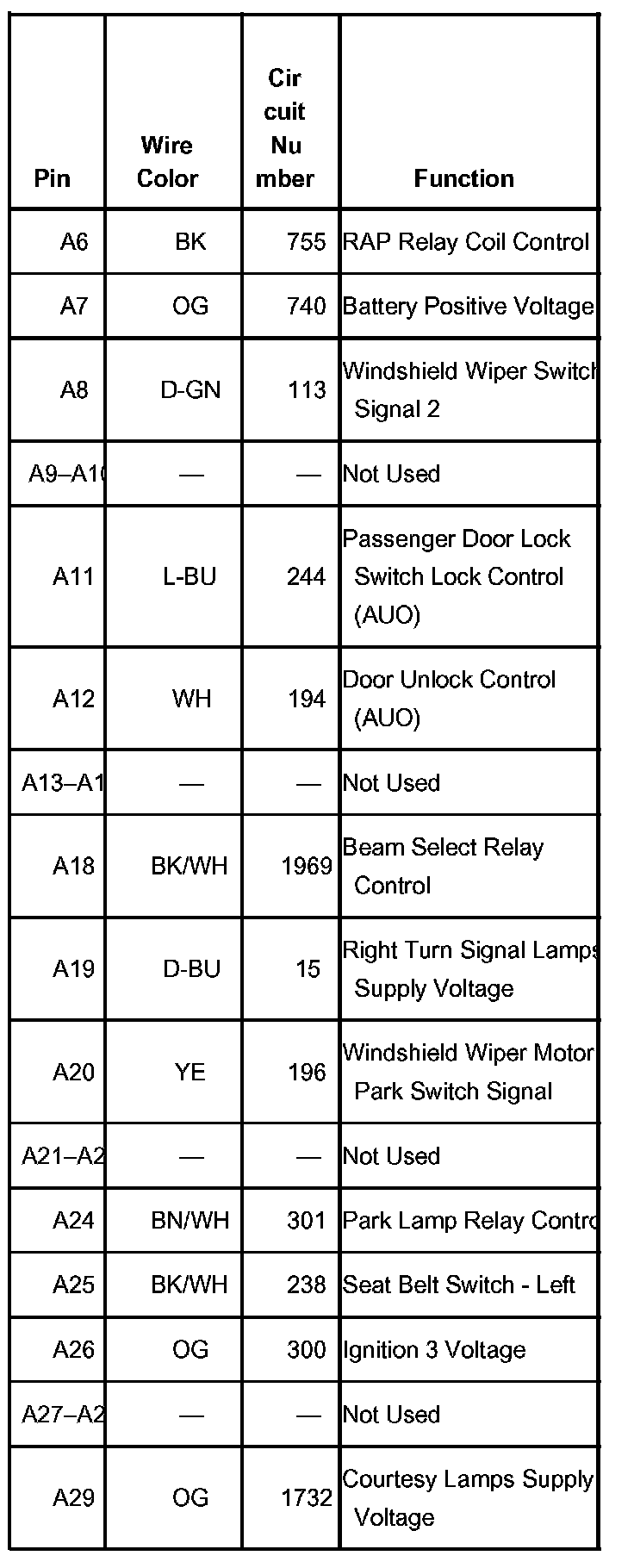

Body Control Module (BCM) C1 Part 2:

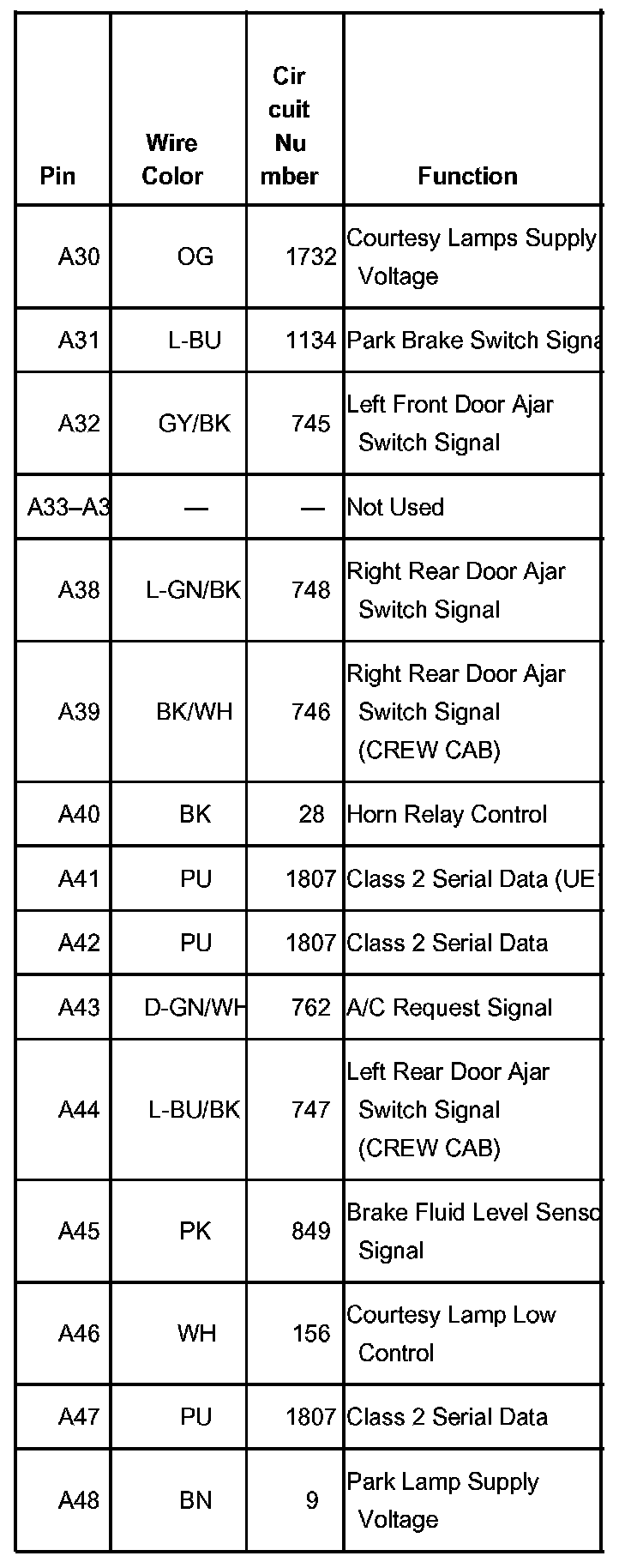

Body Control Module (BCM) C1 Part 3:



Body Control Module (BCM) C1 Part 4:
