Home >> Chevrolet >> 2004 >> Classic L4-2.2L VIN F >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Diagrams

Keyless Entry Receiver: Diagrams

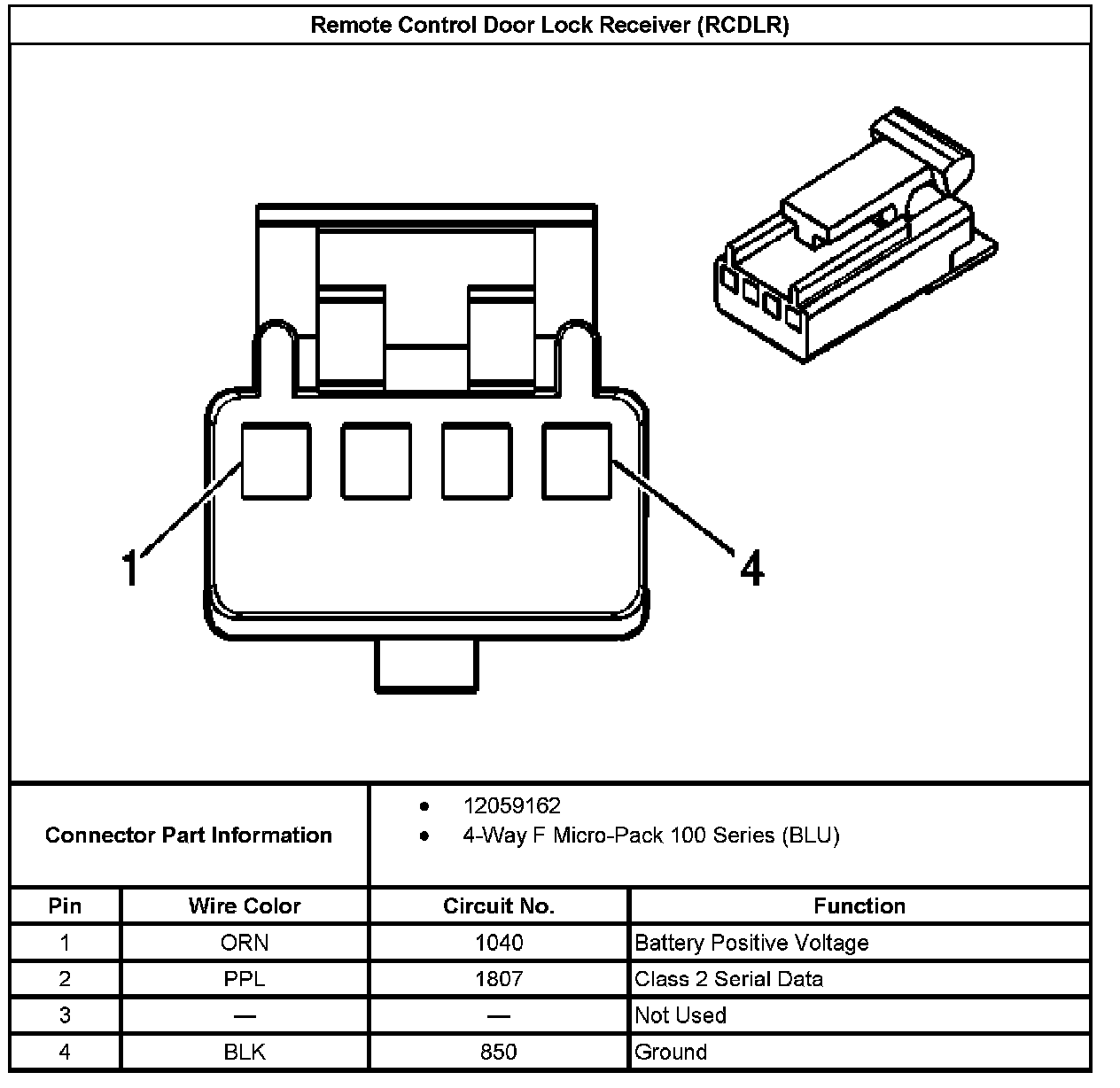

Remote Control Door Lock Receiver (RCDLR):
