System Specifications

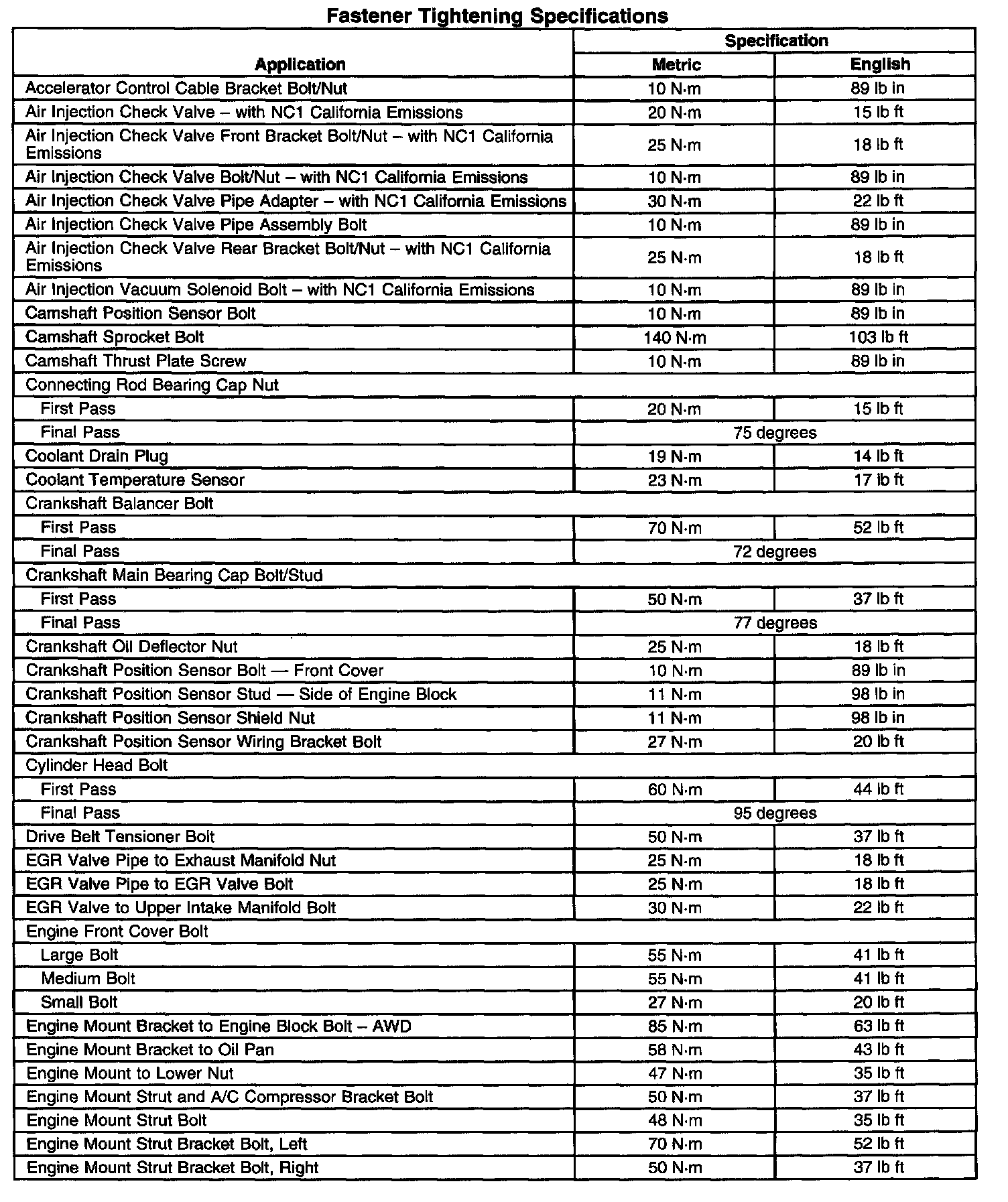

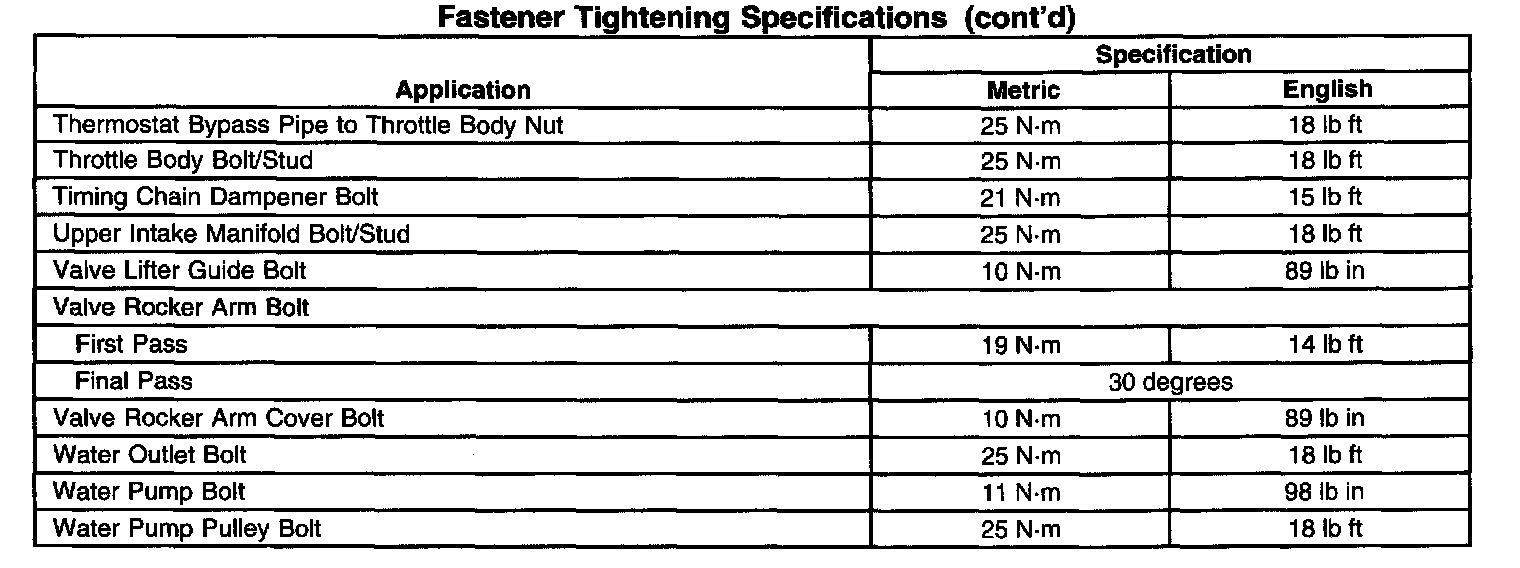

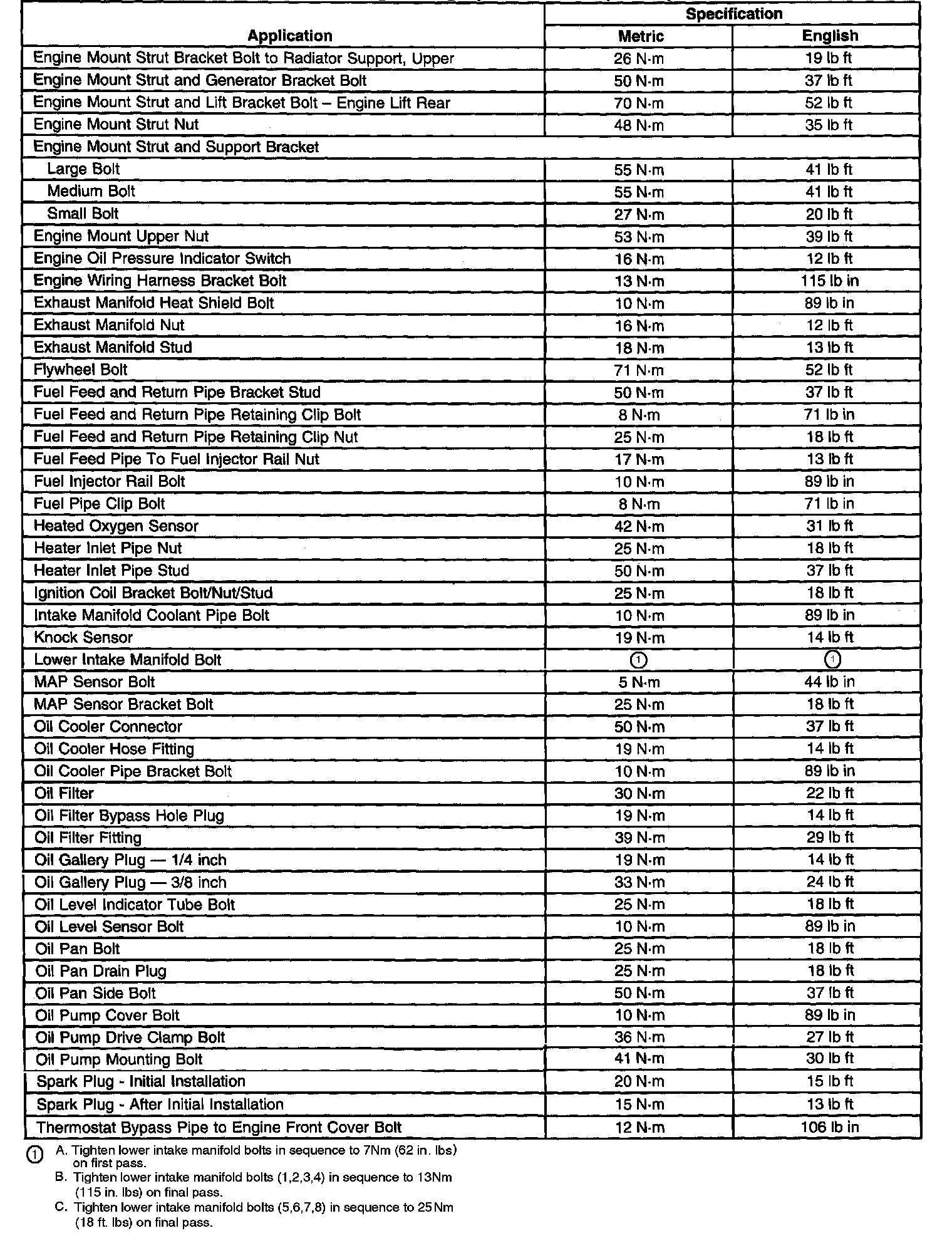

Fastener Tightening Specifications















General/Overhaul

Engine Mechanical Specifications













General/Overhaul

Tightening Sequence

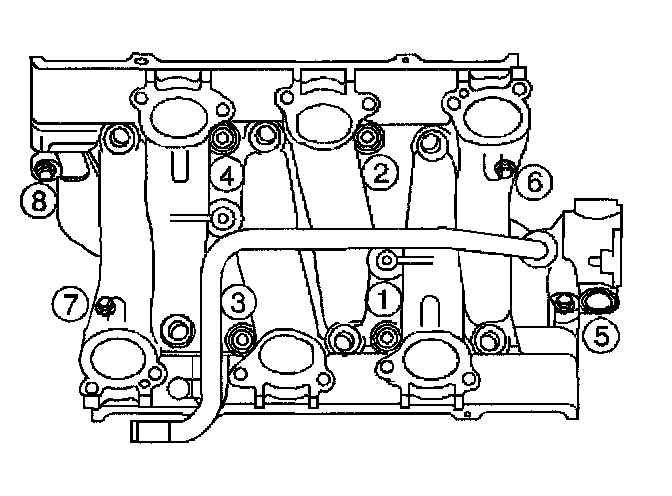

Lower Intake Manifold
Refer to the Lower Intake Manifold.





Cylinder Head
Refer to the Cylinder Head
