Home >> Chevrolet >> 2003 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Relays and Modules - Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

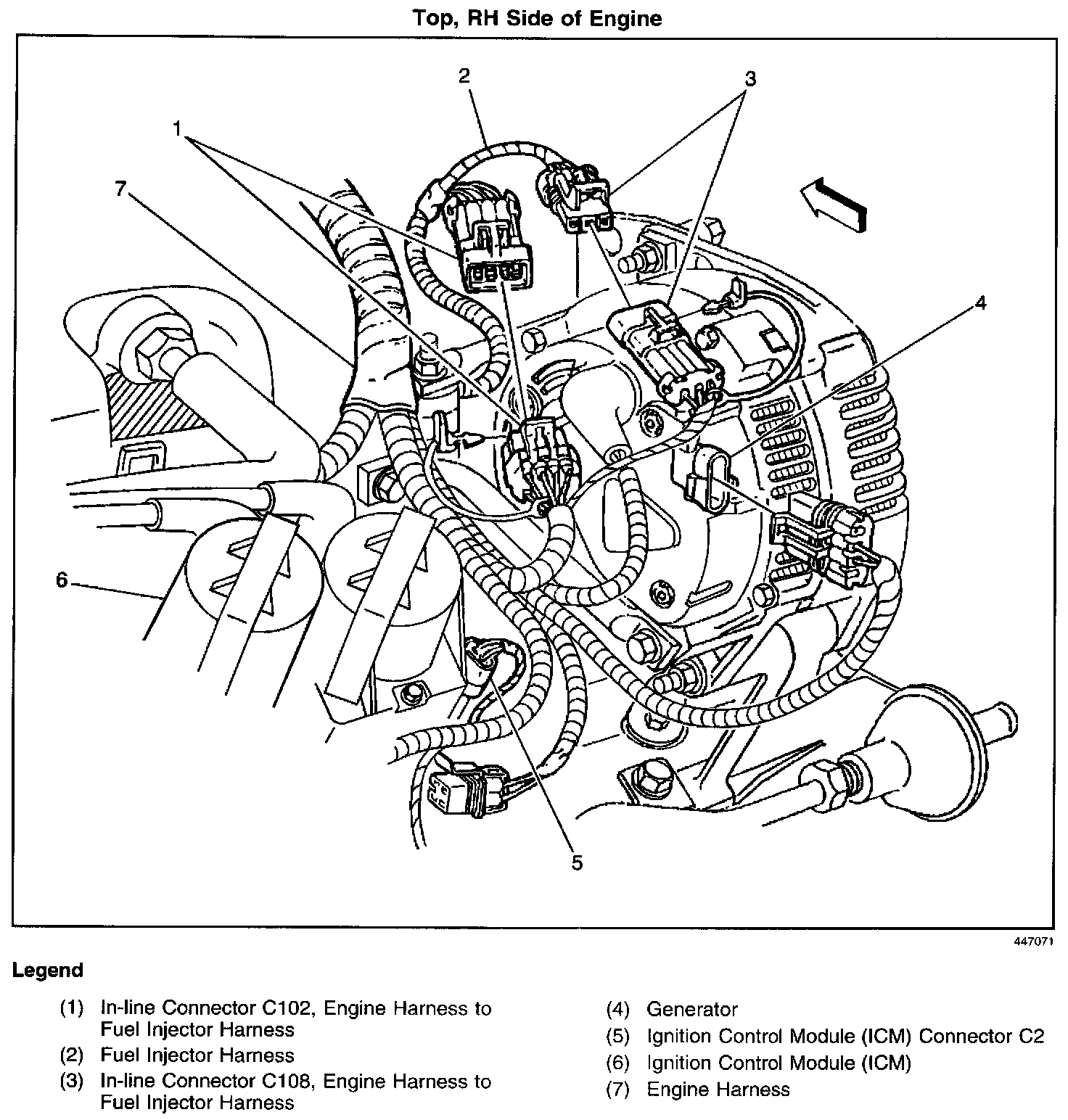

Locations View:

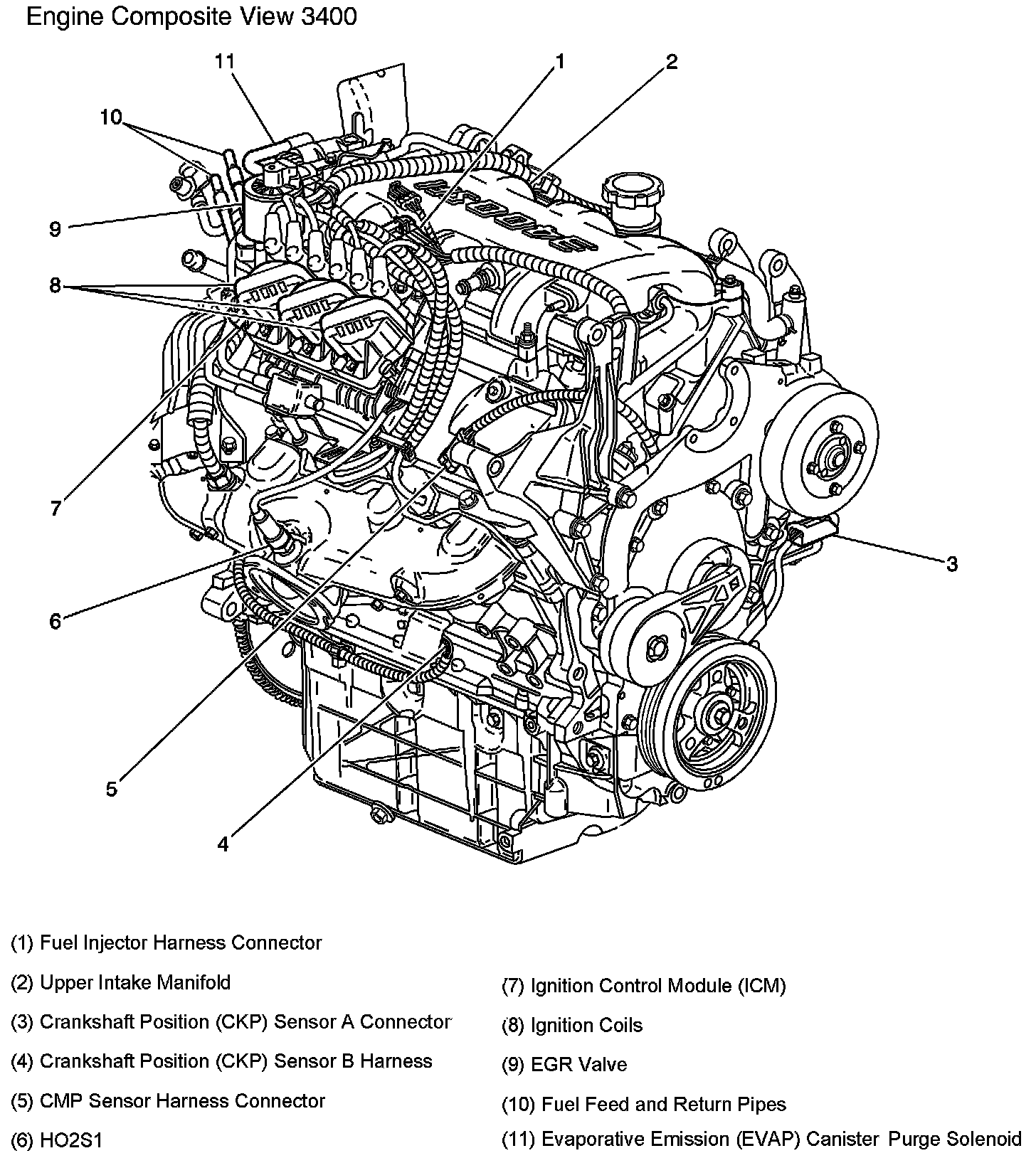

Engine Composite View 3400:
