Internal Components

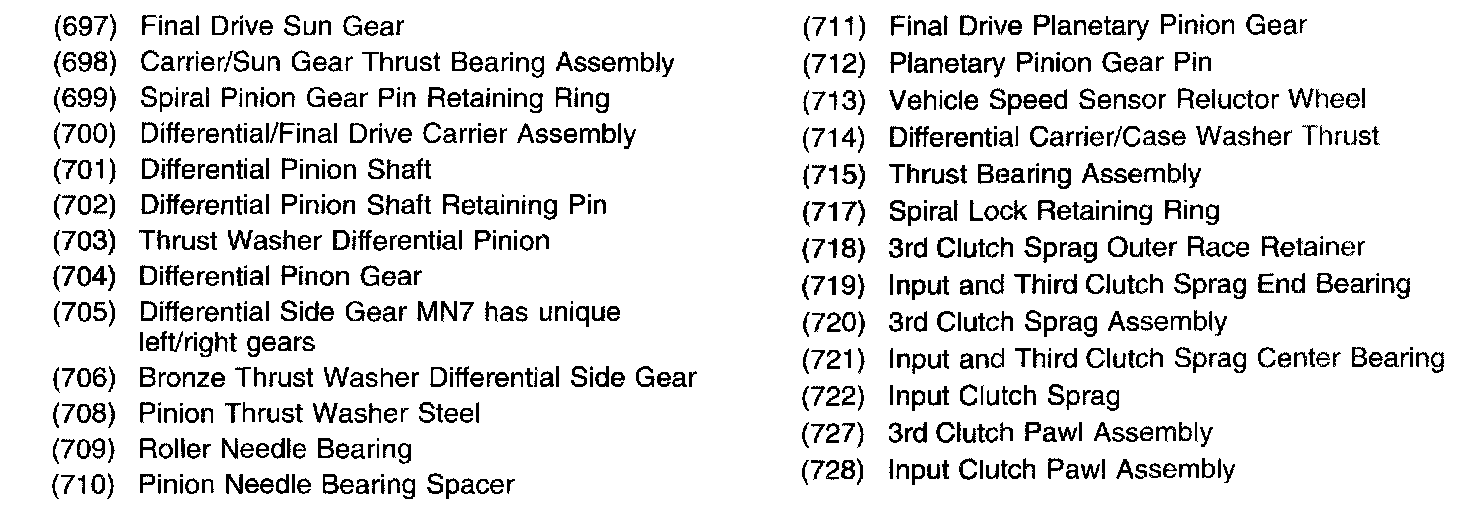

Internal Components (1 of 4):

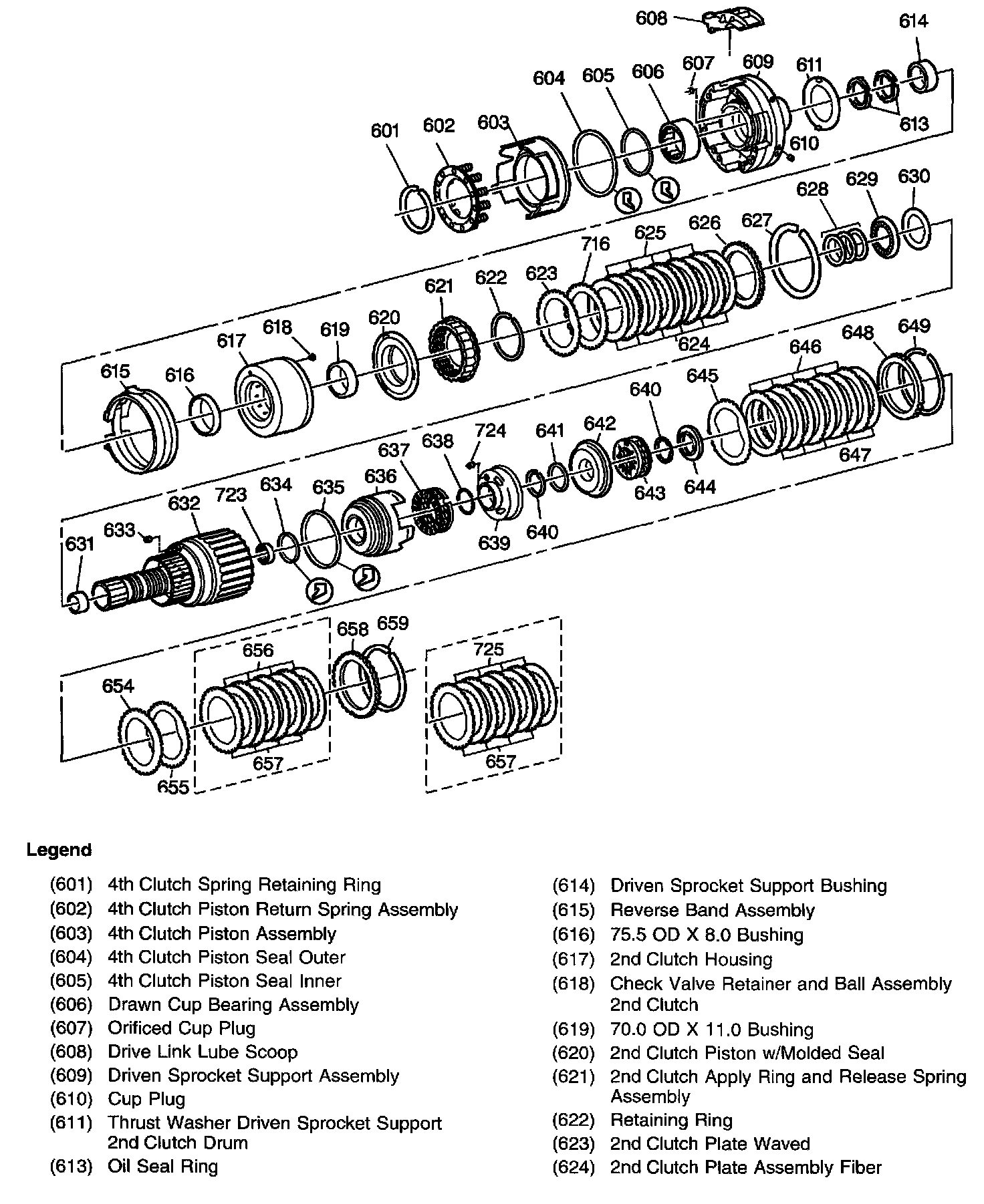

Internal Components (2 of 4):

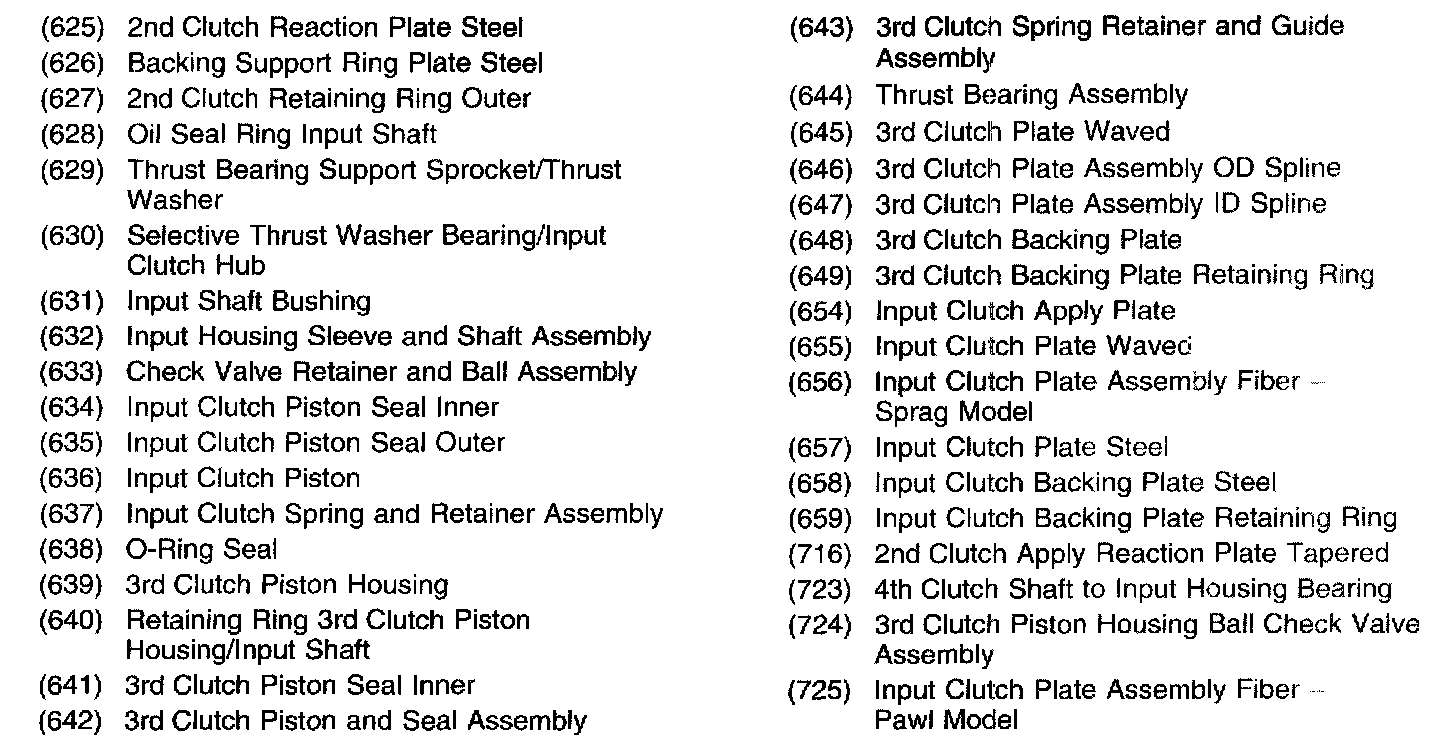

Internal Components (3 of 4):

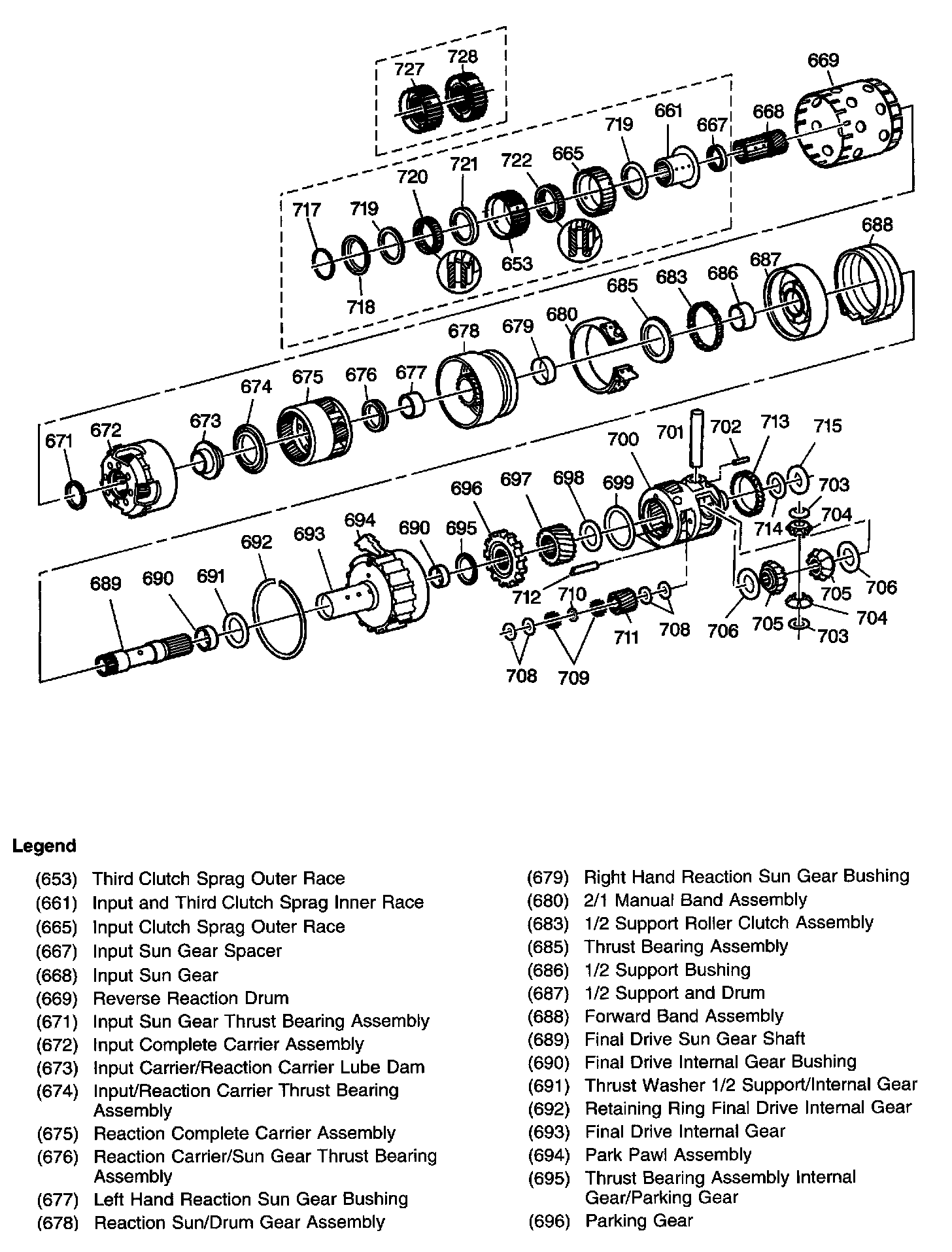

Internal Components (4 of 4):
