Home >> Chevrolet >> 2003 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module

Ignition Control Module

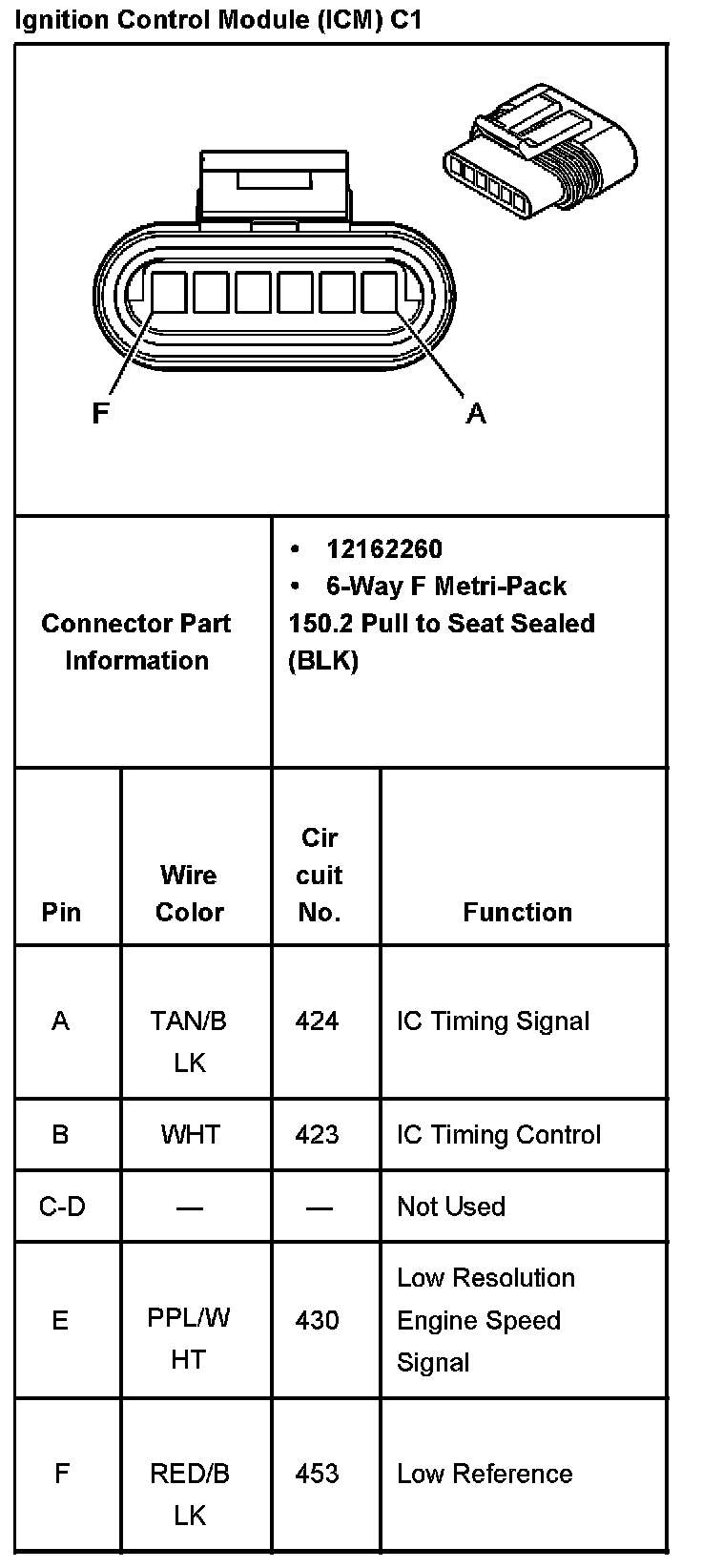

Ignition Control Module (ICM) C1:

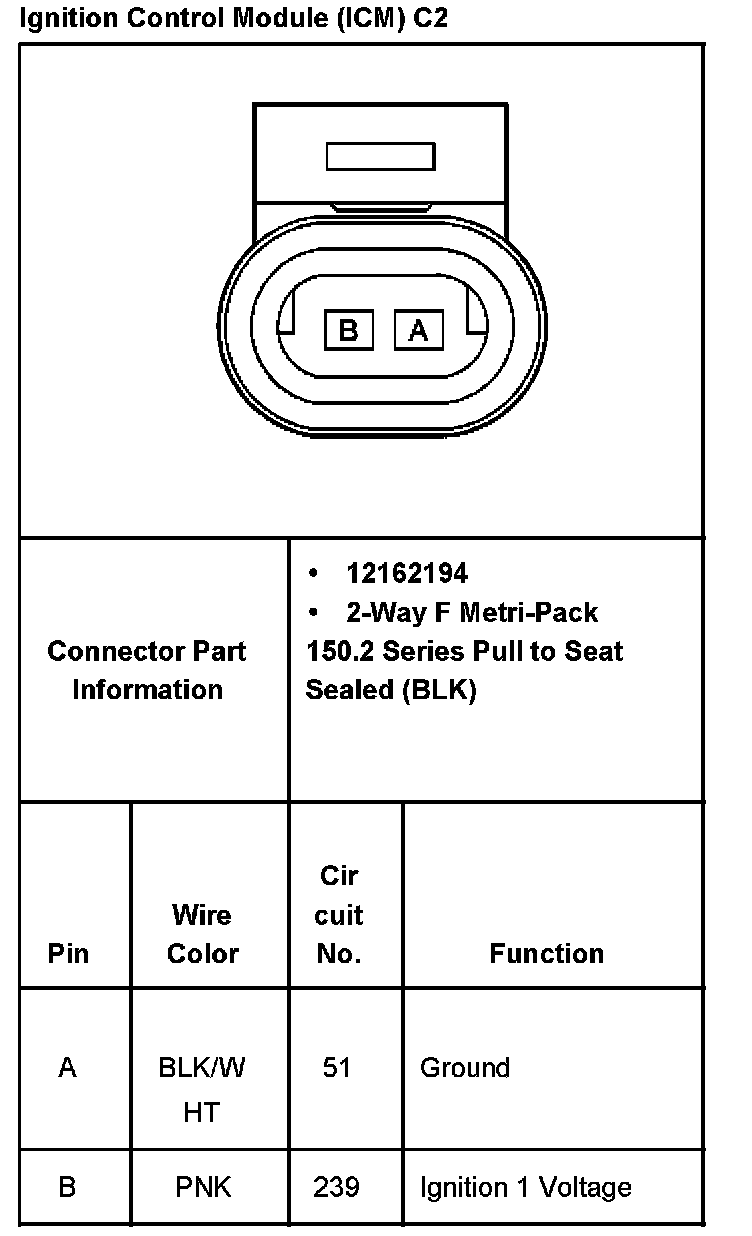

Ignition Control Module (ICM) C2:

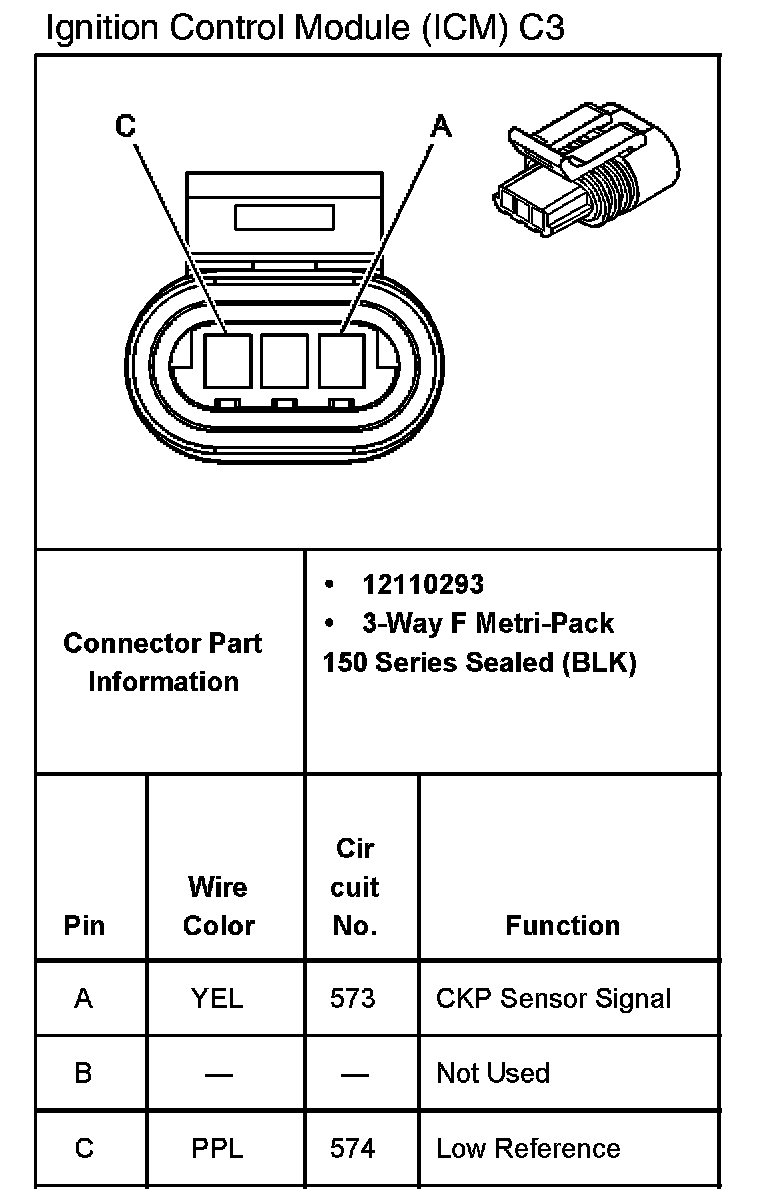

Ignition Control Module (ICM) C3:
