Air Bag Control Module
Air Bag Control Module

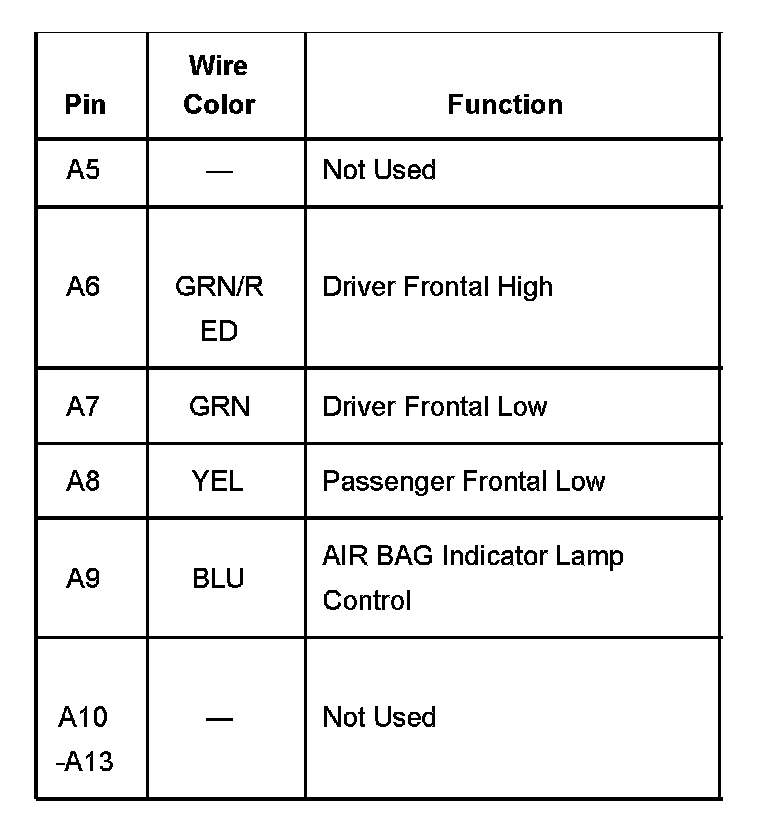

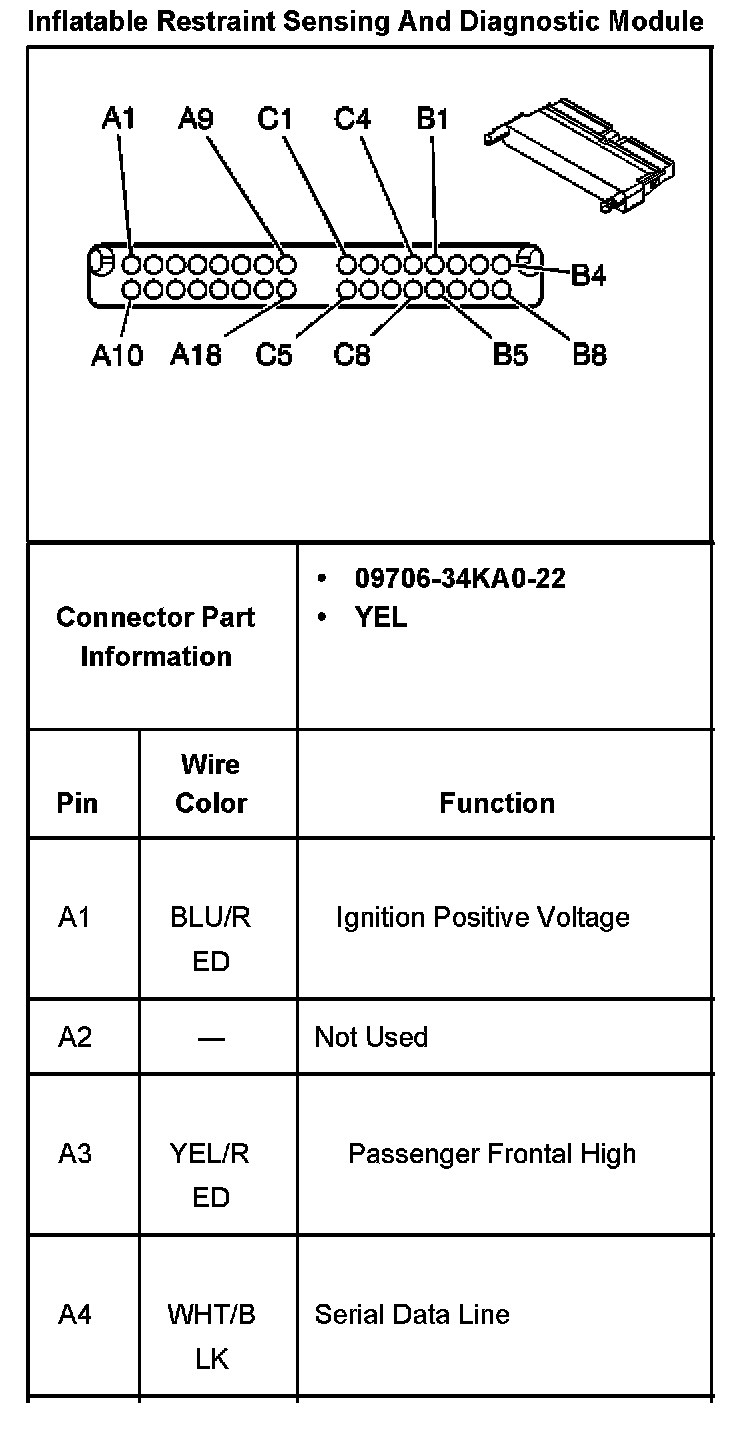

Inflatable Restraint Sensing And Diagnostic Module Part 1:
Inflatable Restraint Sensing And Diagnostic Module Part 2:
Inflatable Restraint Sensing And Diagnostic Module Part 3:
