Intake Manifold

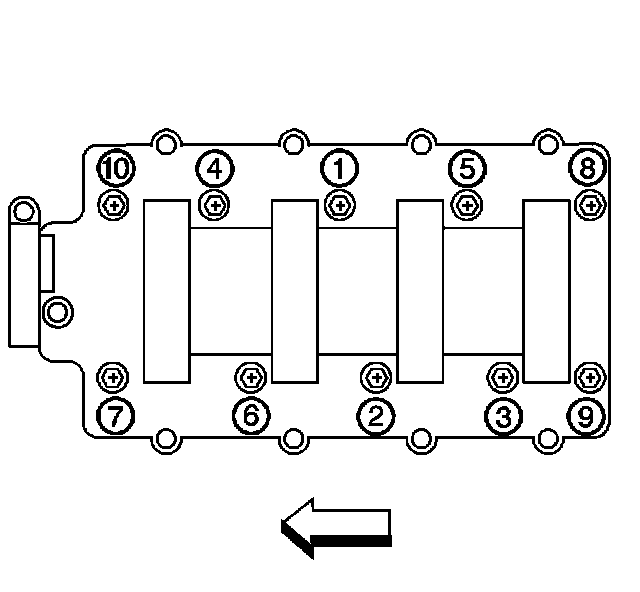

Intake Manifold Bolts - First Pass in Sequence 5 Nm (44 inch lbs.)
Intake Manifold Bolts - Final Pass in Sequence 10 Nm (89 inch lbs.)
Intake Manifold Wiring Harness Stud 10 Nm (89 inch lbs.)
J 42386-A Bolt 50 Nm (37 ft. lbs.)

Throttle Body Nuts 10 Nm (89 inch lbs.)
Throttle Body Studs 6 Nm (53 inch lbs.)
