Ignition Relay: Locations

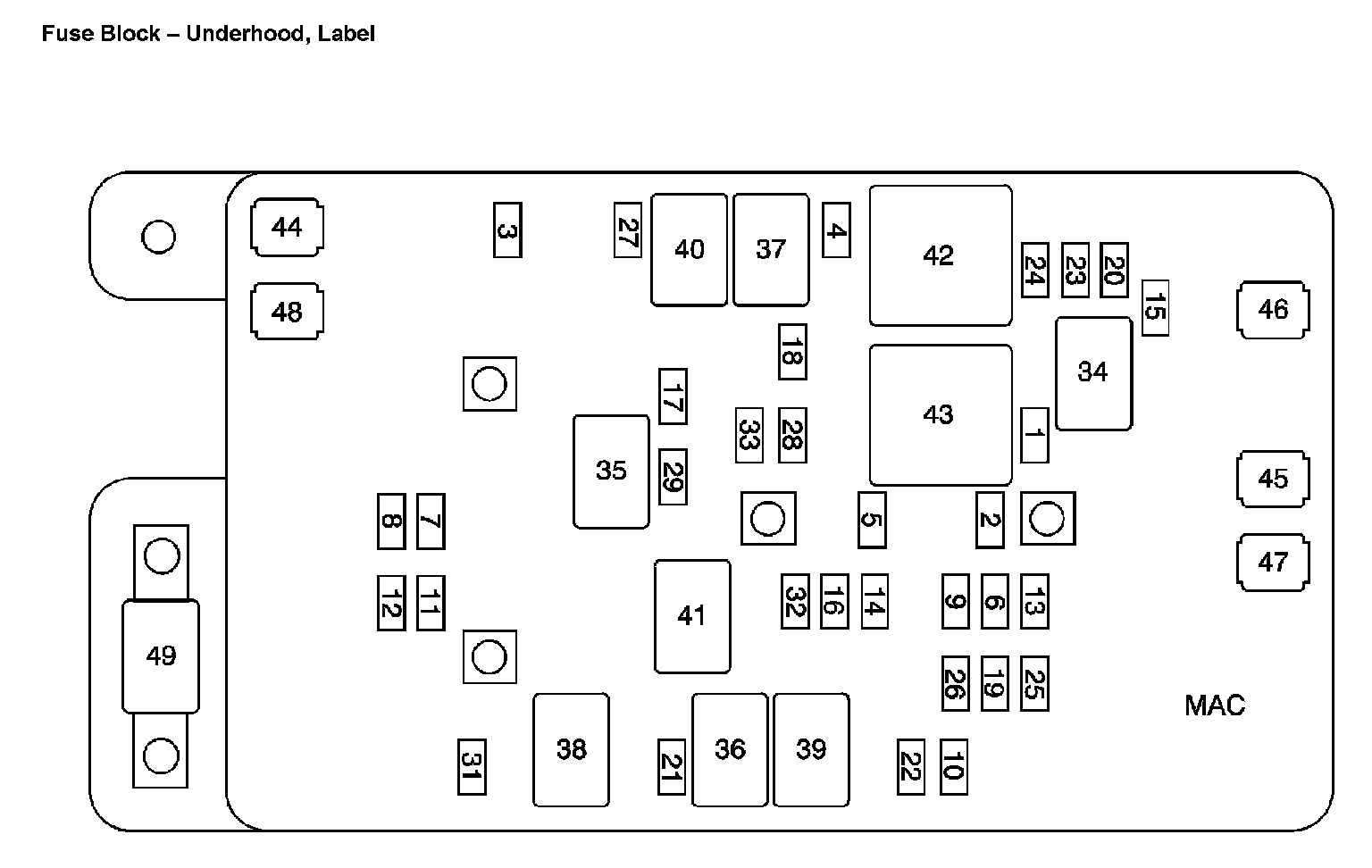

Location View:

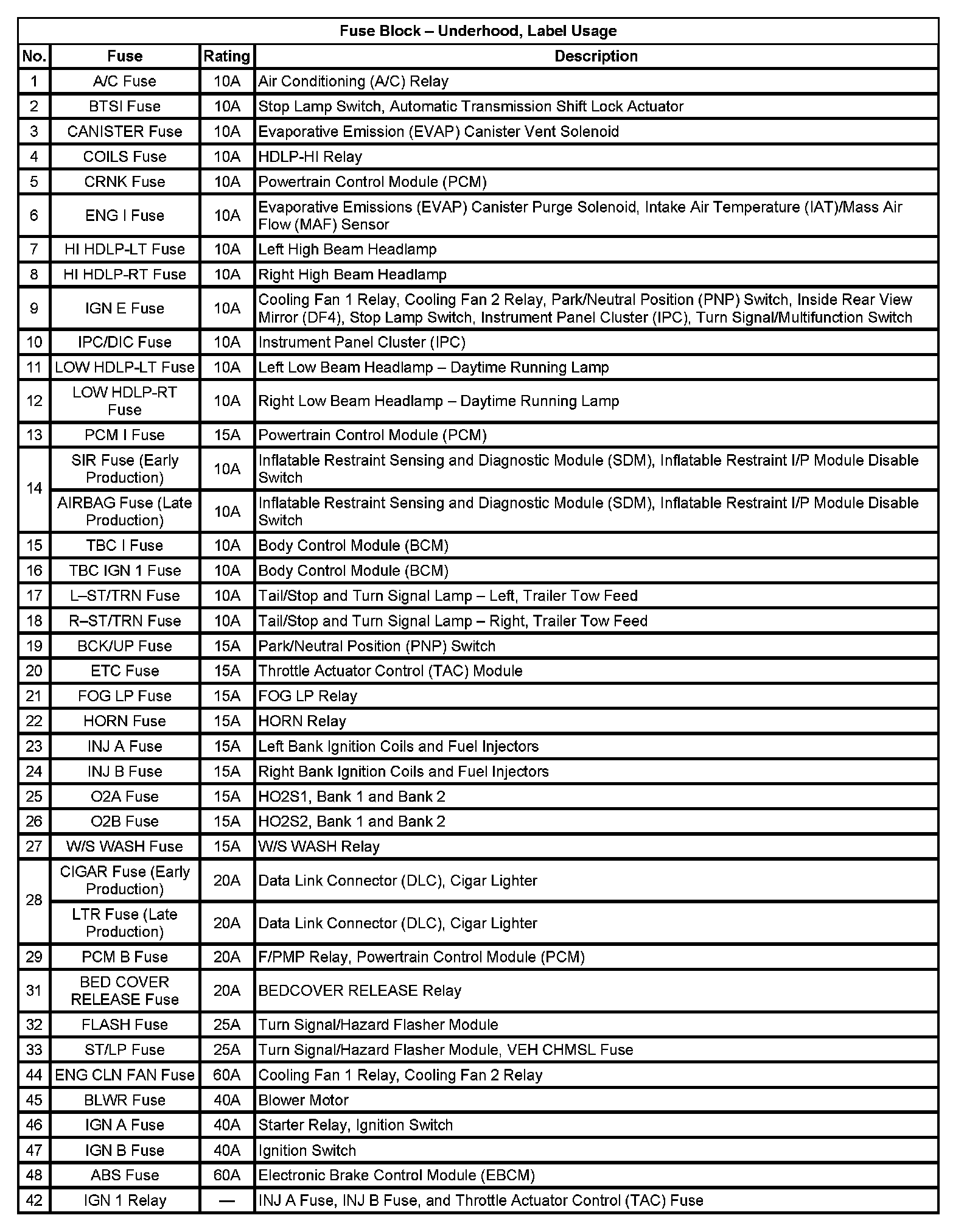

Application Table (Part 1):

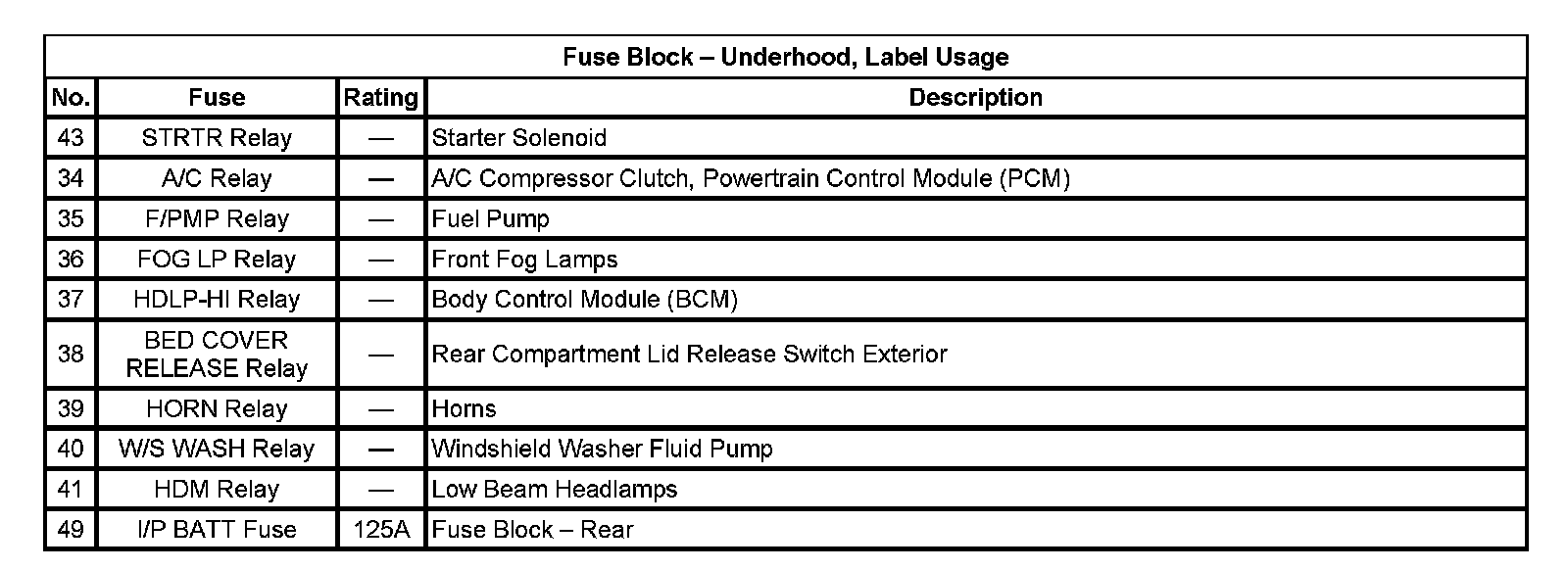

Application Table (Part 2):

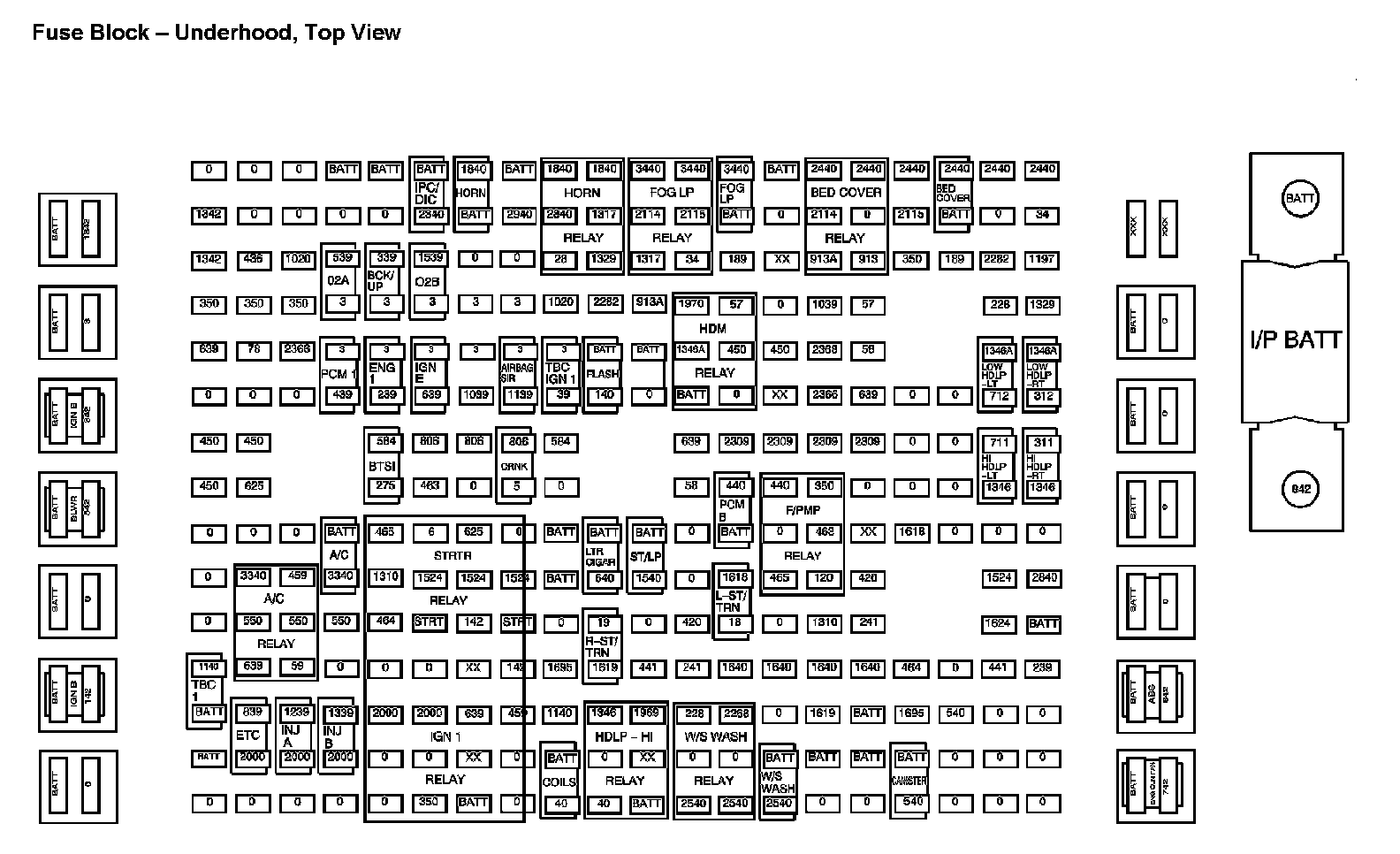

Location View:

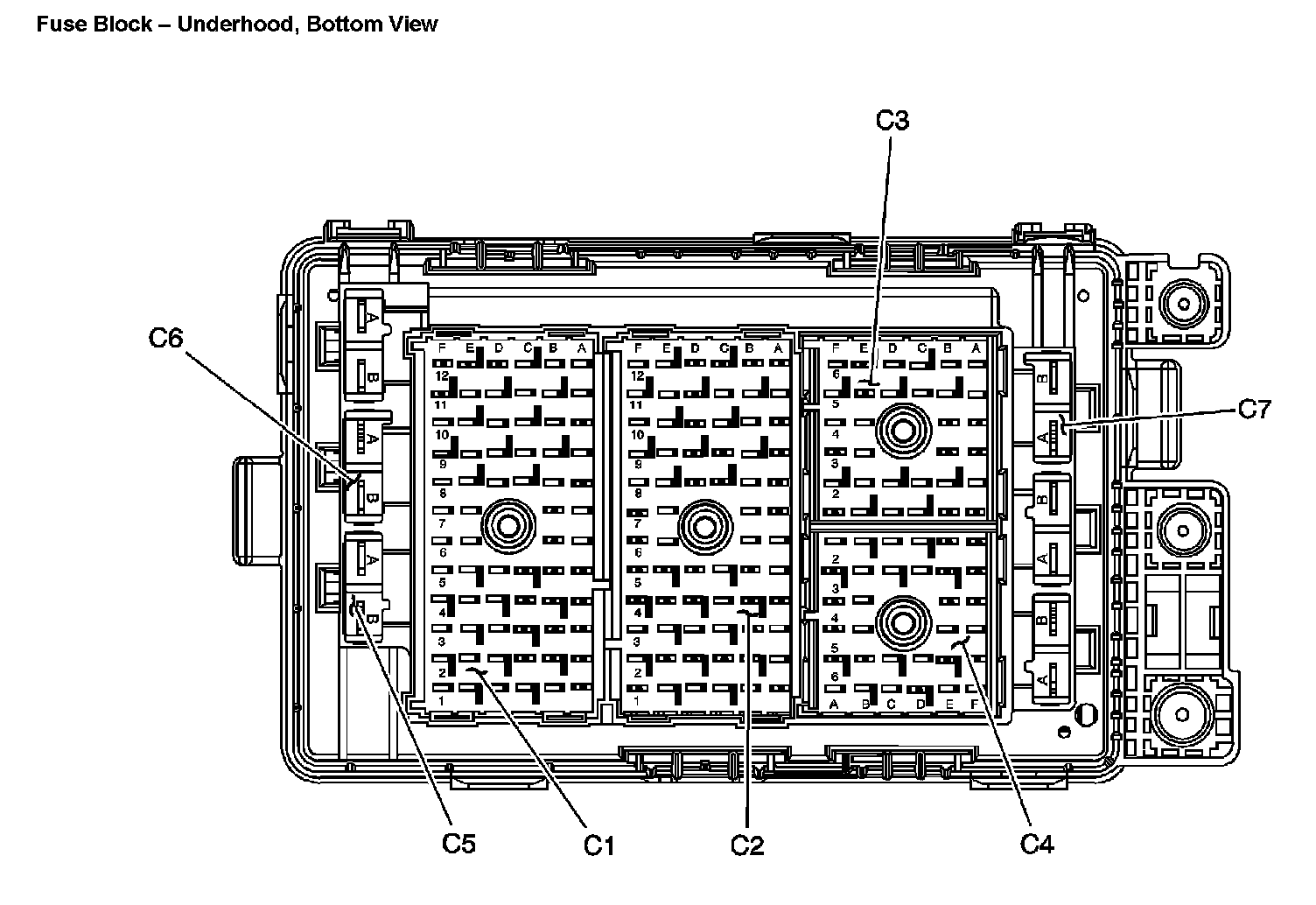

Location View:
