Home >> Chevrolet >> 2003 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Control Module >> Diagrams >> Throttle Actuator Control (TAC) Module C2

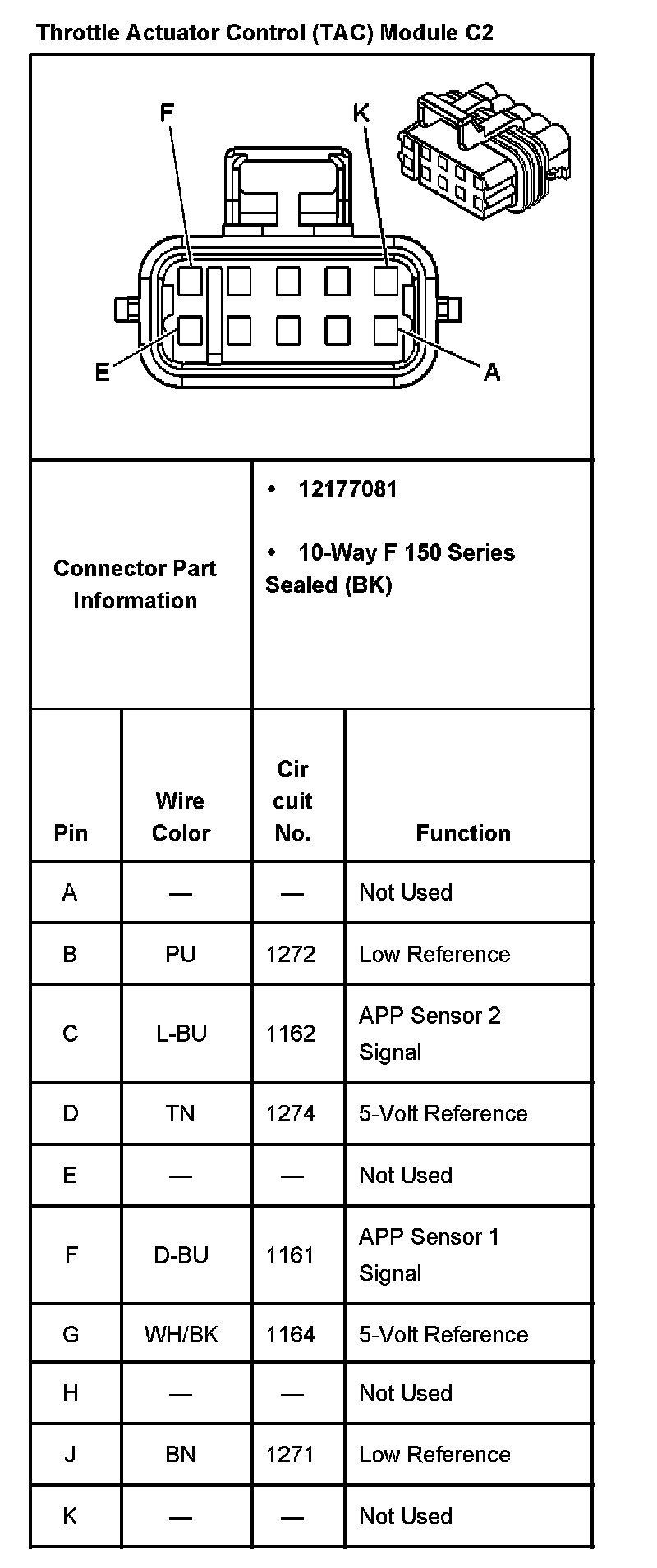

Throttle Actuator Control (TAC) Module C2

Throttle Actuator Control (TAC) Module C2:
