Throttle Actuator Control (TAC) Module C1

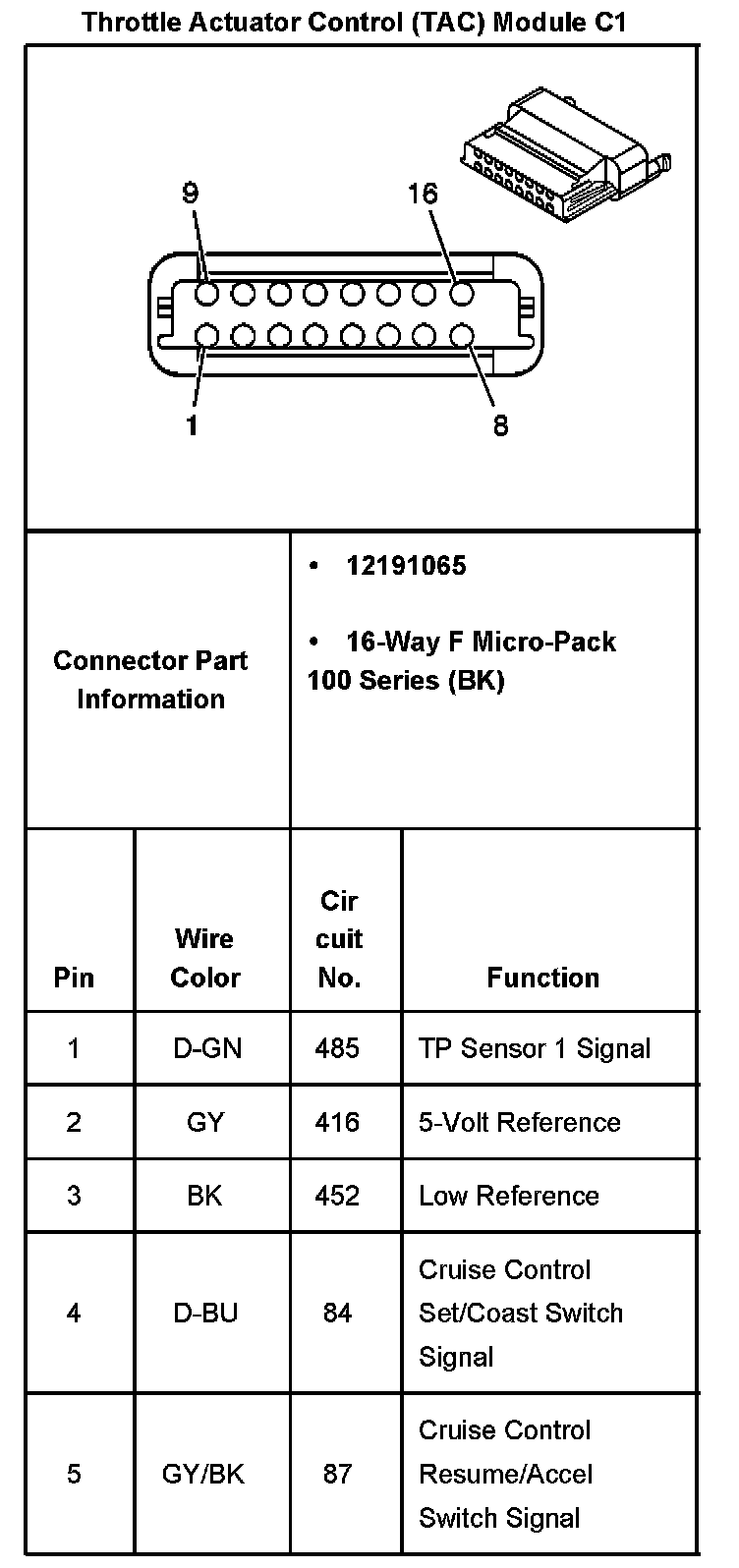

Throttle Actuator Control (TAC) Module C1 Part 1:

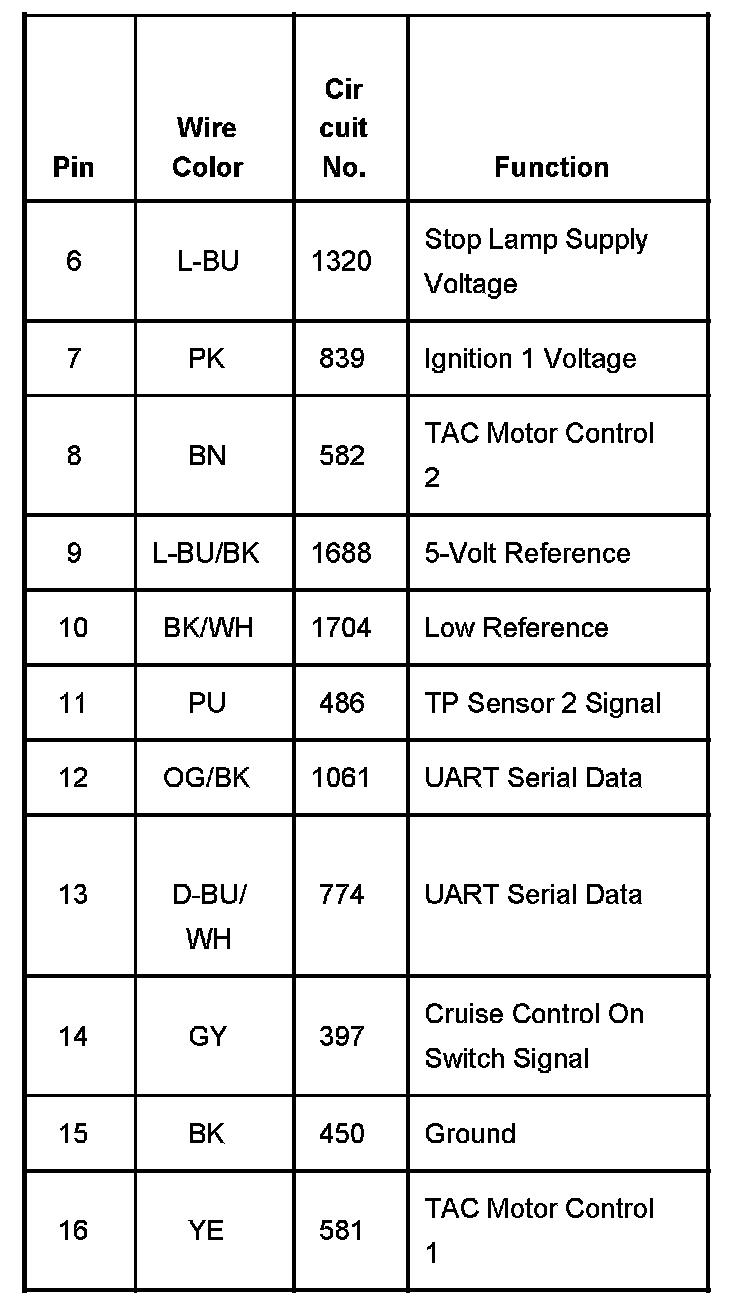

Throttle Actuator Control (TAC) Module C1 Part 2:
