Home >> Chevrolet >> 2003 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module

Door Module

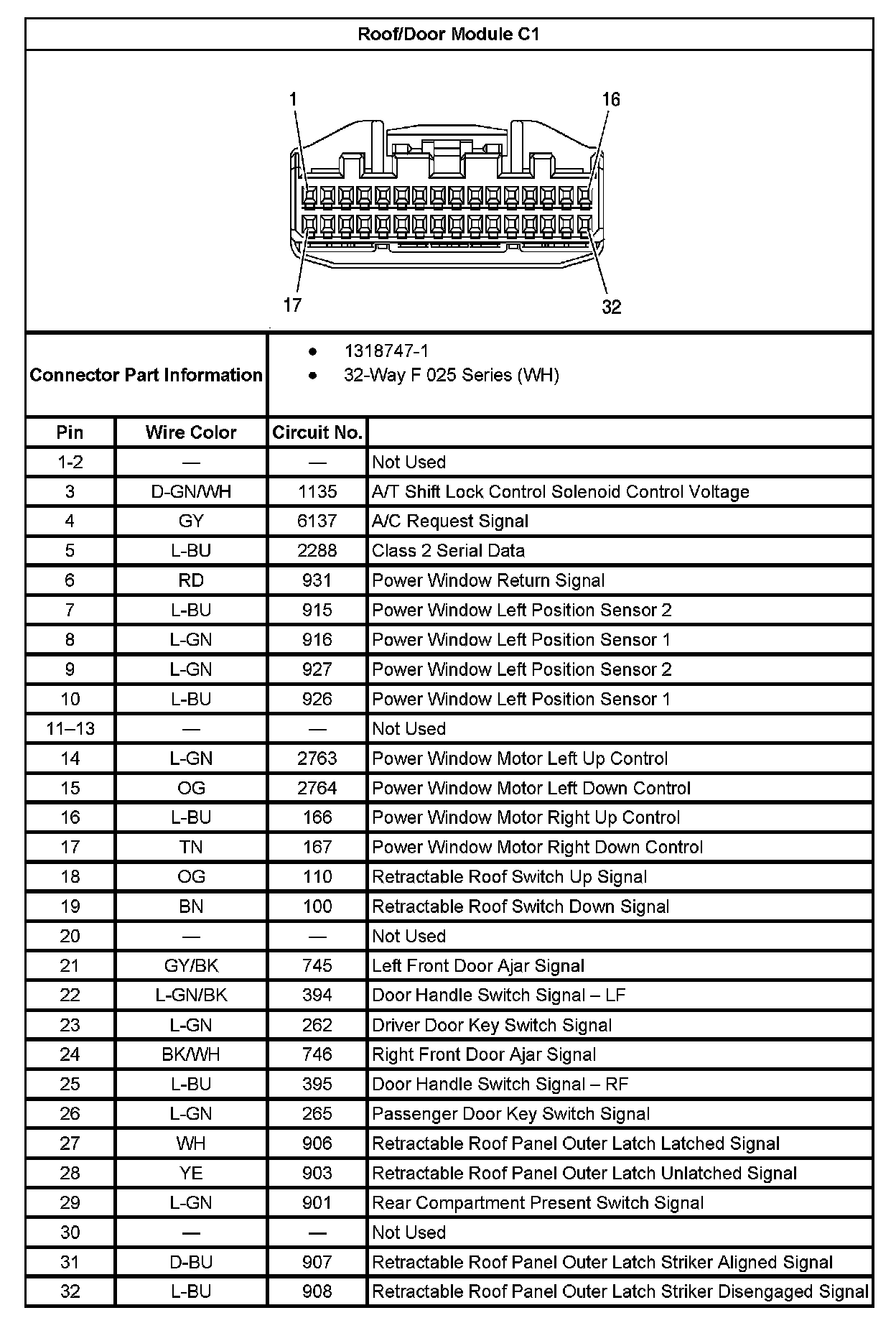

Roof/Door Module C1:

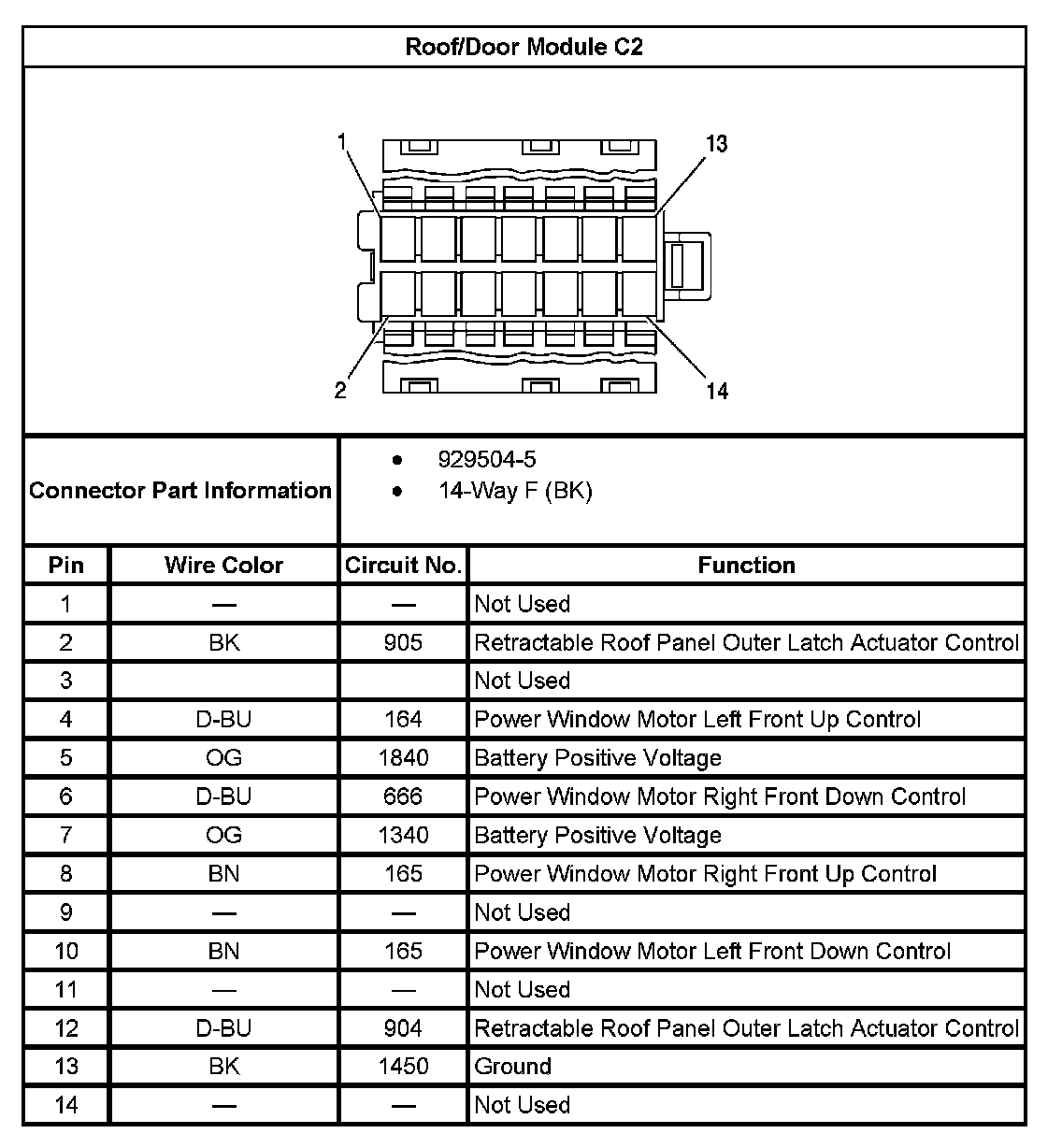

Roof/Door Module C2:

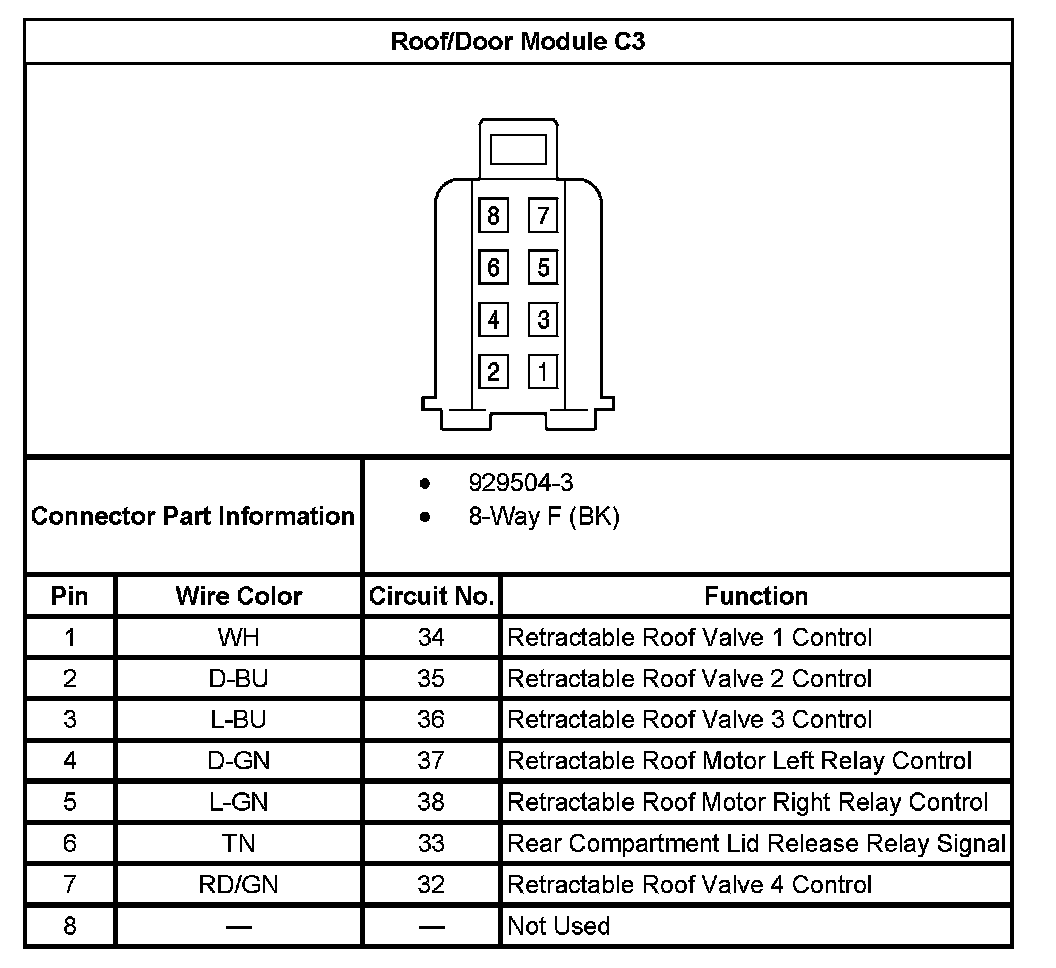

Roof/Door Module C3:

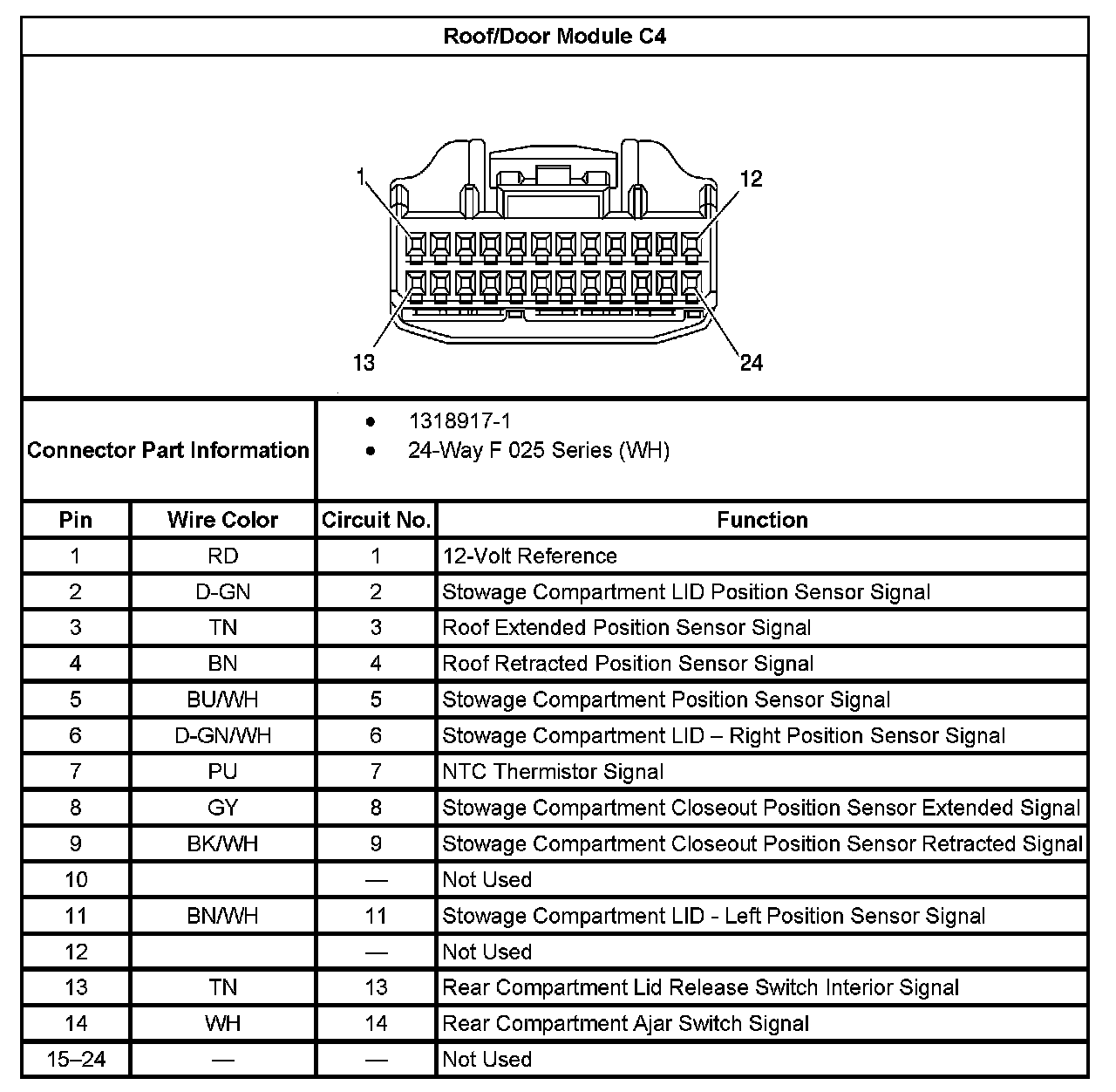

Roof/Door Module C4:
