Home >> Chevrolet >> 2003 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Components

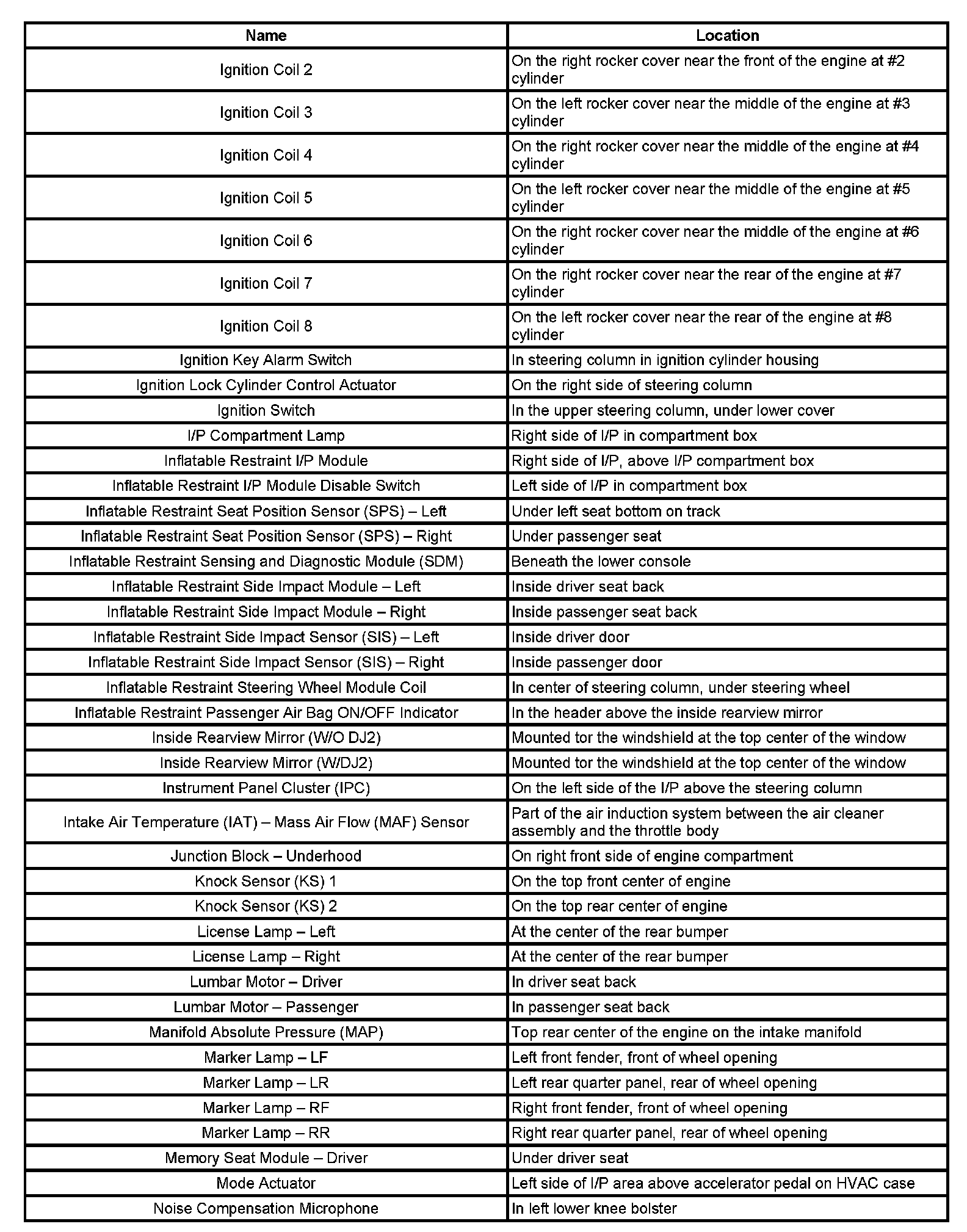

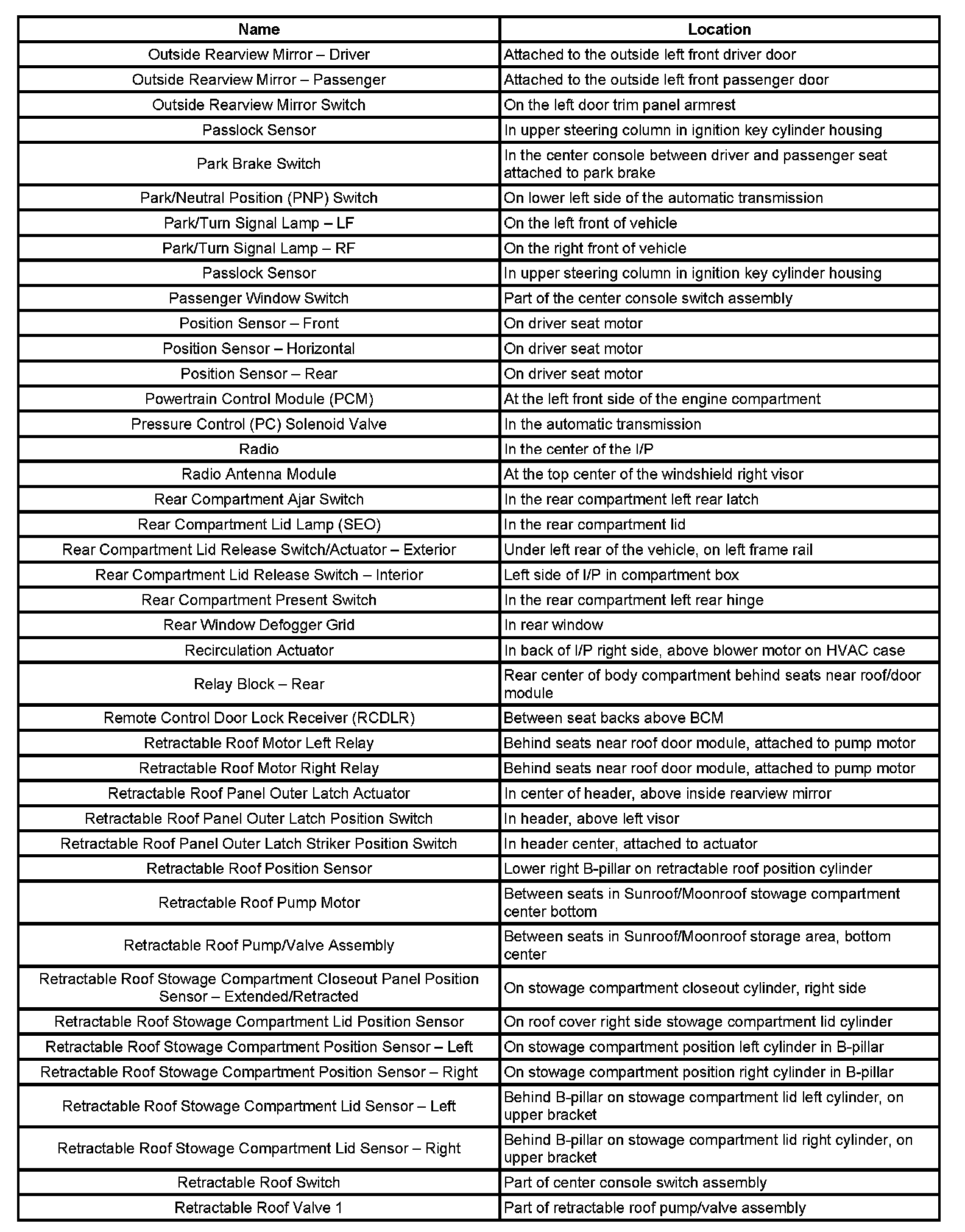

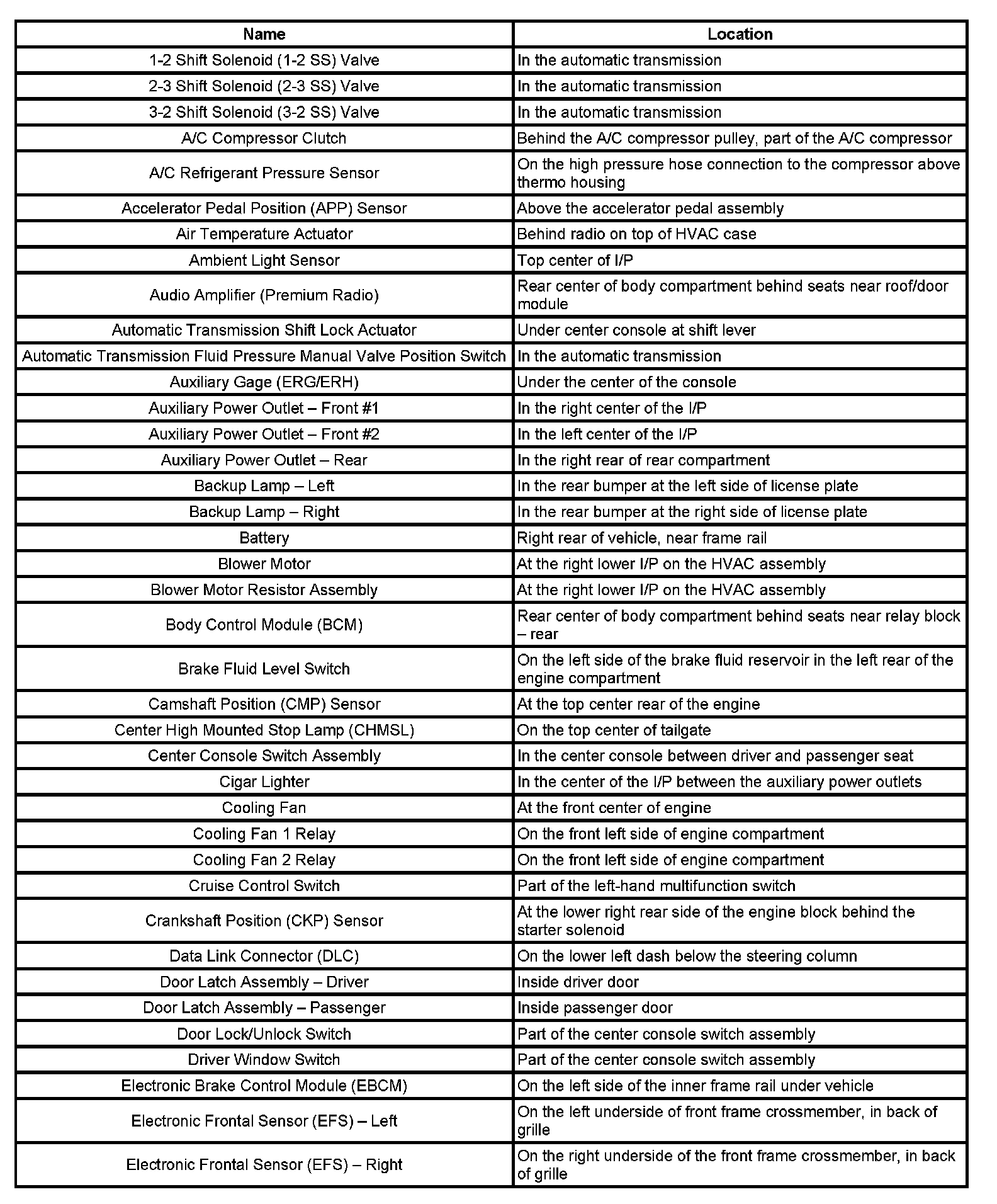

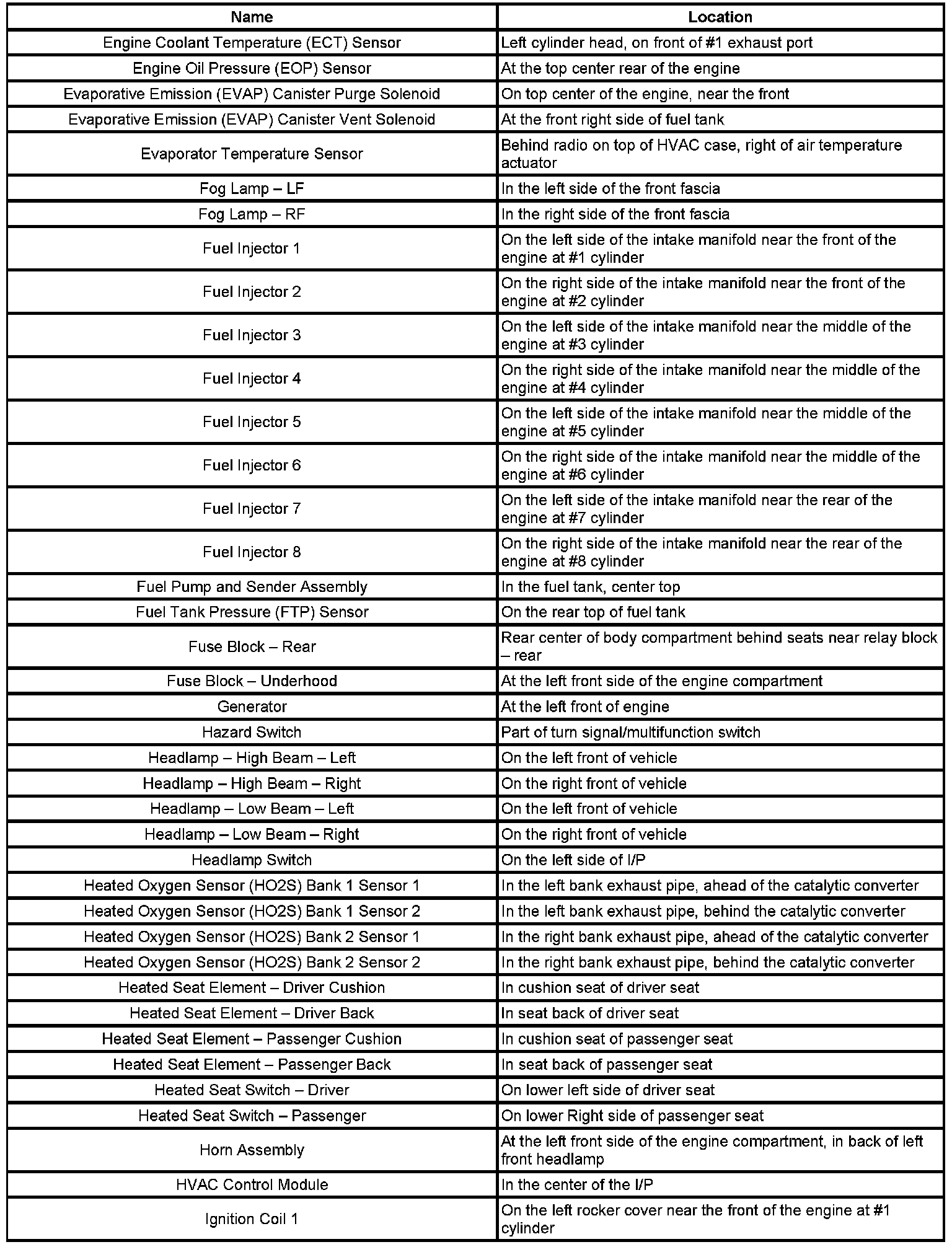

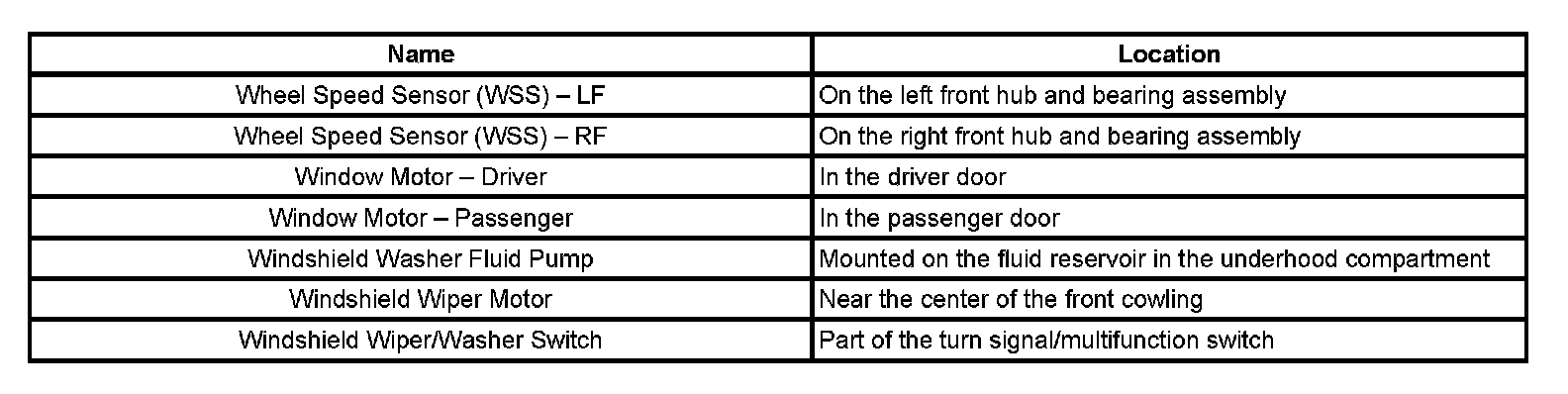

Components



1-2 Sh - El:




En - Ig:




Ig - No:




Ou - Re:




Re - Ve:




Wh - Wi:
