Home >> Chevrolet >> 2003 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Output Controls

Scan Tool Output Controls

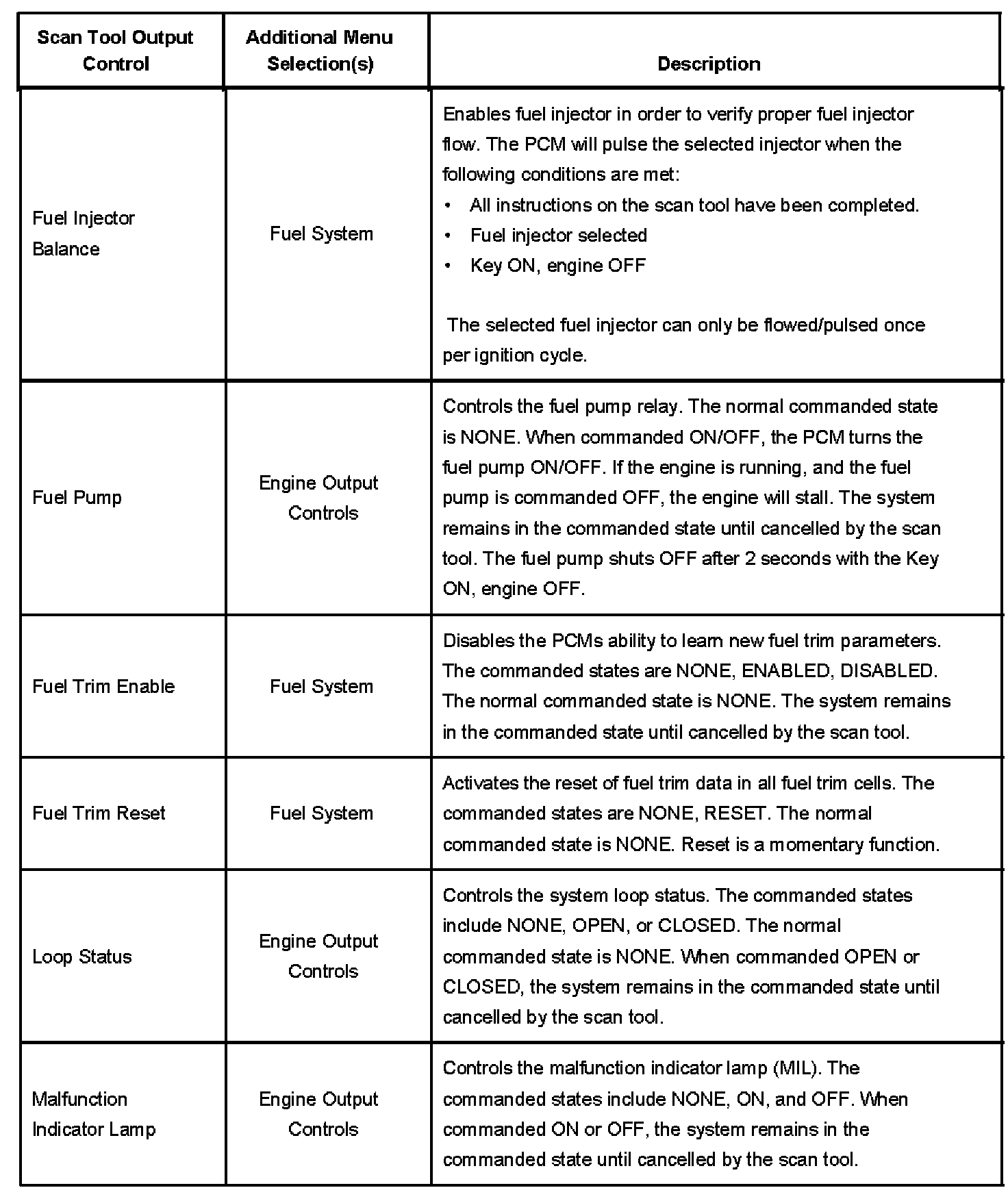

Scan Tool Output Controls - Computers And Control System 1:

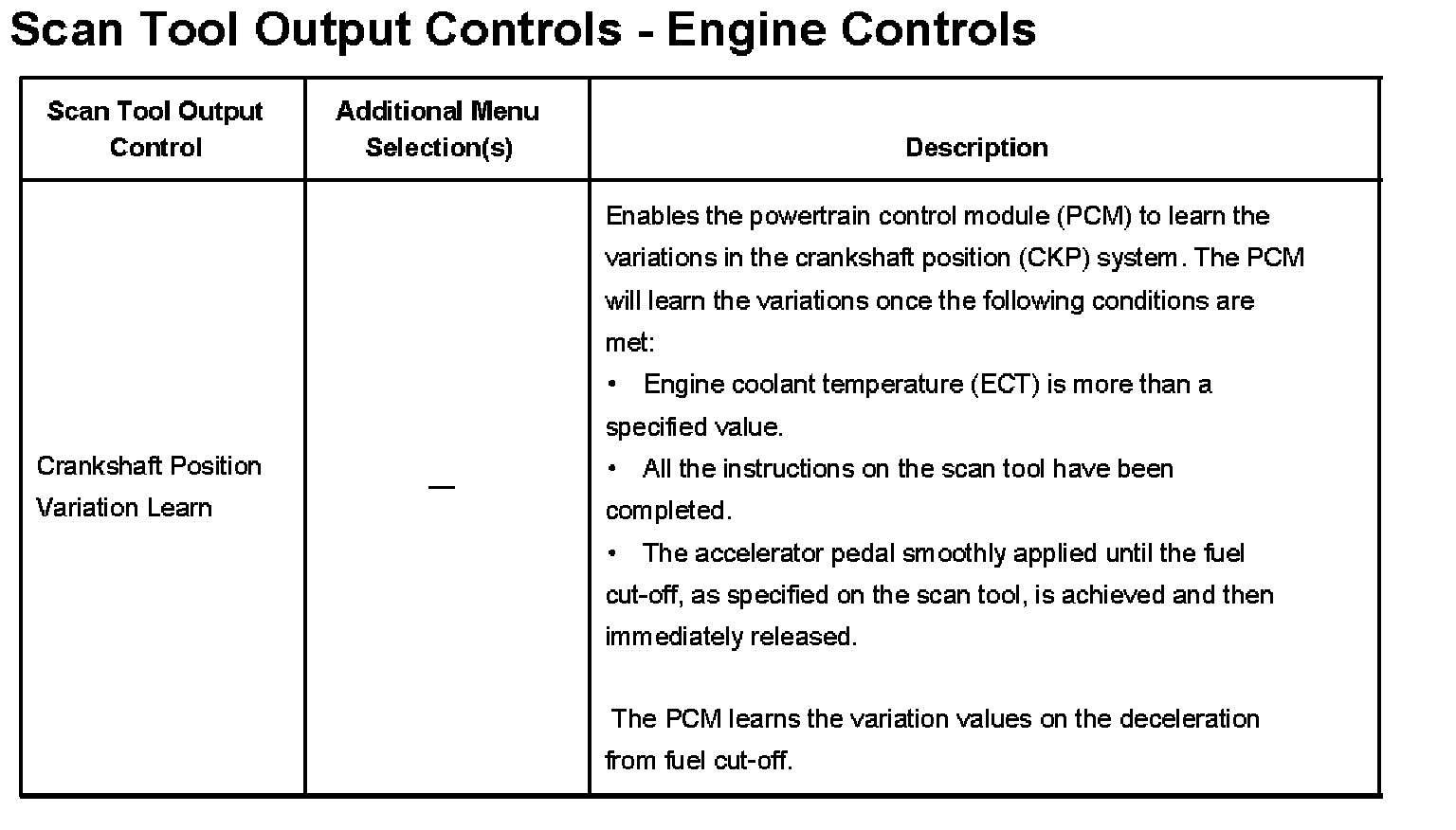

Scan Tool Output Controls - Computers And Control System 2:

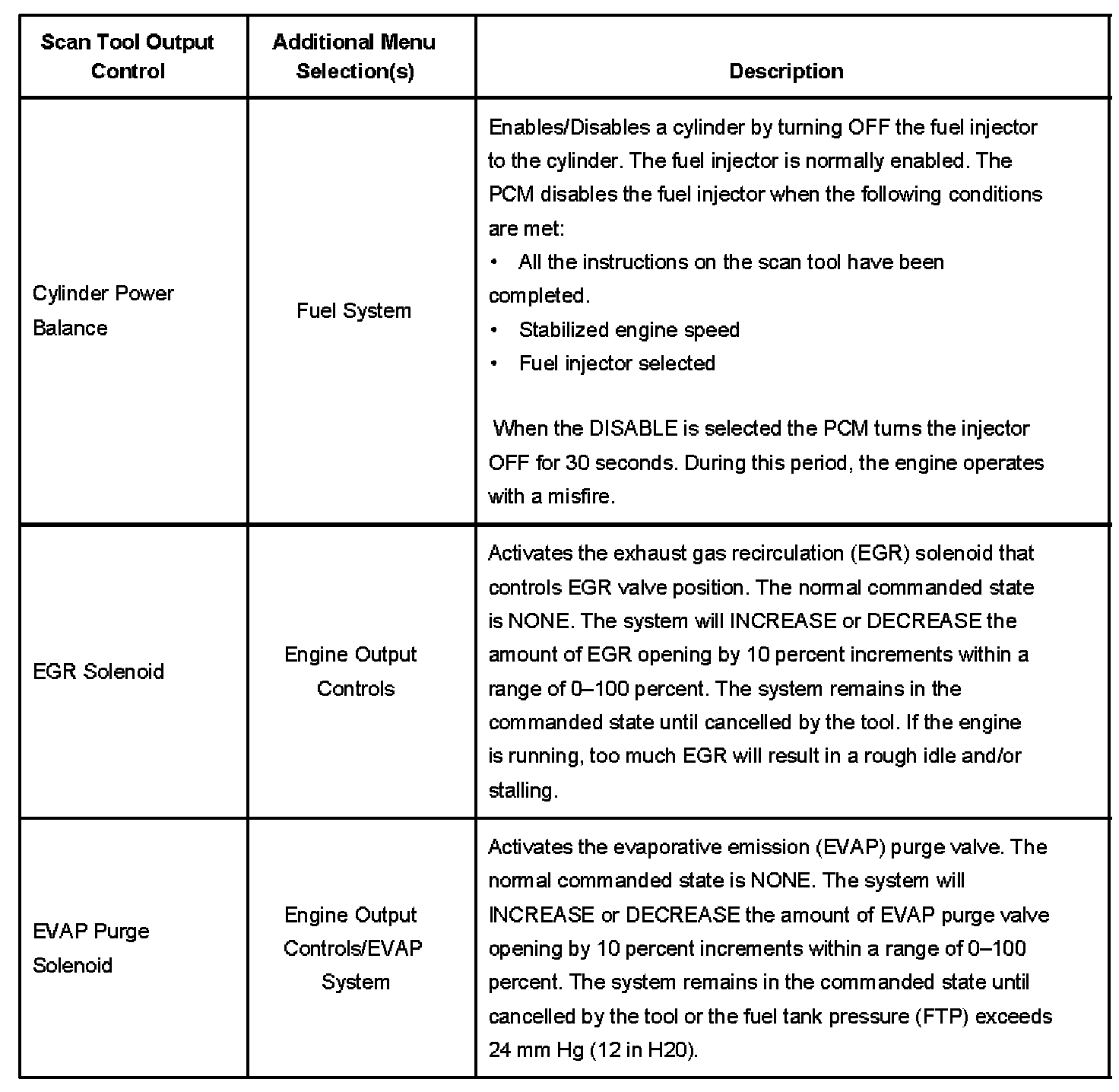

Scan Tool Output Controls - Computers And Control System 3:

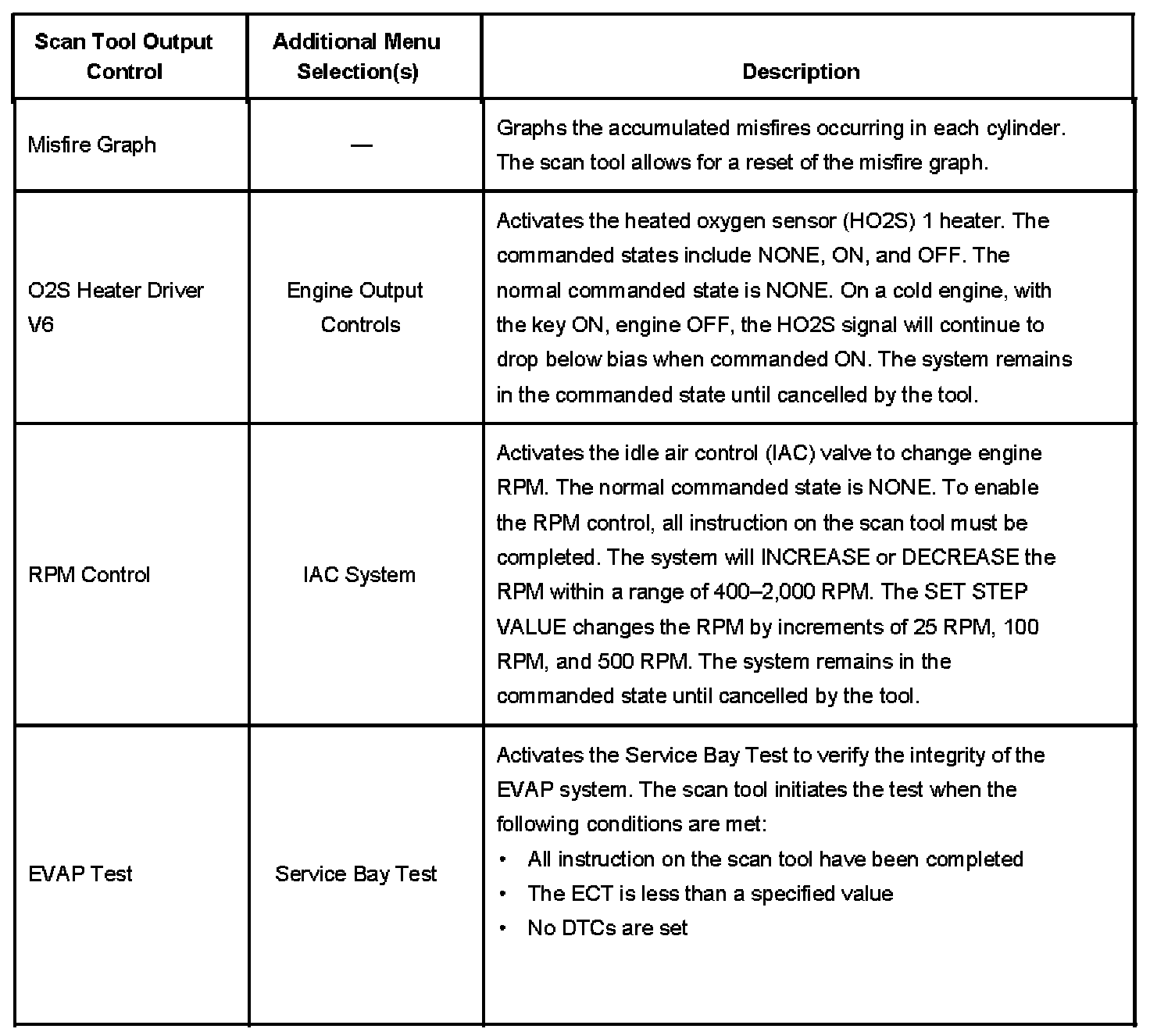

Scan Tool Output Controls - Computers And Control System 4:

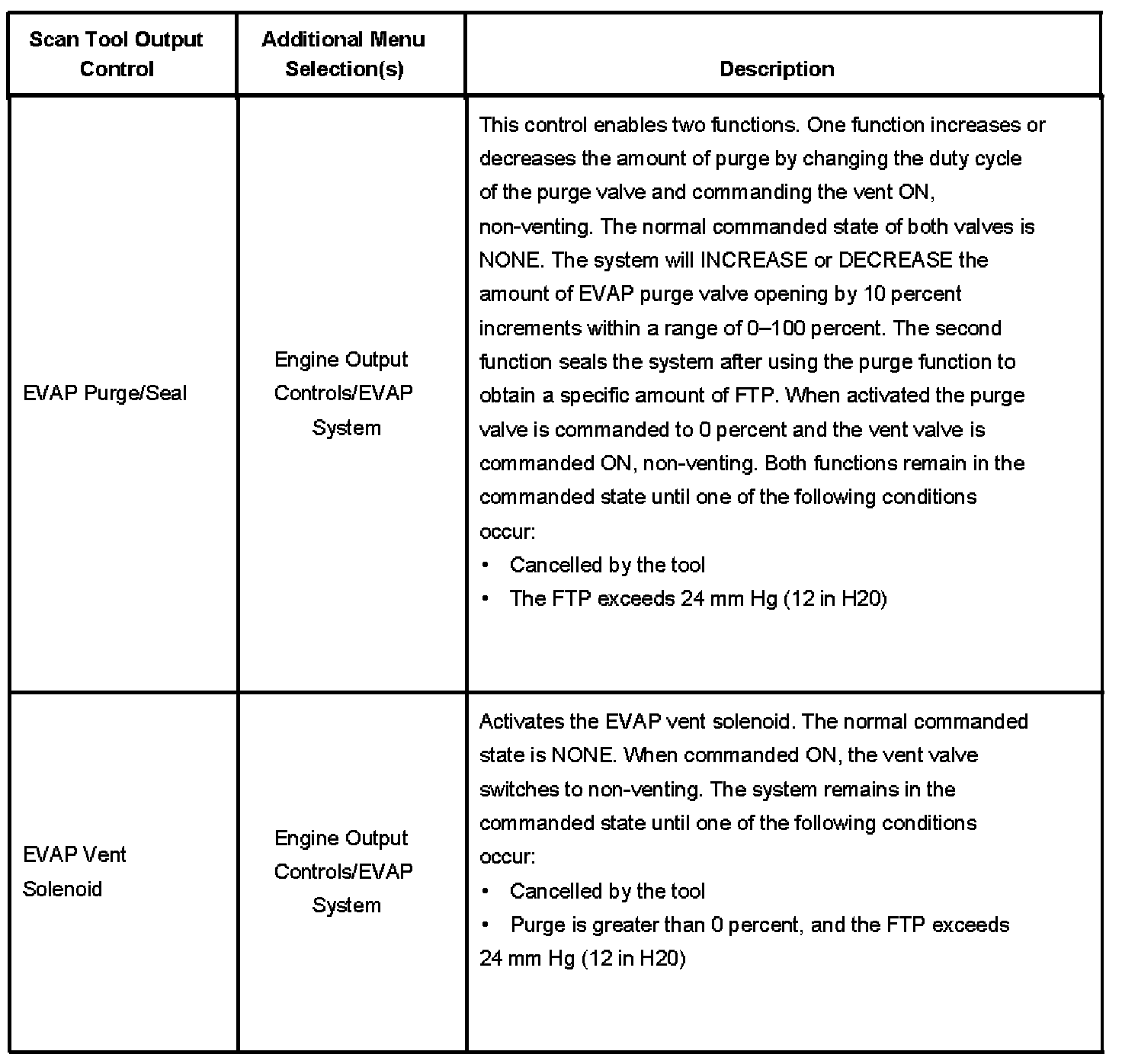

Scan Tool Output Controls - Computers And Control System 5:
