Home >> Chevrolet >> 2003 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

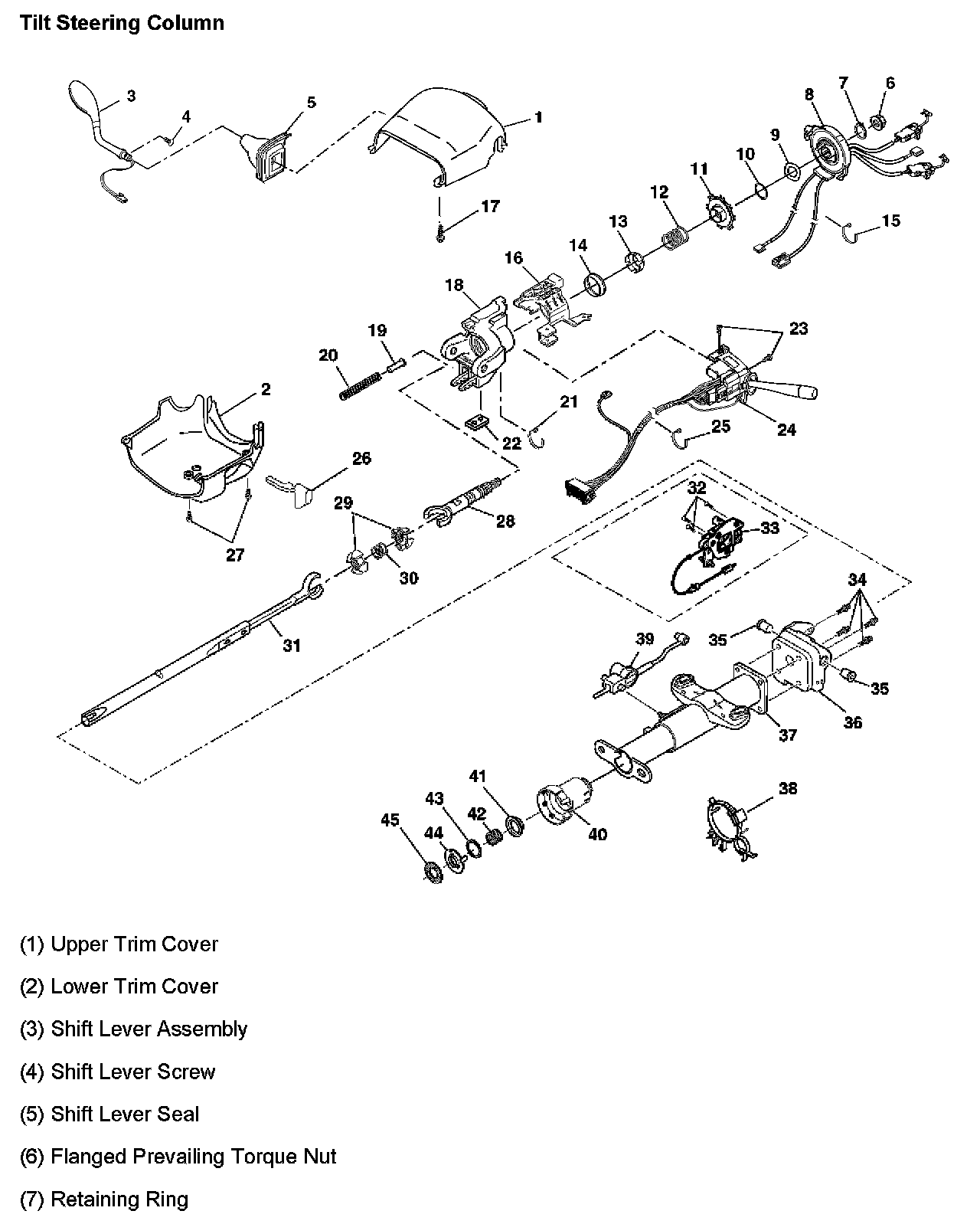

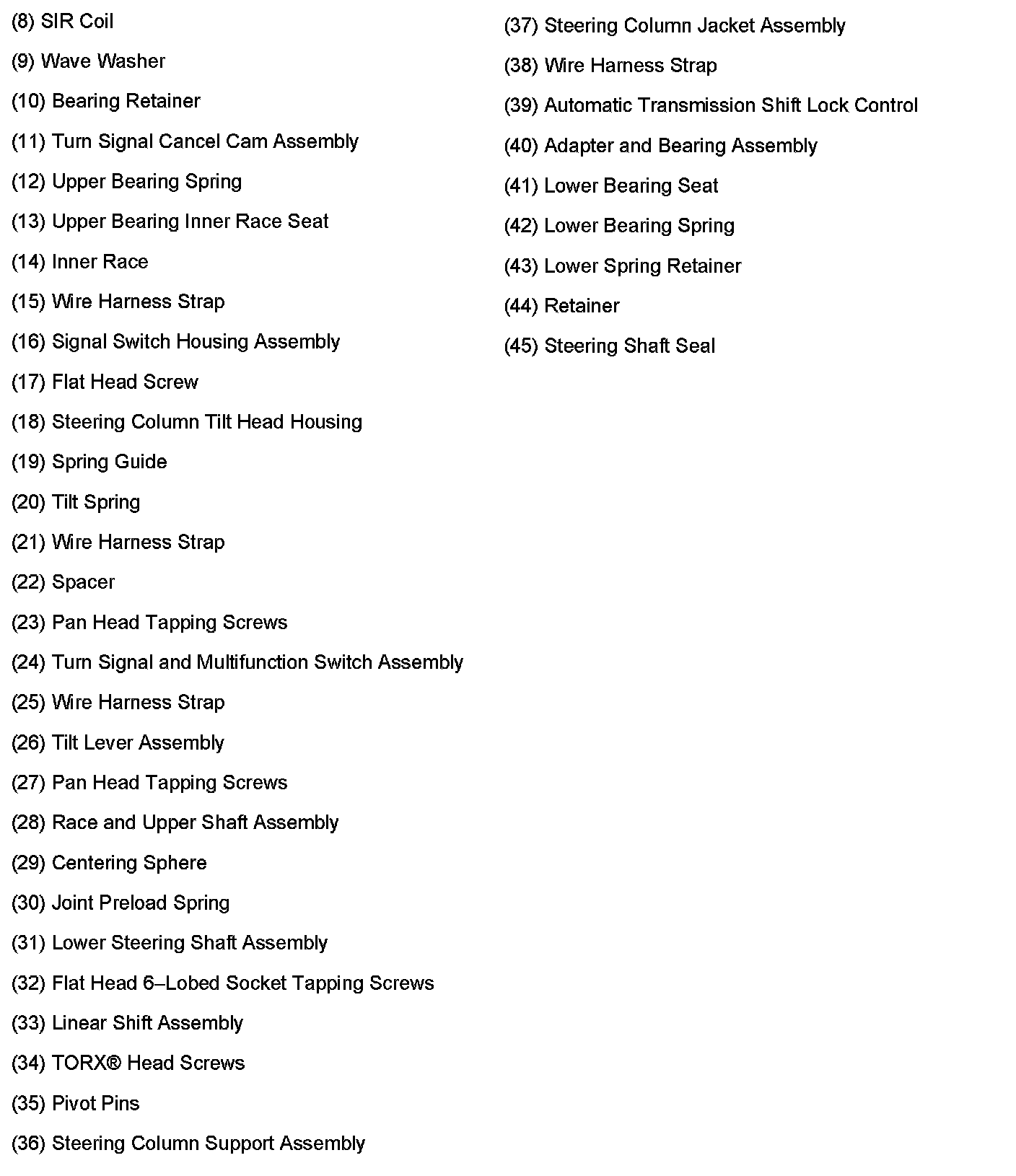

Tilt Steering Column Part 1:

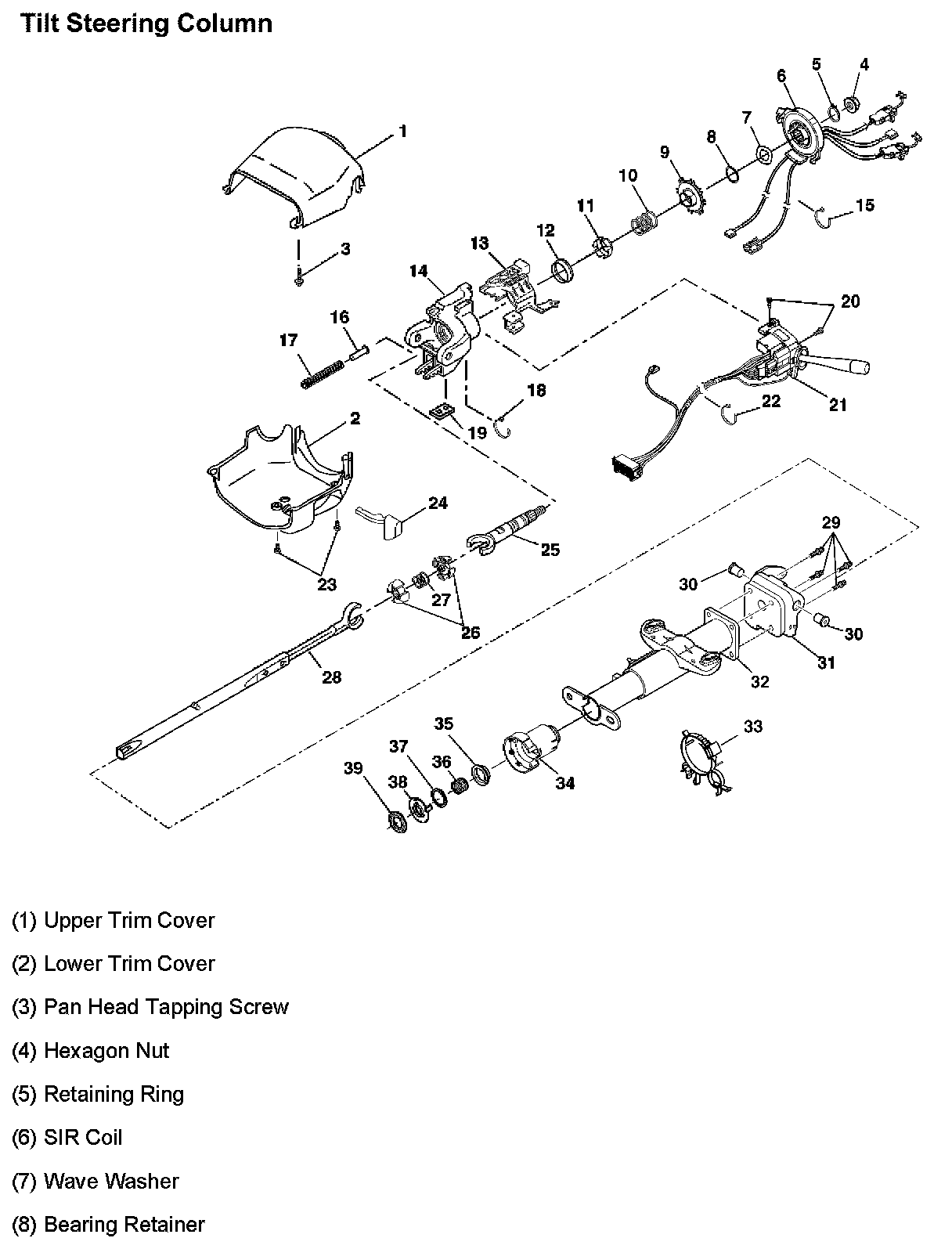

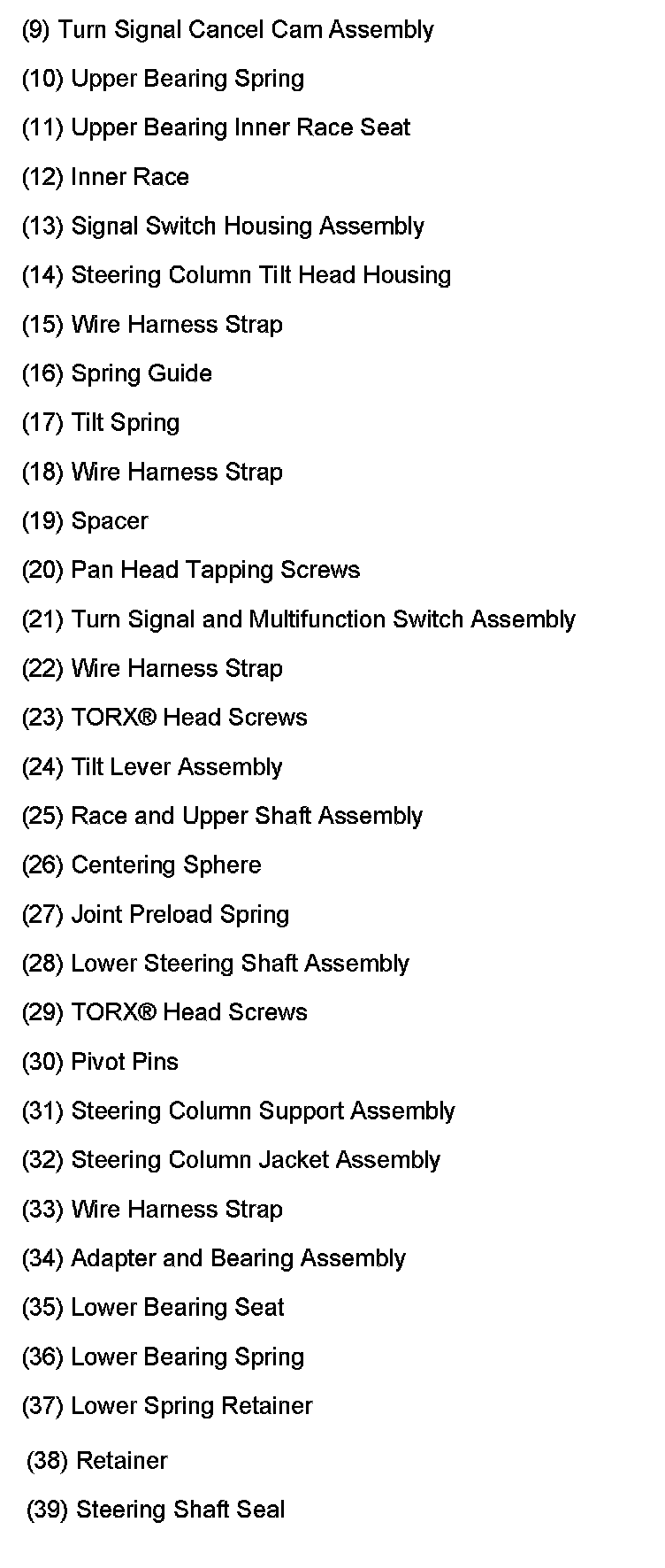

Tilt Steering Column Part 2:



Tilt Steering Column Part 1:



Tilt Steering Column Part 2:
