Home >> Chevrolet >> 2003 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper Intake Manifold and Components

Upper Intake Manifold and Components

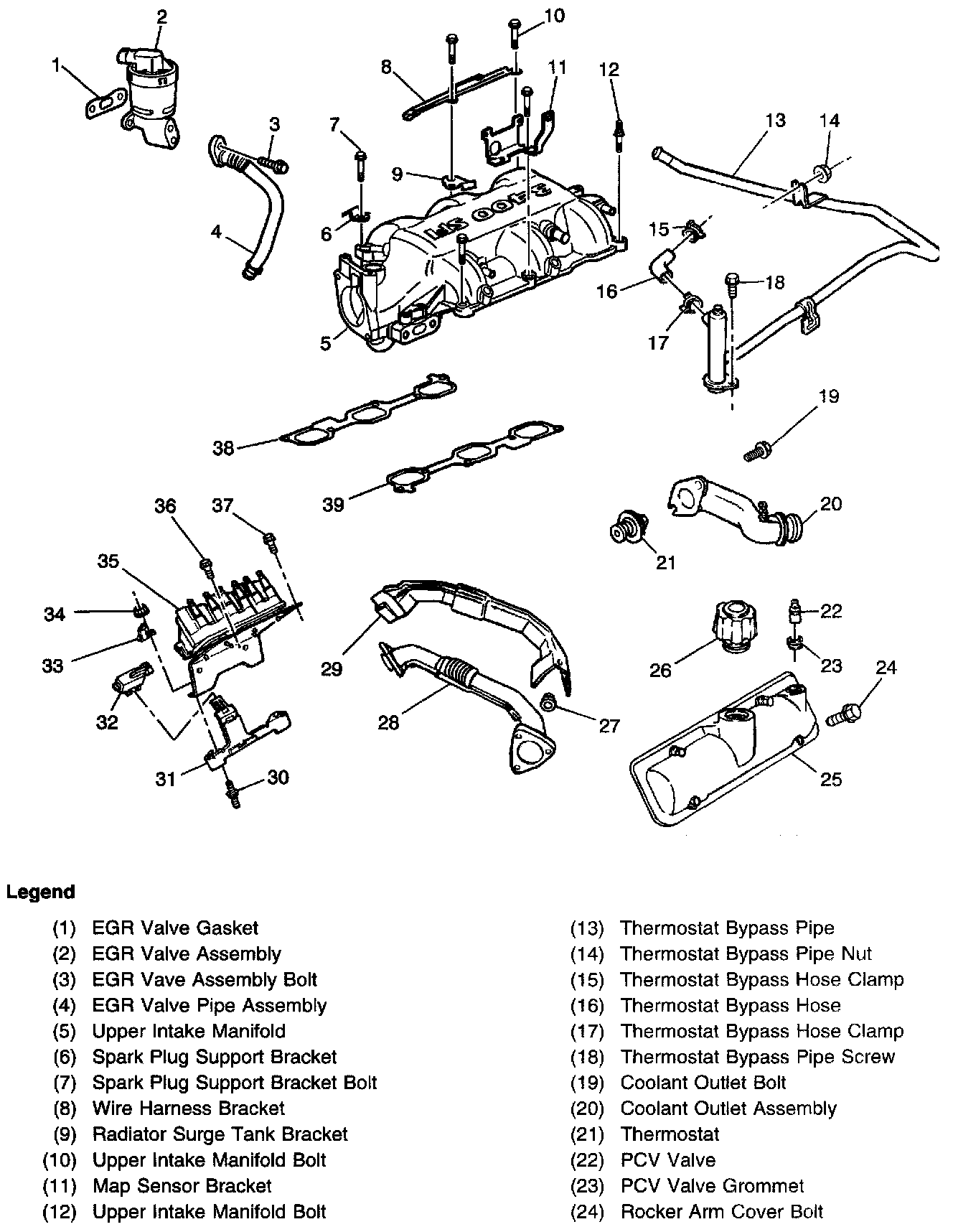

Upper Intake Manifold and Components (Part 1 Of 2):

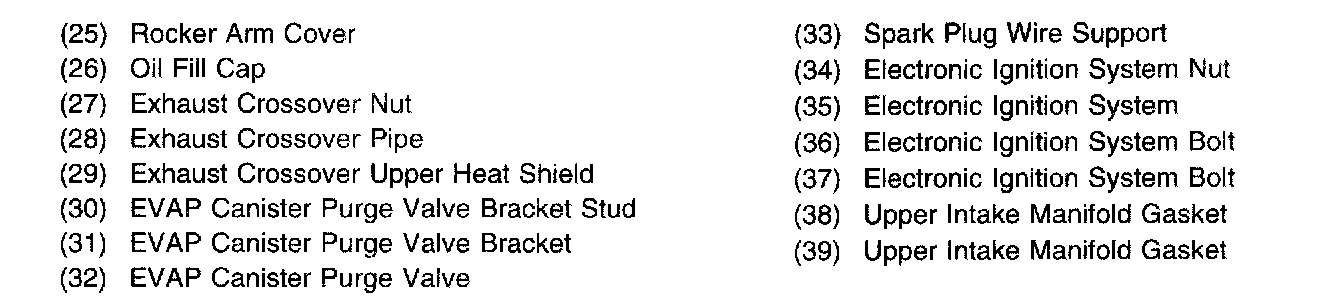

Upper Intake Manifold and Components (Part 2 Of 2):





Upper Intake Manifold and Components
