lemon-mirror
:
Home
>>
Chevrolet
>>
2003
>>
Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Engine Block and Components
Engine Block and Components

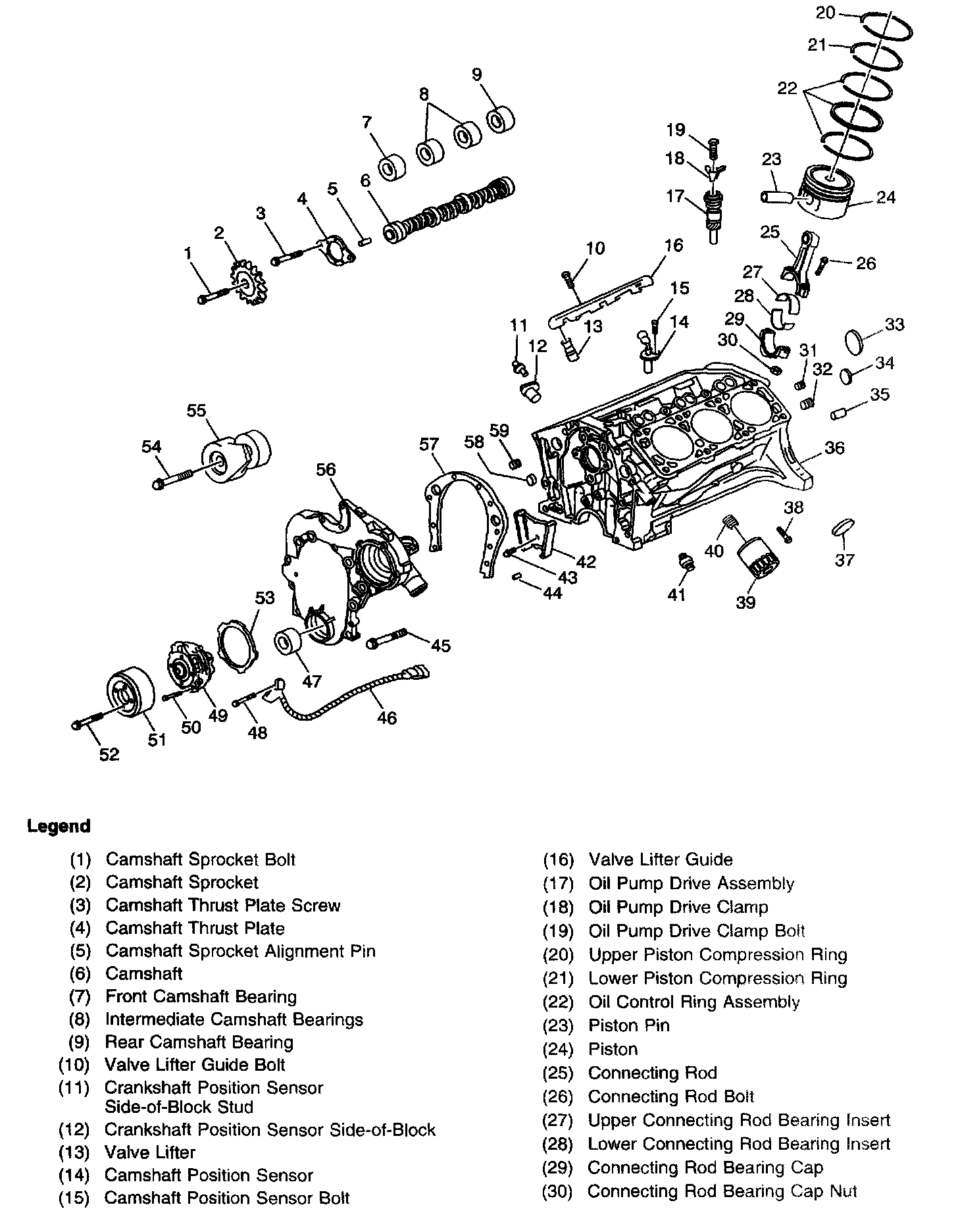

Engine Block and Components (Part 1 Of 2):

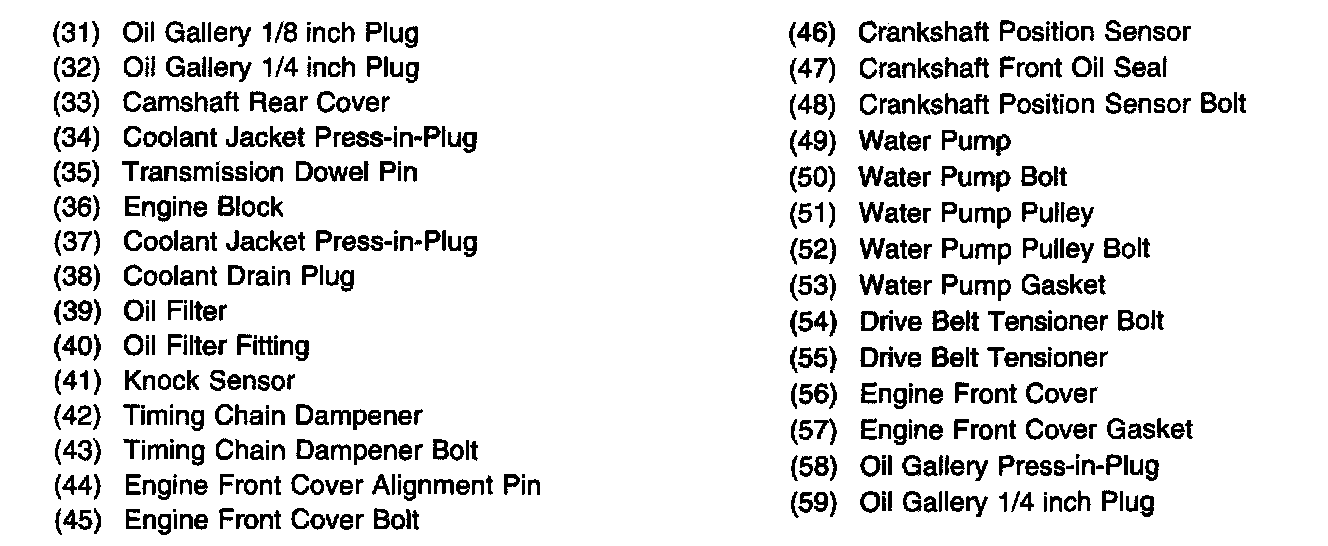

Engine Block and Components (Part 2 Of 2):
Engine Block and Components
