Body Control Module (BCM) C1

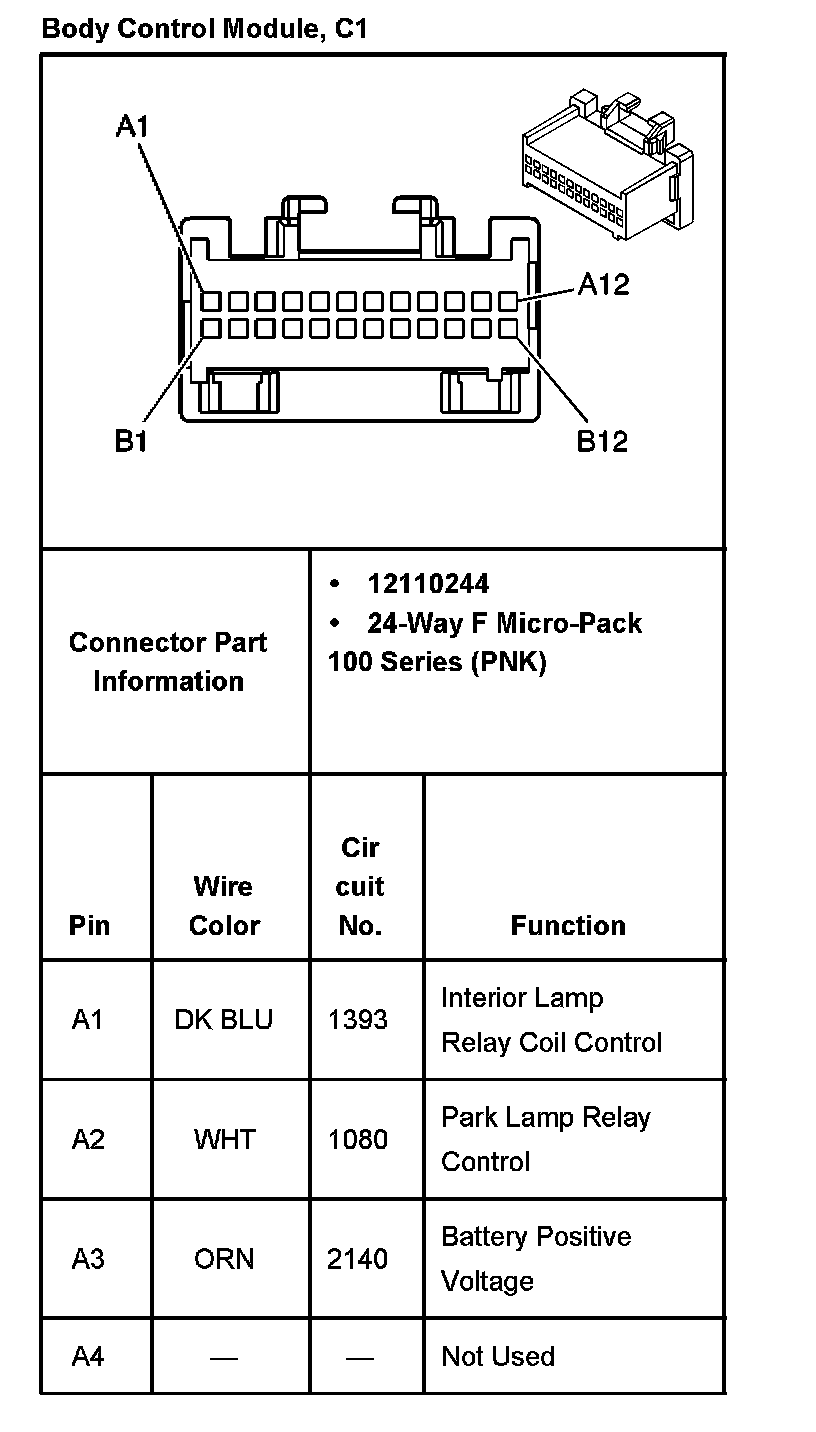

Body Control Module, C1 Part 1:

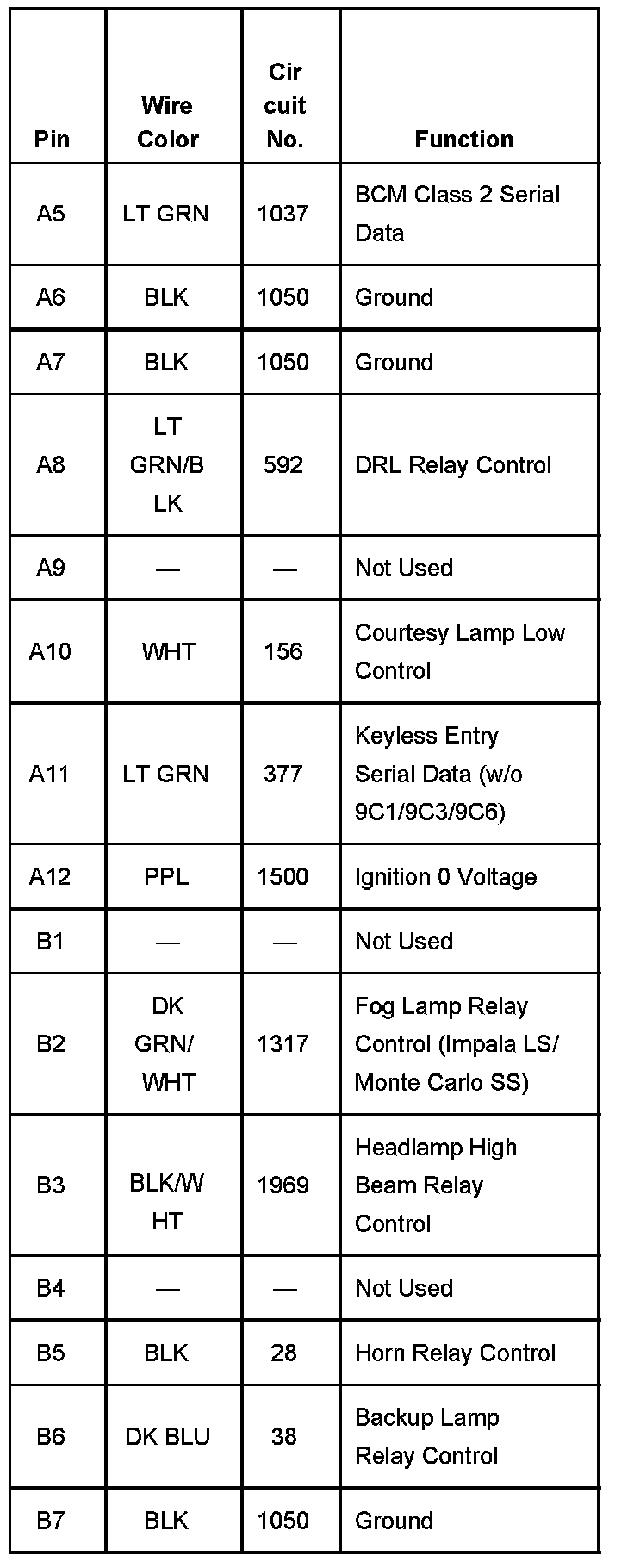

Body Control Module, C1 Part 2:

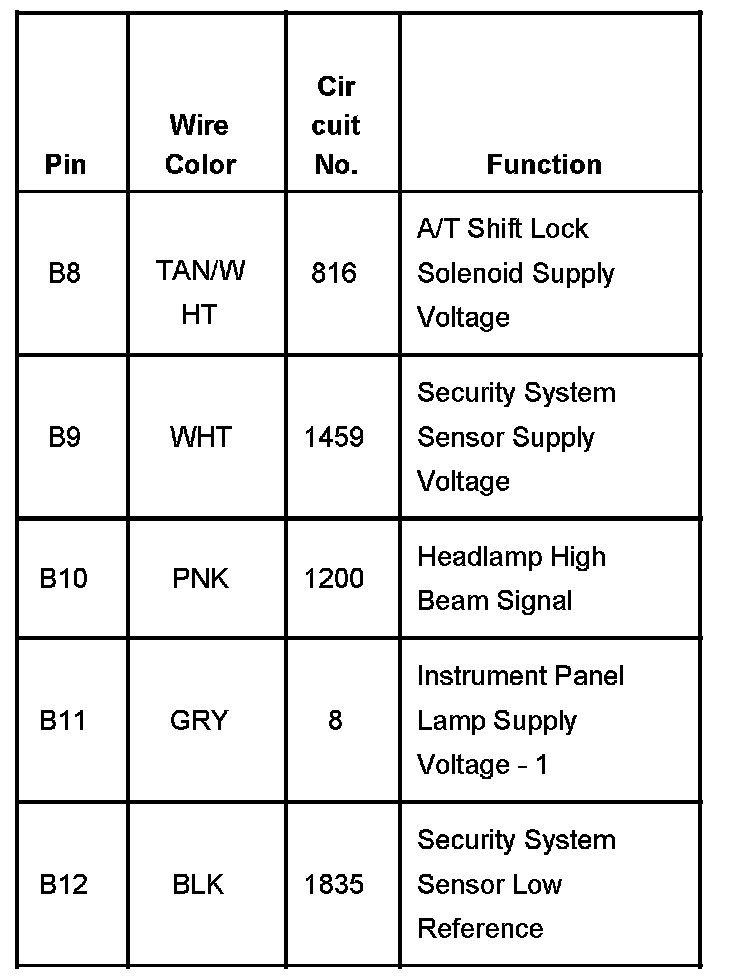

Body Control Module, C1 Part 3:
