Electronic Throttle Control Module: Diagrams

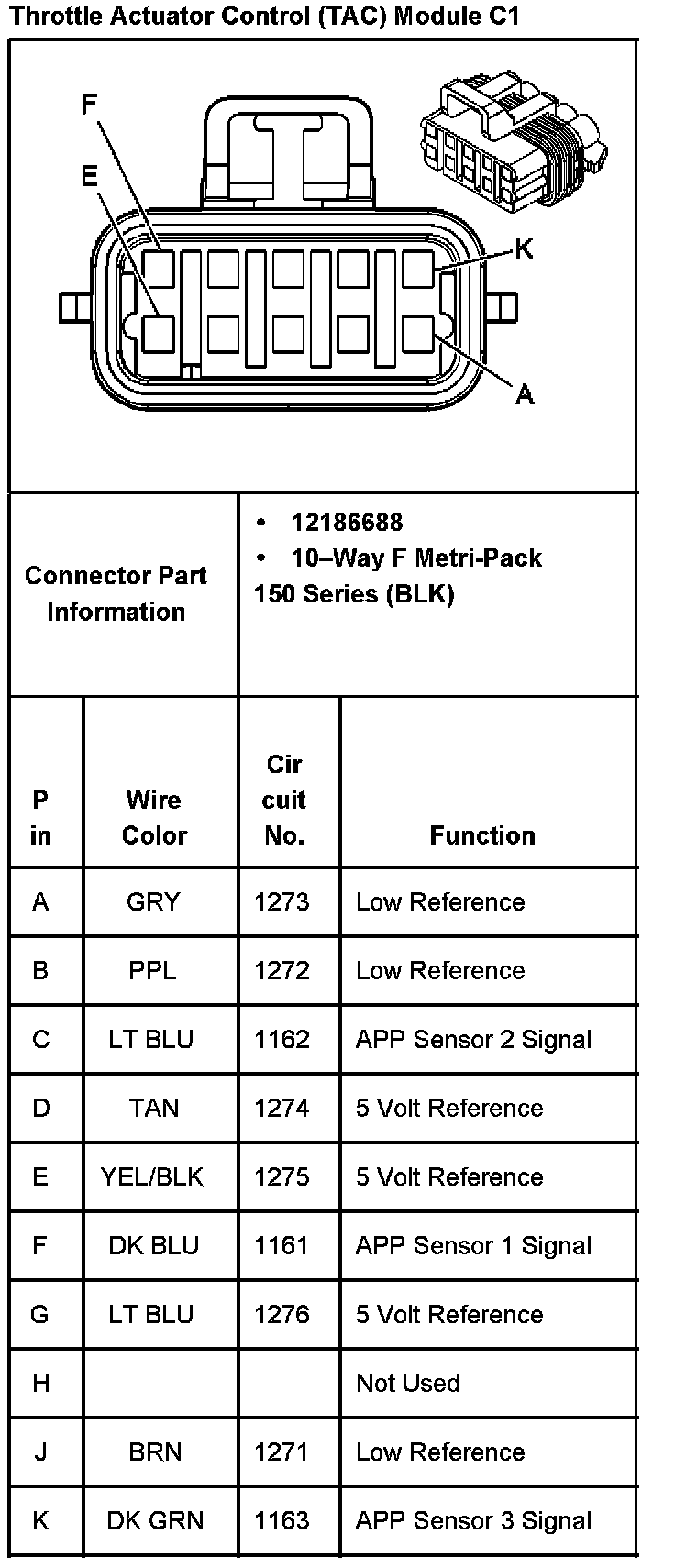

Throttle Actuator Control (TAC) Module C1:

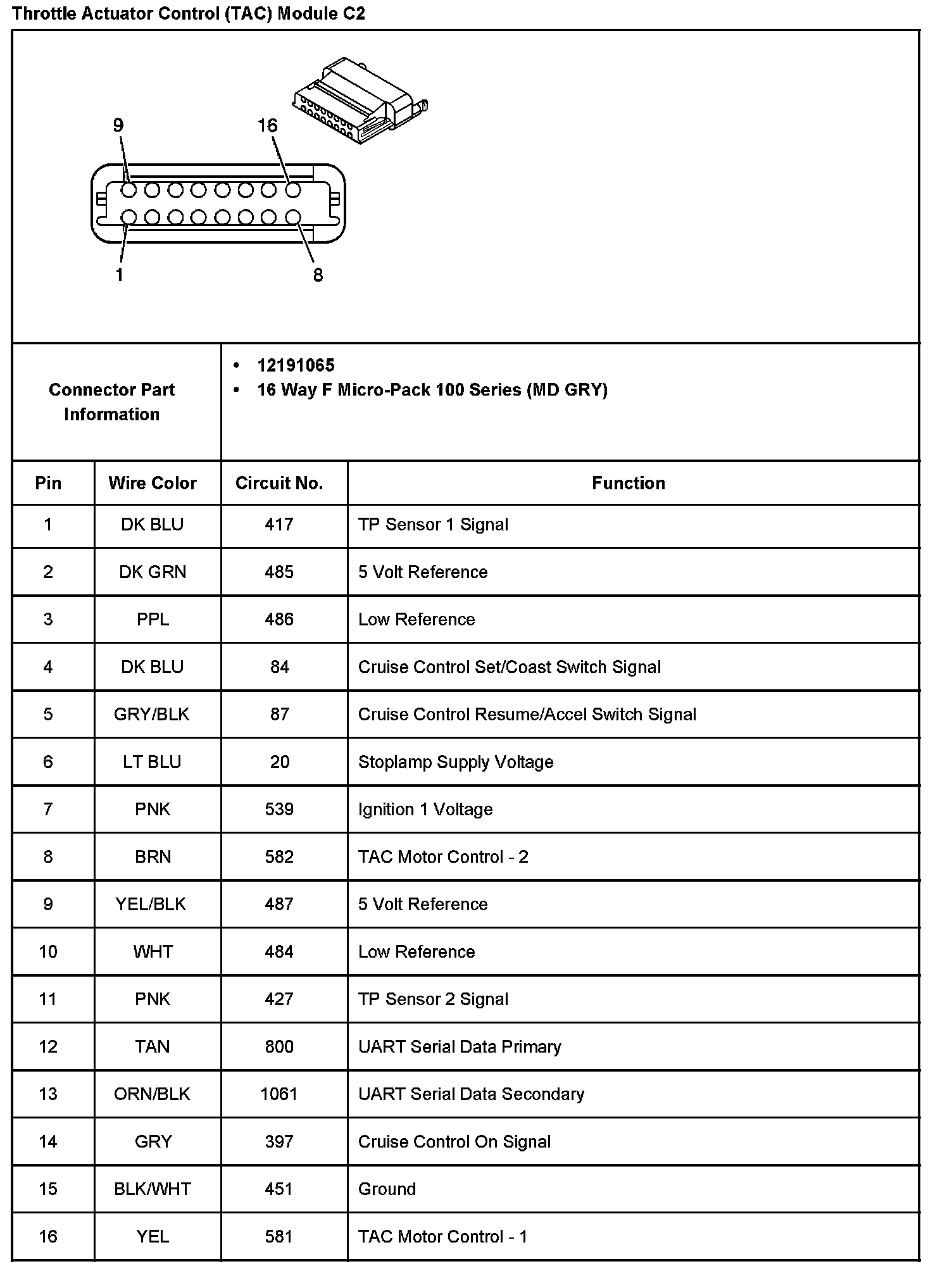

Throttle Actuator Control (TAC) Module C2:



Throttle Actuator Control (TAC) Module C1:



Throttle Actuator Control (TAC) Module C2 Part 1:



Throttle Actuator Control (TAC) Module C2 Part 2:
