PCM Connector C1
PCM Connector C1

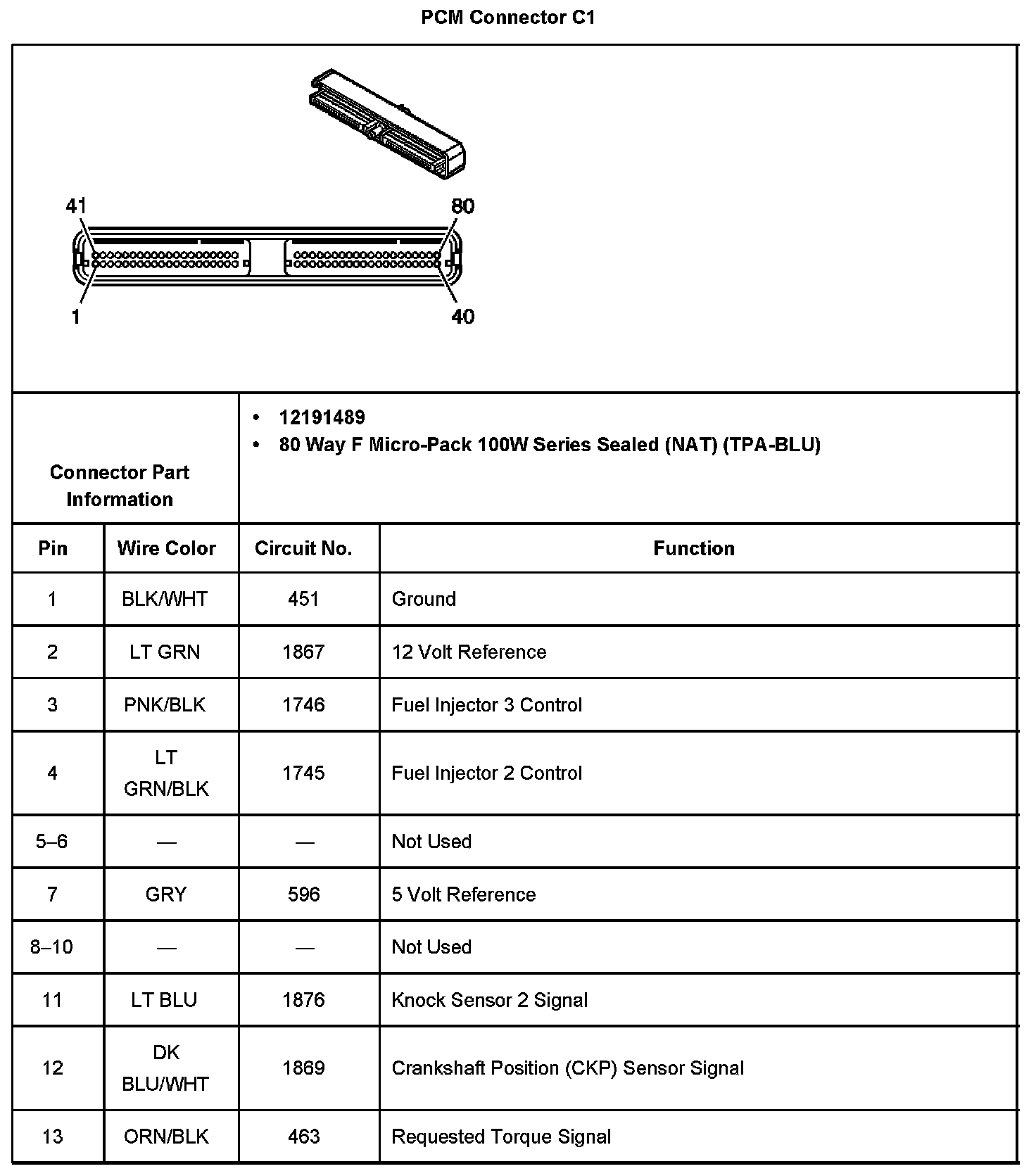

PCM Connector C1 Part 1:

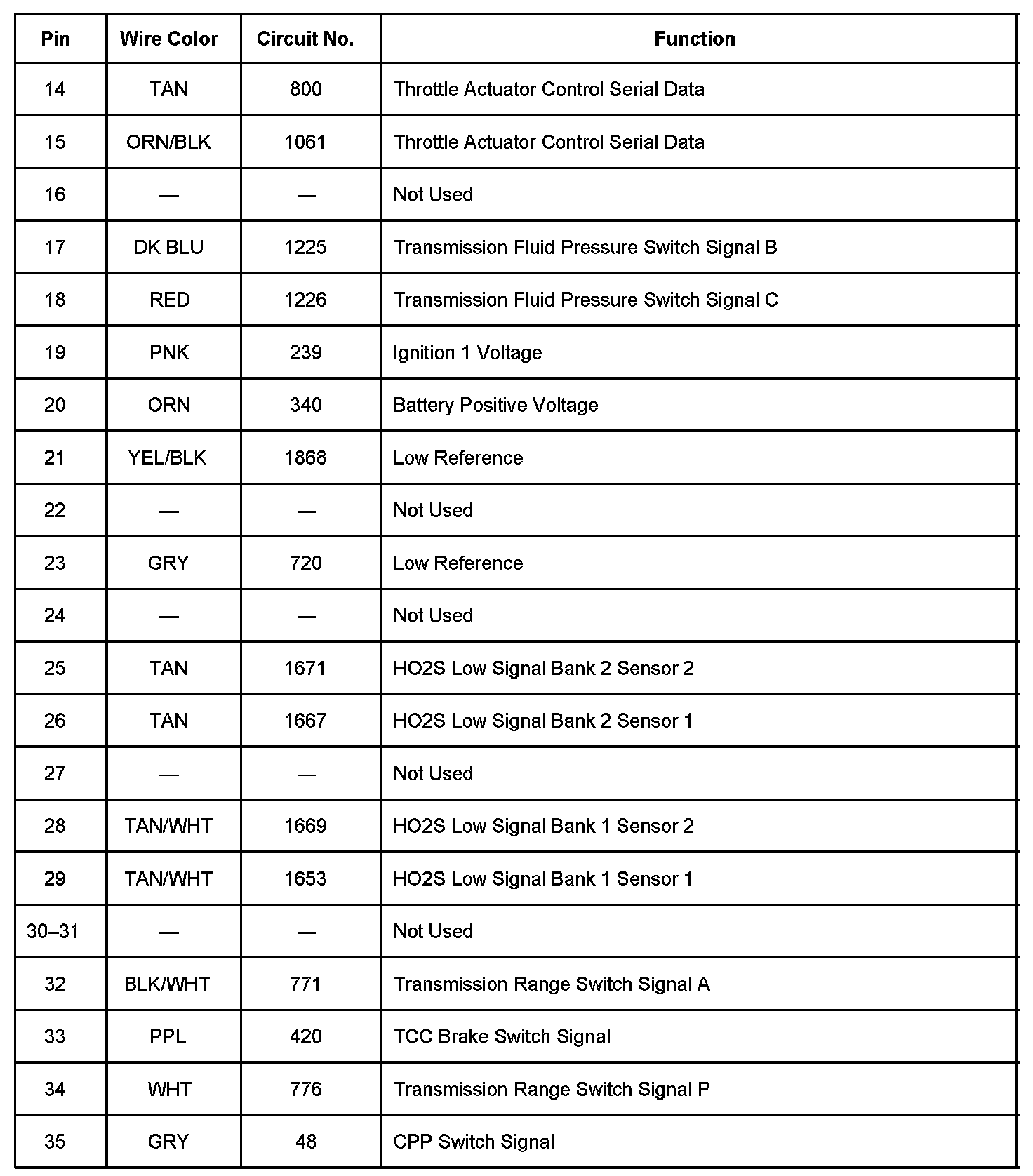

PCM Connector C1 Part 2:

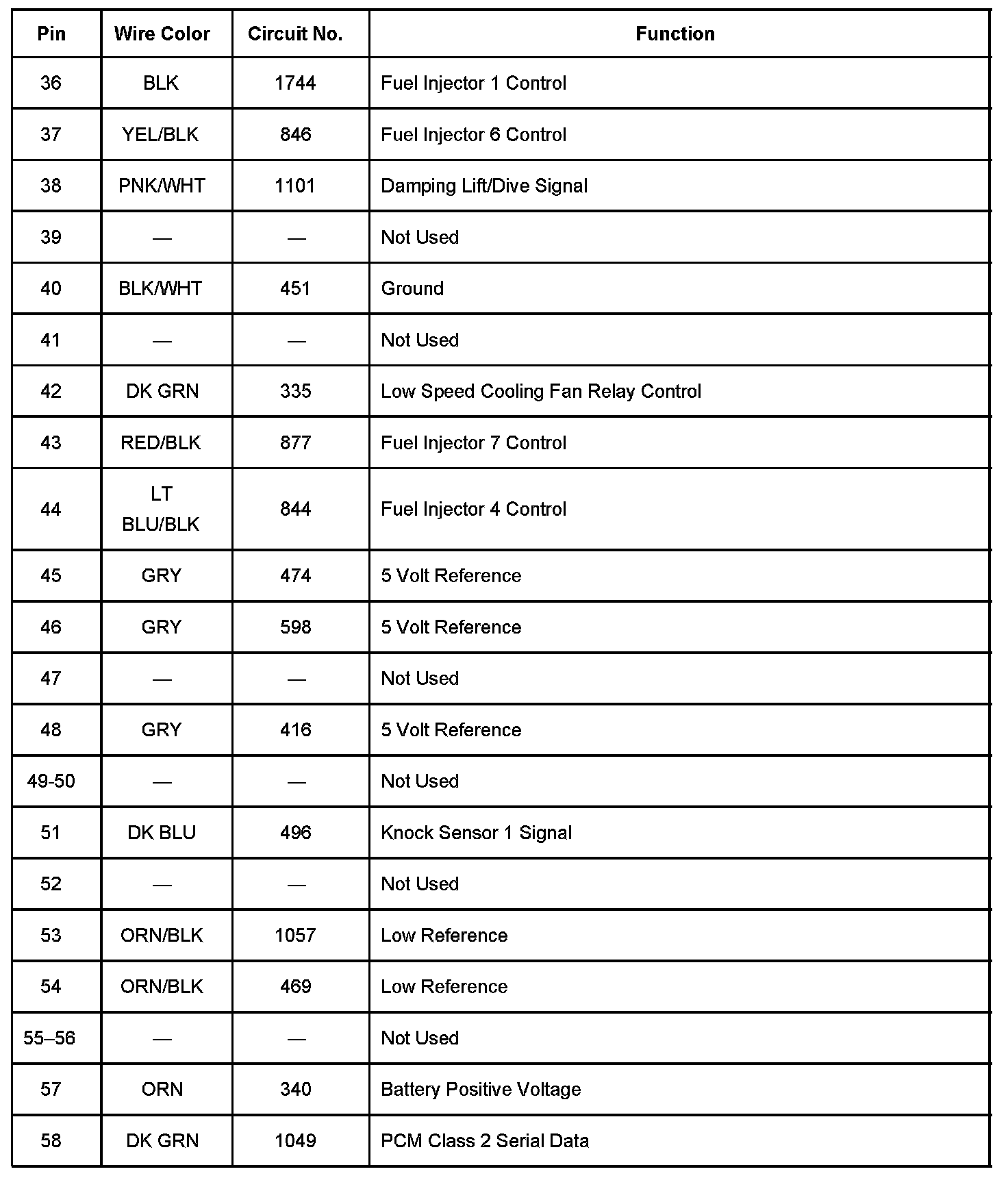

PCM Connector C1 Part 3:

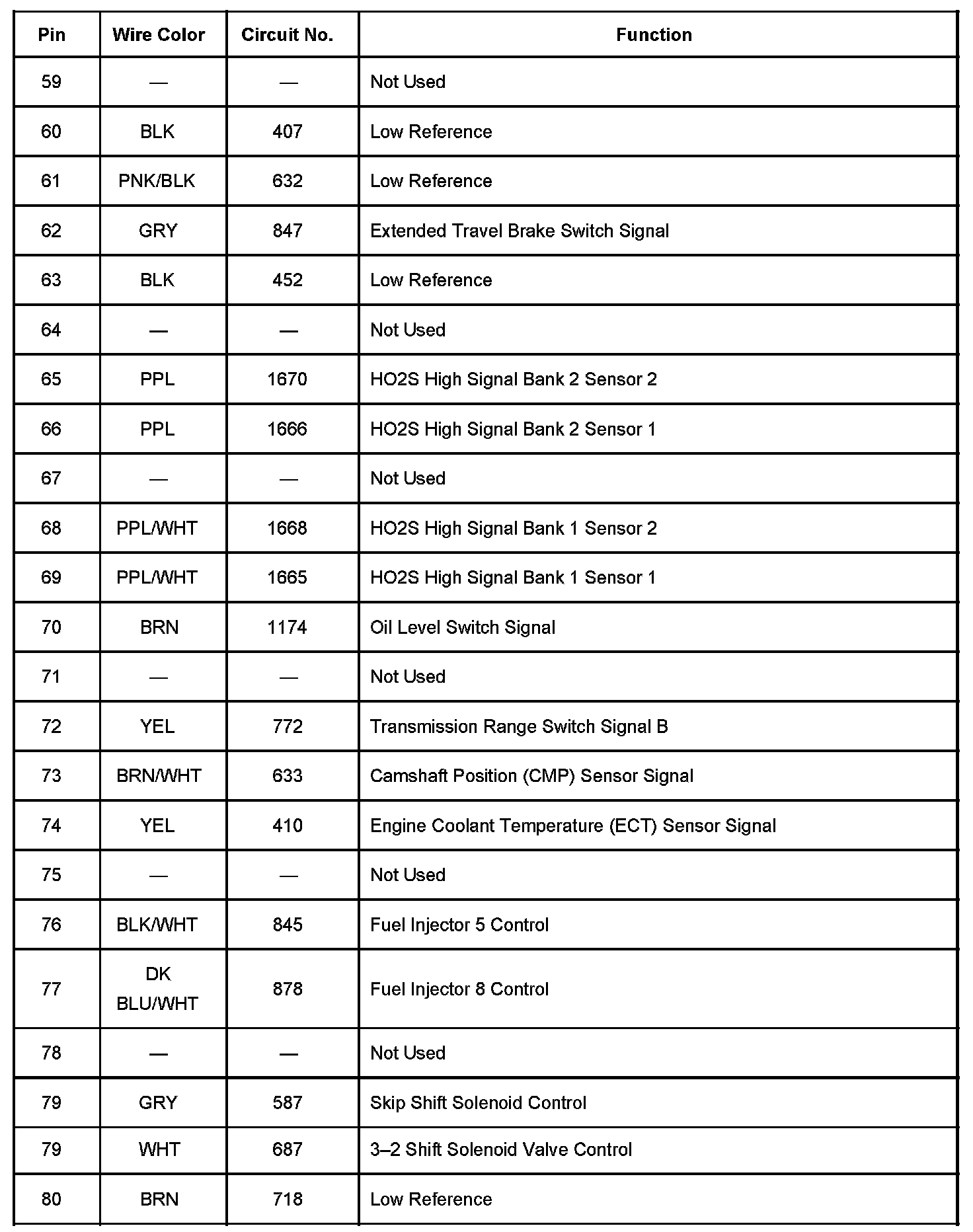

PCM Connector C1 Part 4:
