Home >> Chevrolet >> 2002 >> Tracker 2WD V6-2.5L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1

C1

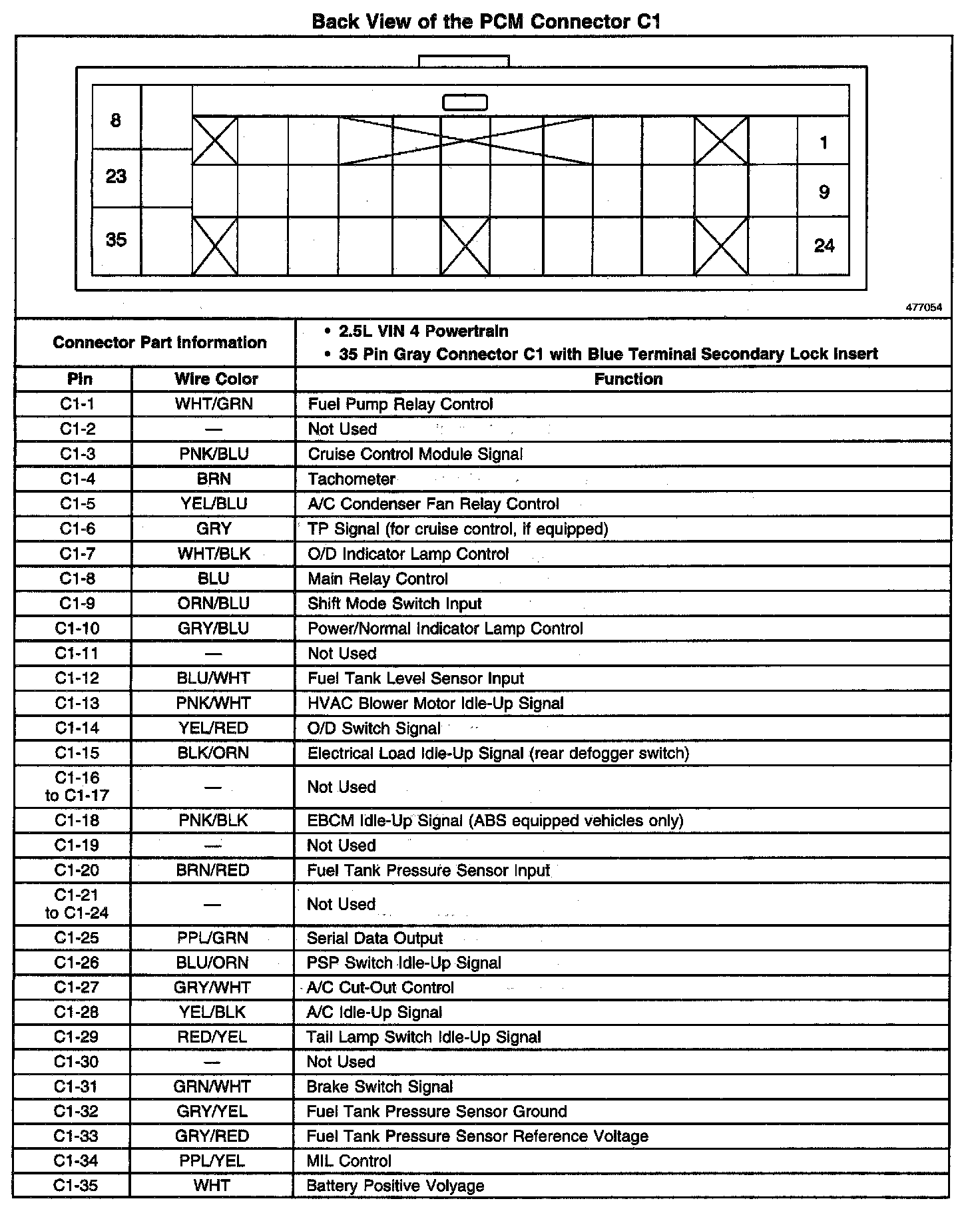

Back View Of The PCM Connector C1:
