Home >> Chevrolet >> 2002 >> Tracker 2WD L4-1.6L VIN 6 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

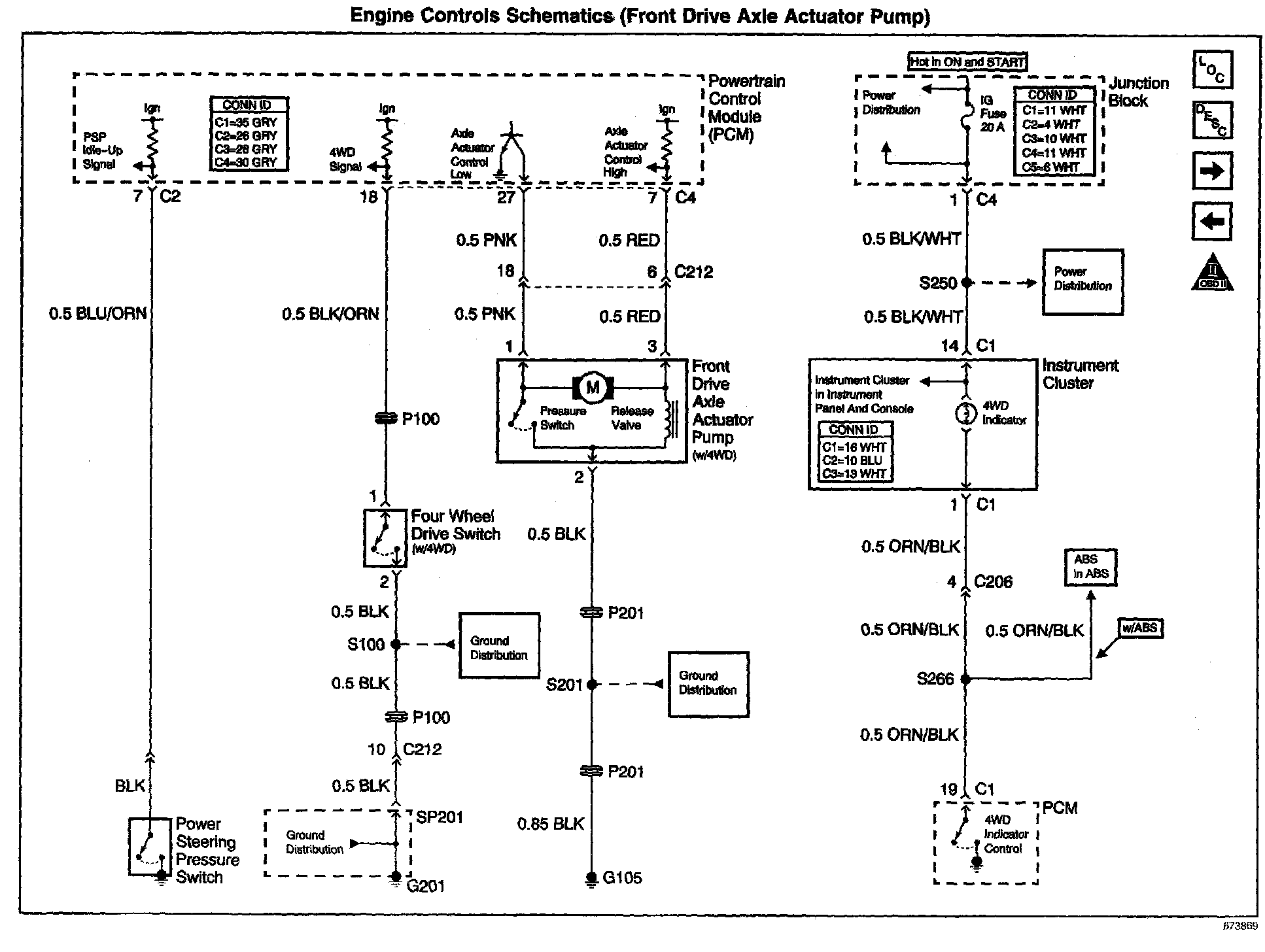

Engine Controls Schematics: Front Drive Axle Actuator Pump:
