Home >> Chevrolet >> 2002 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold and Components

Intake Manifold and Components

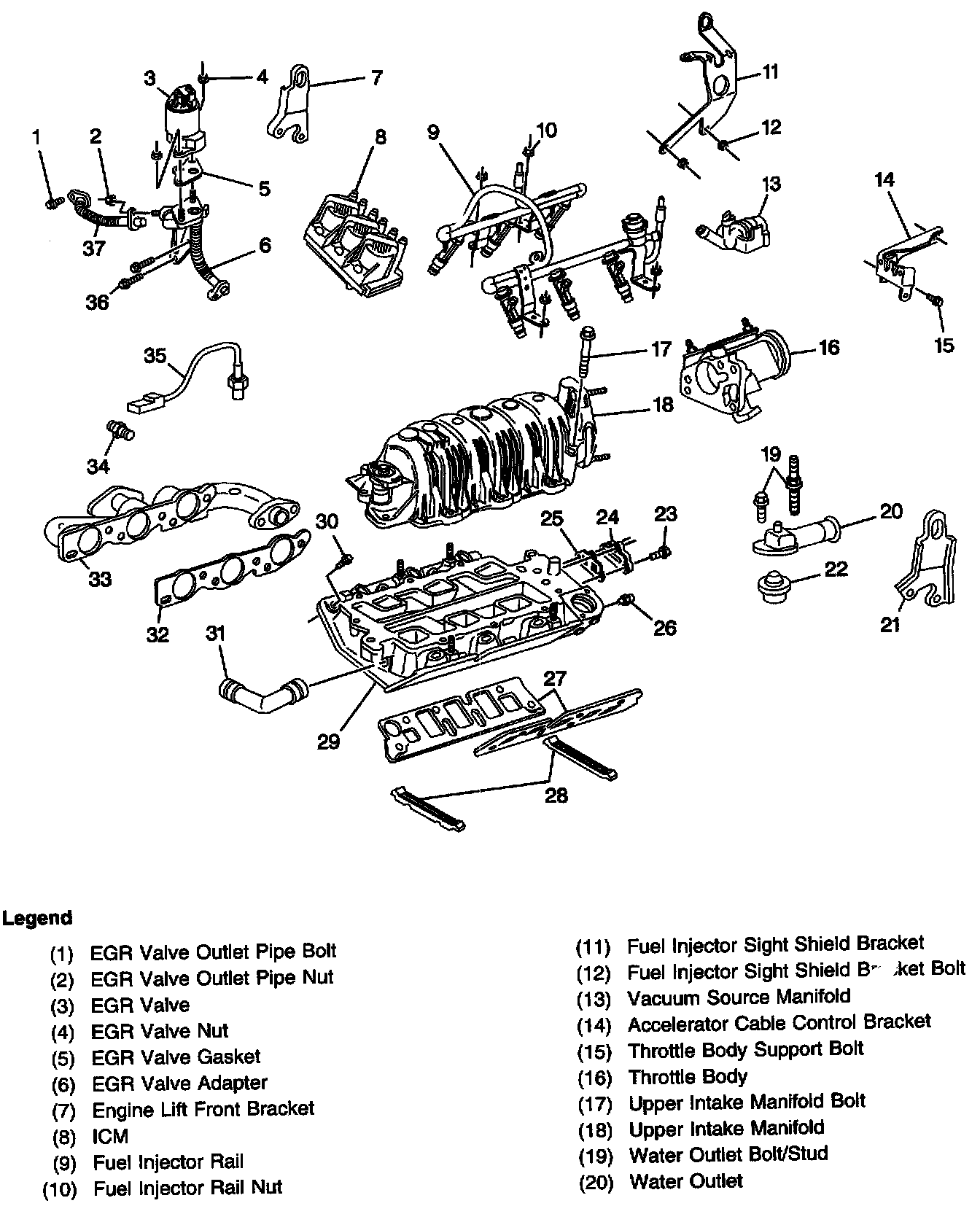

Intake Manifold and Components (C, H, W)





Part 1 of 2

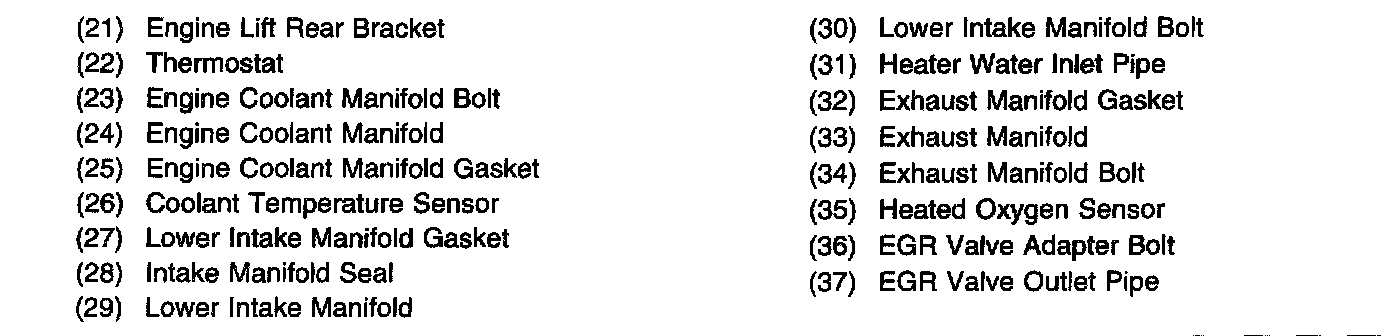

Part 2 of 2
