Power Window Switch
>>
Window Switch-Driver
Window Switch-Driver

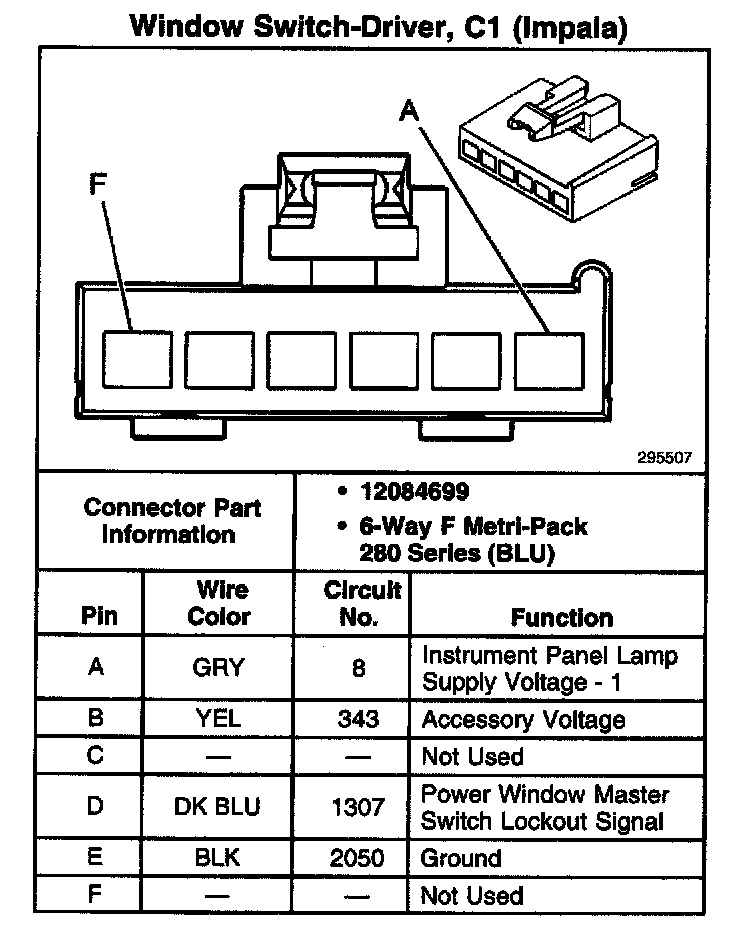

Window Switch-Driver, C1 (Impala):

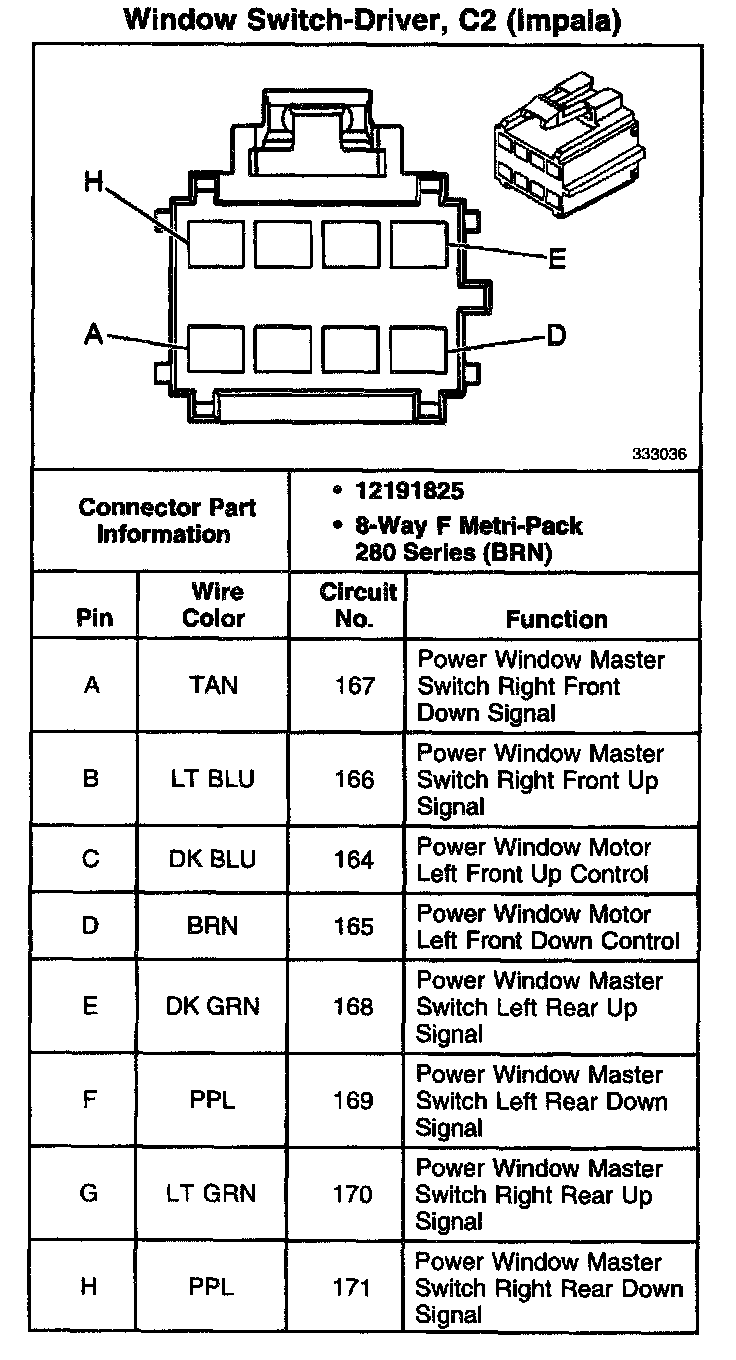

Window Switch-Driver, C2 (Impala):
