Home >> Chevrolet >> 2002 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1

C1

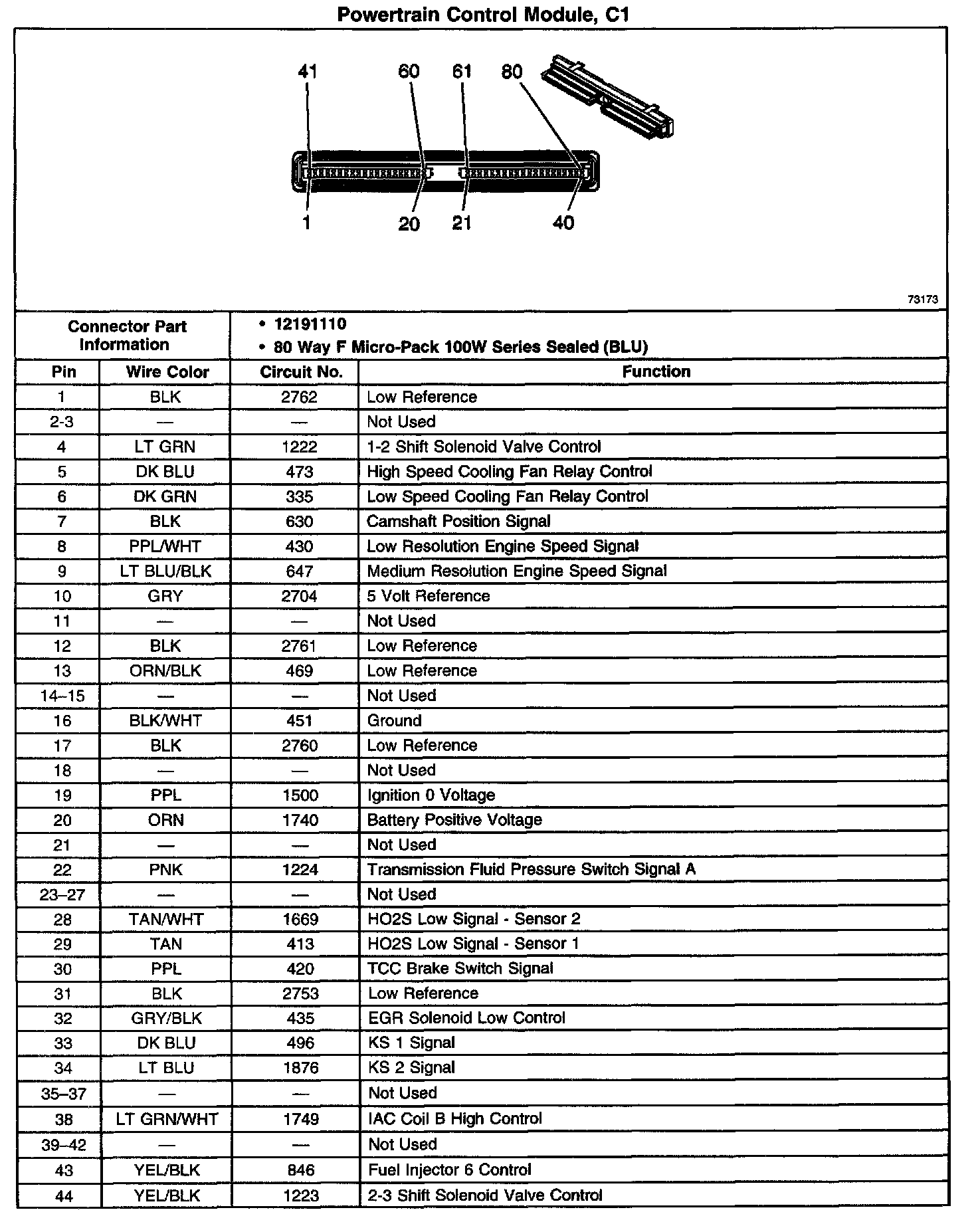

Powertrain Control Module, C1 Part 1:

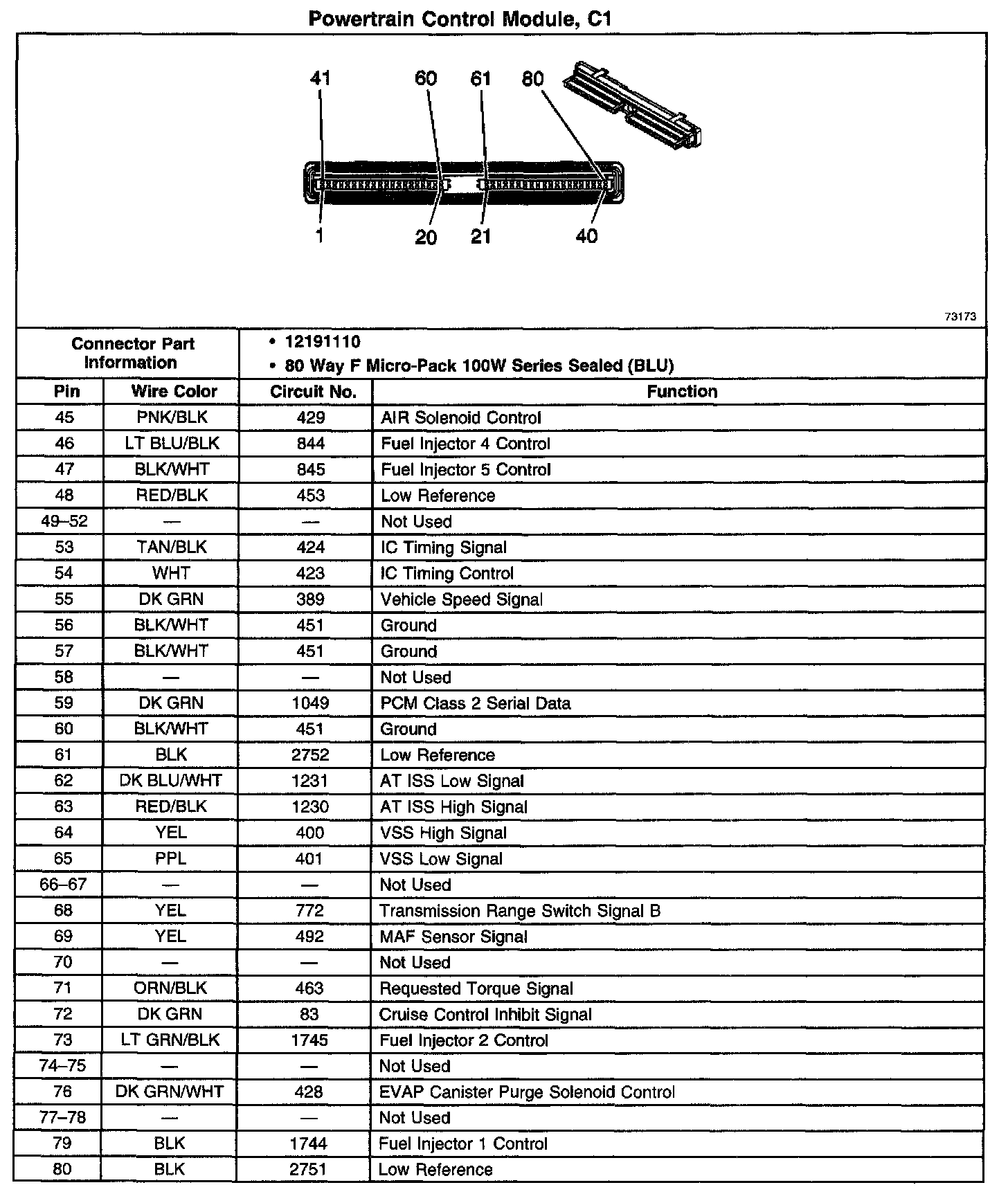

Powertrain Control Module, C1 Part 2:
