Home >> Chevrolet >> 2002 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Diagrams

Ignition Control Module: Diagrams

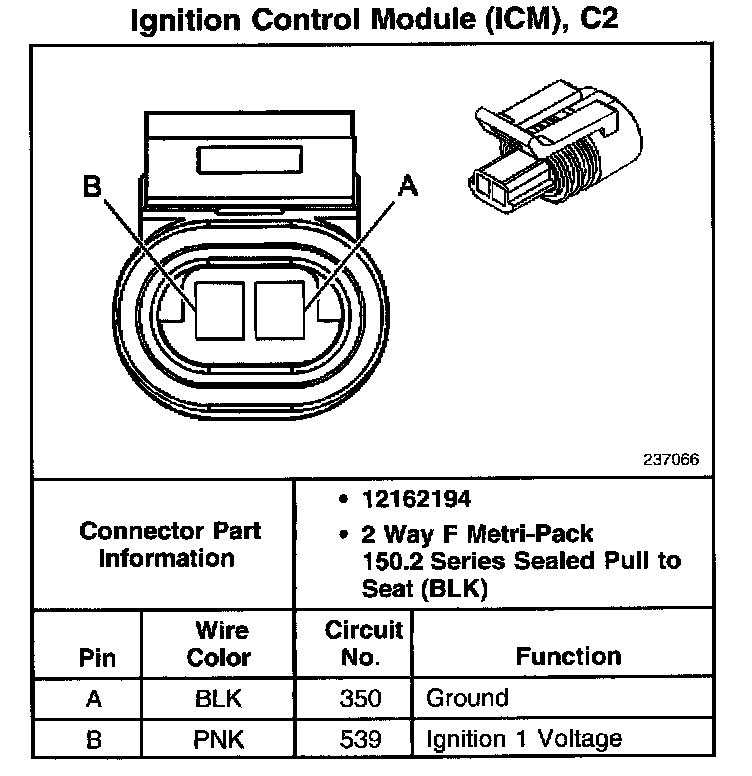

Ignition Control Module (ICM), C2:

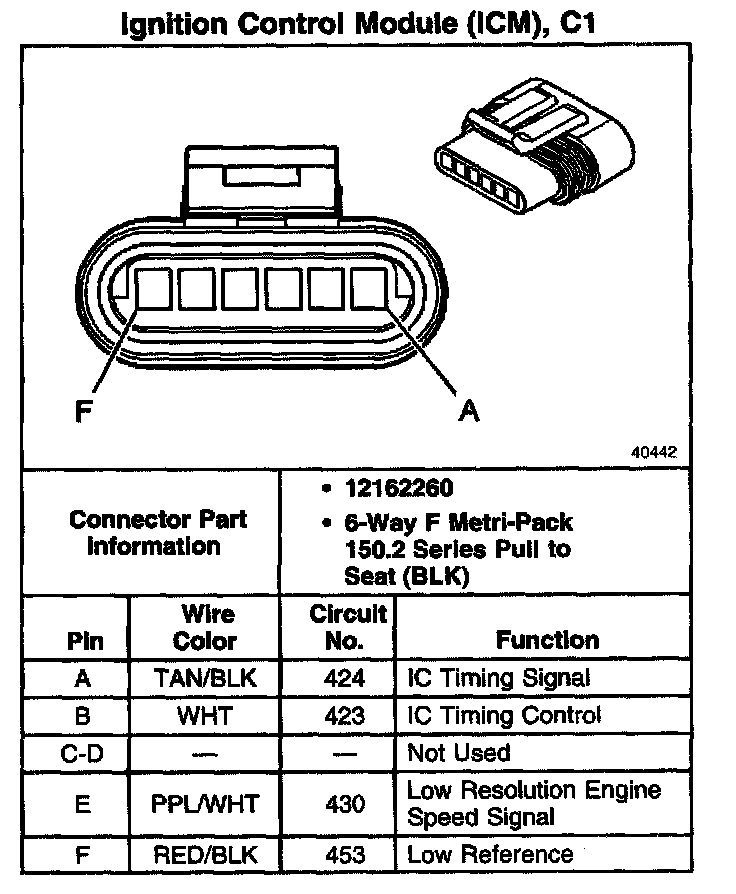

Ignition Control Module (ICM), C1:

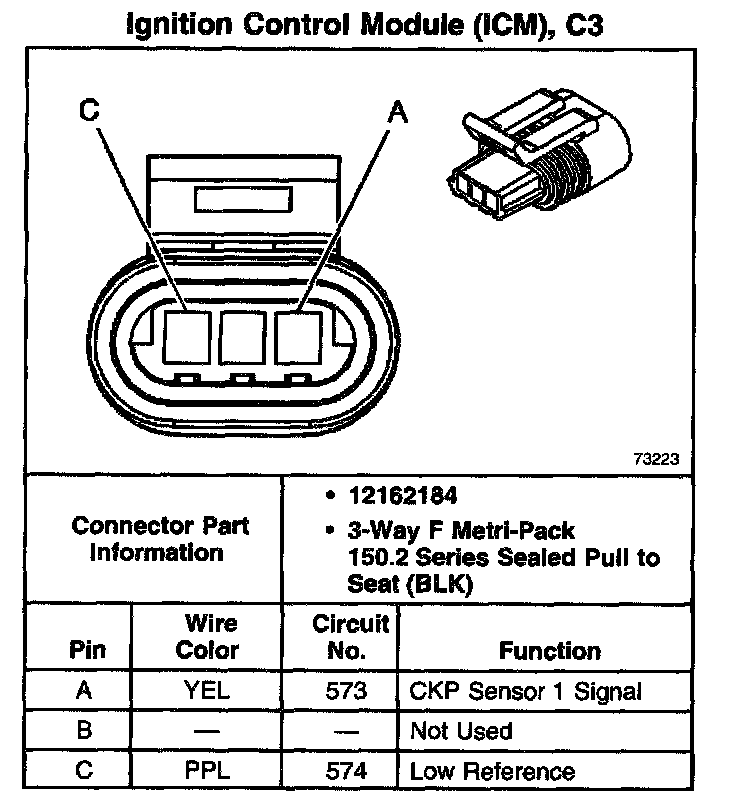

Ignition Control Module (ICM), C3:
