Home >> Chevrolet >> 2002 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C2

C2

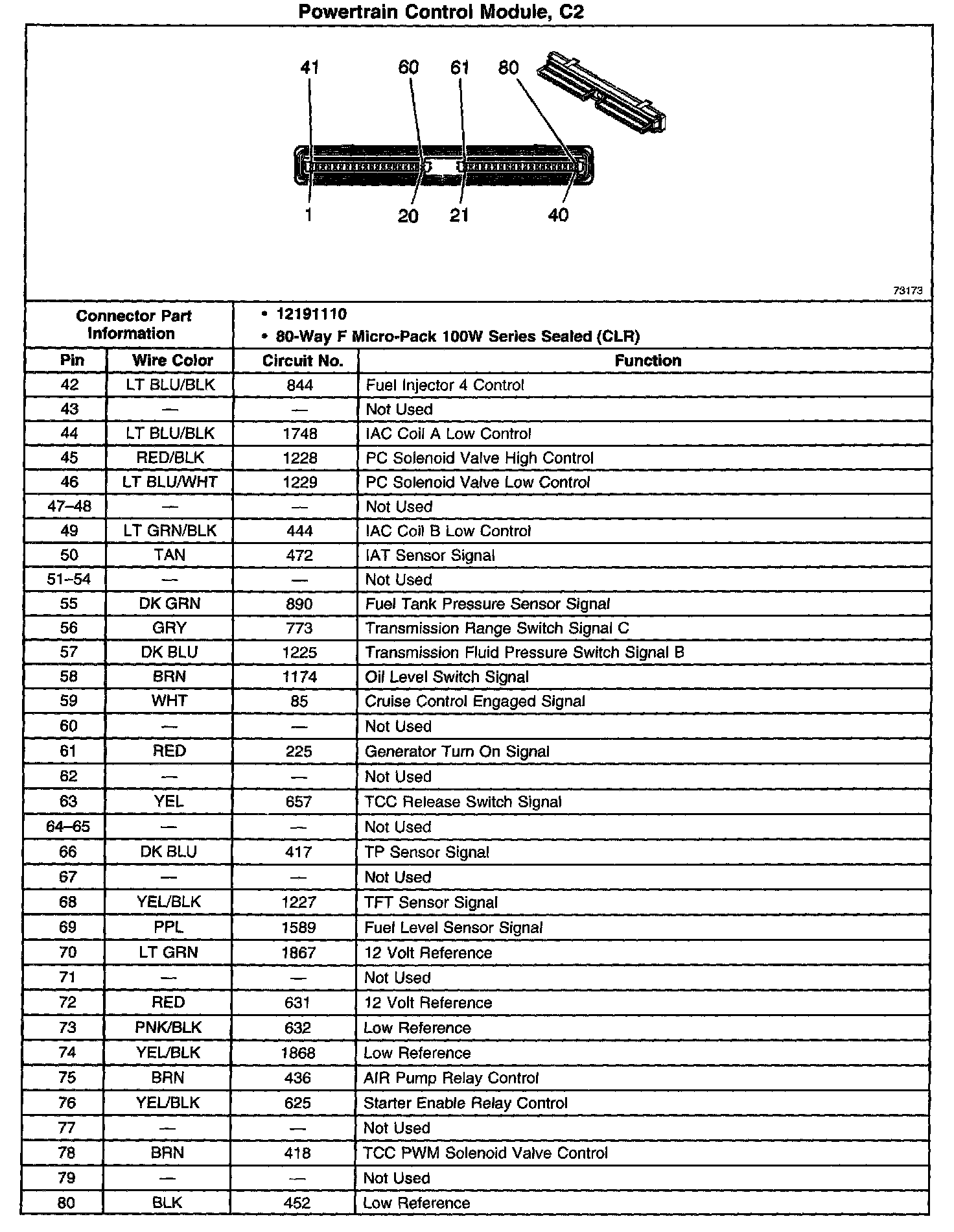

Powertrain Control Module, C2 Part 1:

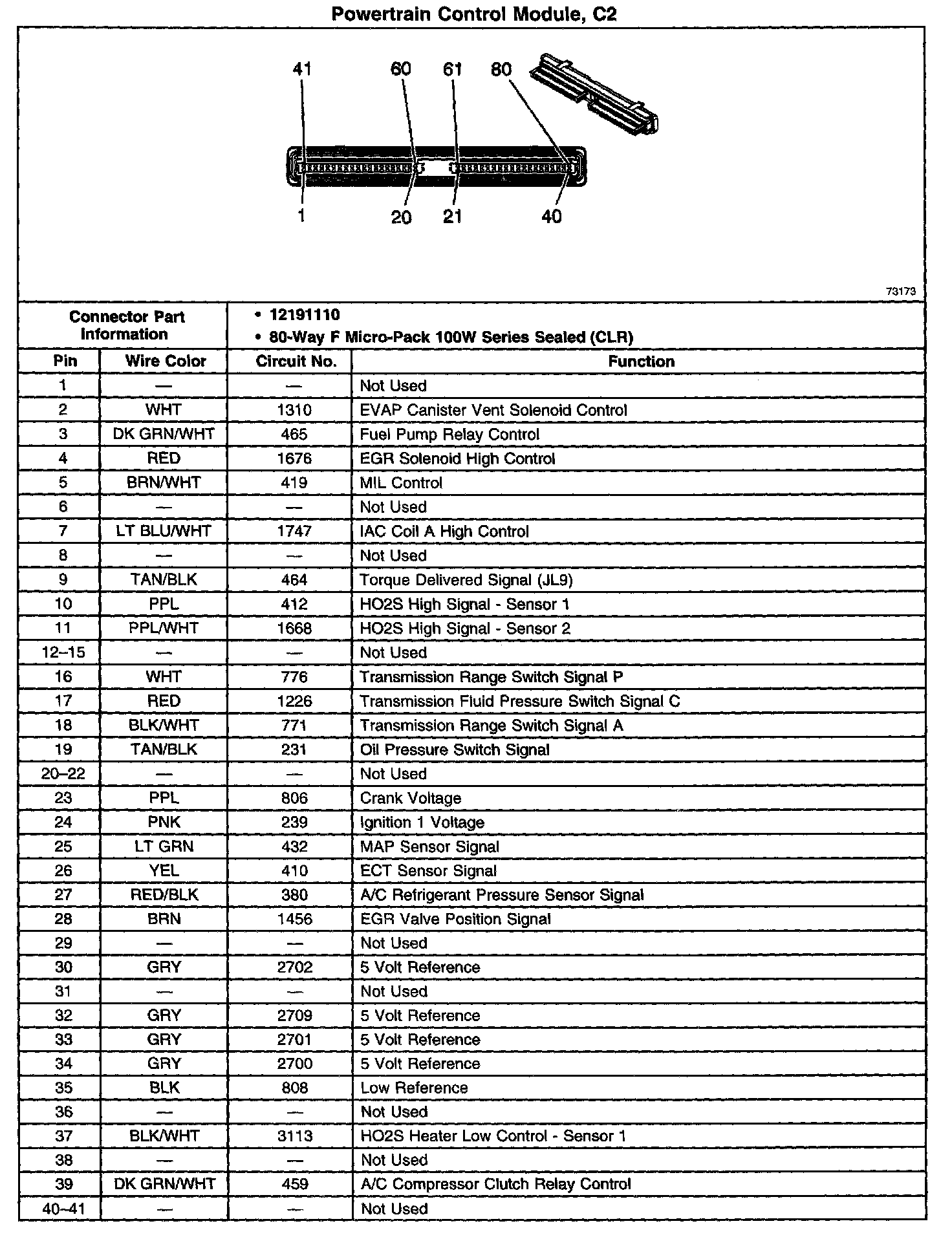

Powertrain Control Module, C2 Part 2:
