Body Control Module: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: You must perform the new body control module (BCM) setup when replacing the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration.




1. Disconnect the battery ground (negative) cable.
2. Remove the left instrument panel insulator.

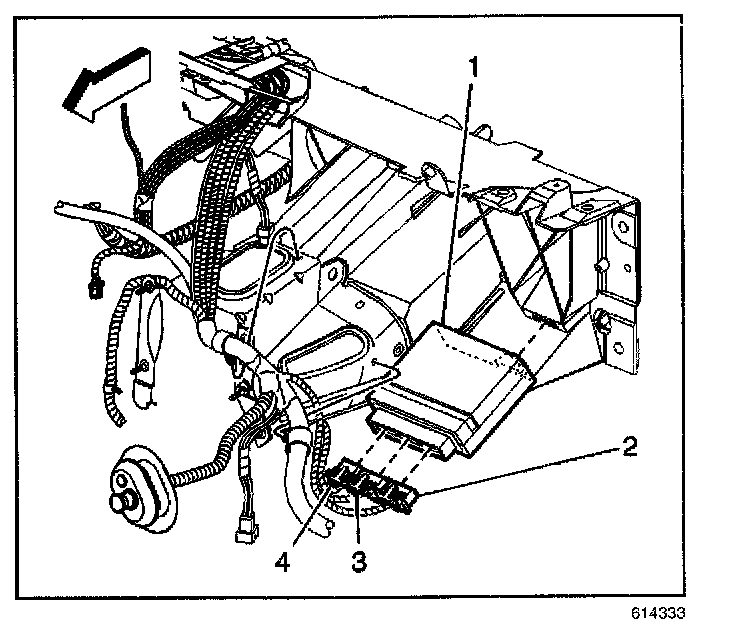

3. Disconnect the BCM electrical connectors (2,3,4).
4. Remove the BCM (1).

INSTALLATION PROCEDURE




1. Install the body control module (BCM) (1).
2. Connect the BCM electrical connectors (2,3,4).
3. Install the left instrument panel insulator.
4. Connect the battery ground (negative) cable.
5. Perform the new BCM setup. Refer to Body Control Module (BCM) Programming/RPO Configuration. Programming and Relearning
