Home >> Chevrolet >> 2001 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Module HVAC >> A/C Compressor Control Module C1

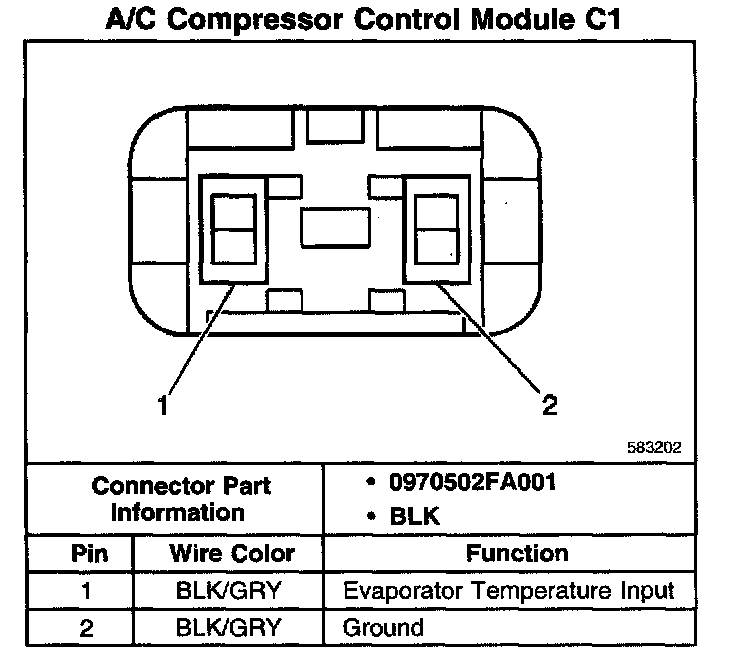

A/C Compressor Control Module C1

A/C Compressor Control Module C1:
