Home >> Chevrolet >> 2001 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C2

C2

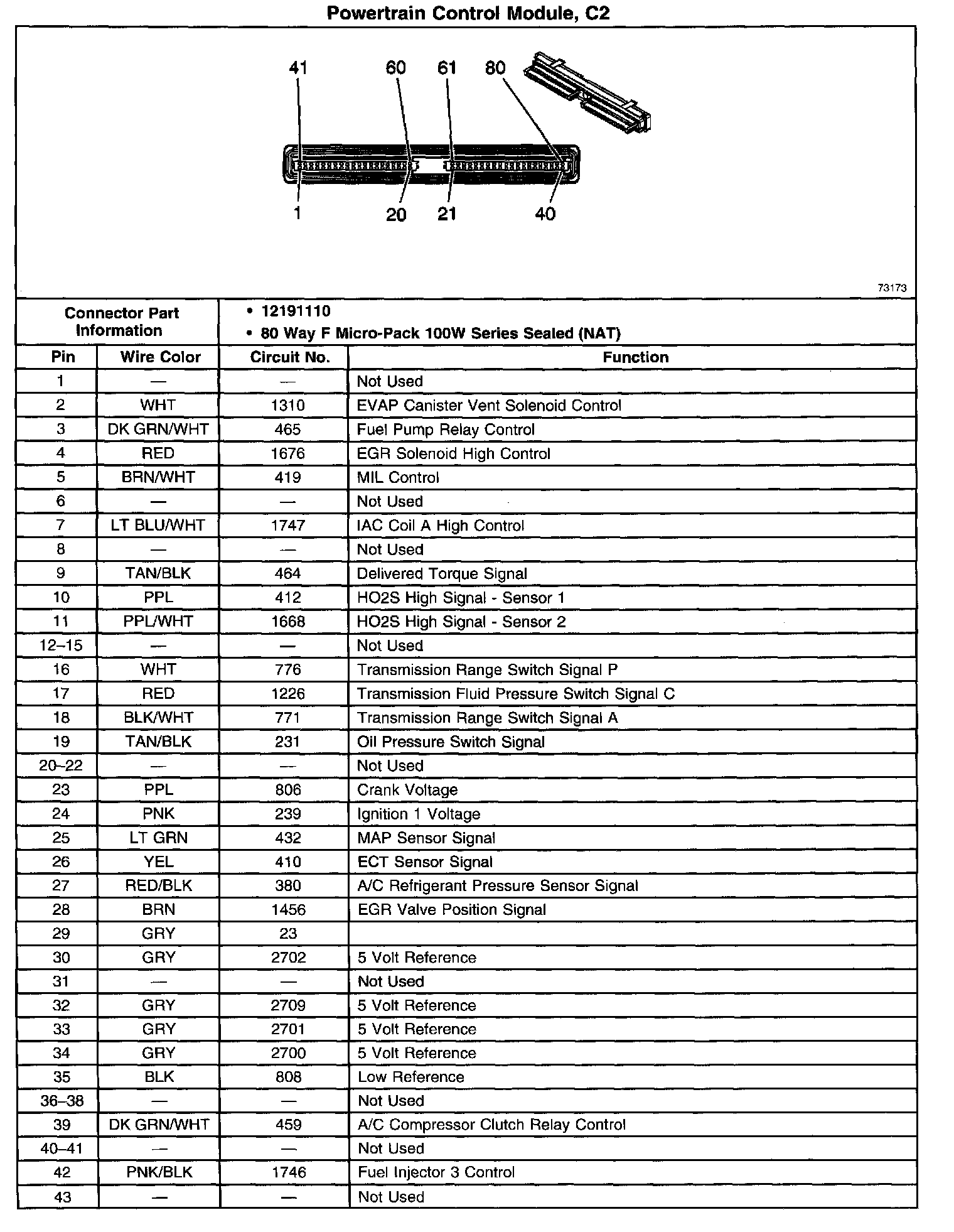

Powertrain Control Module, C2 (Part 1 Of 2):

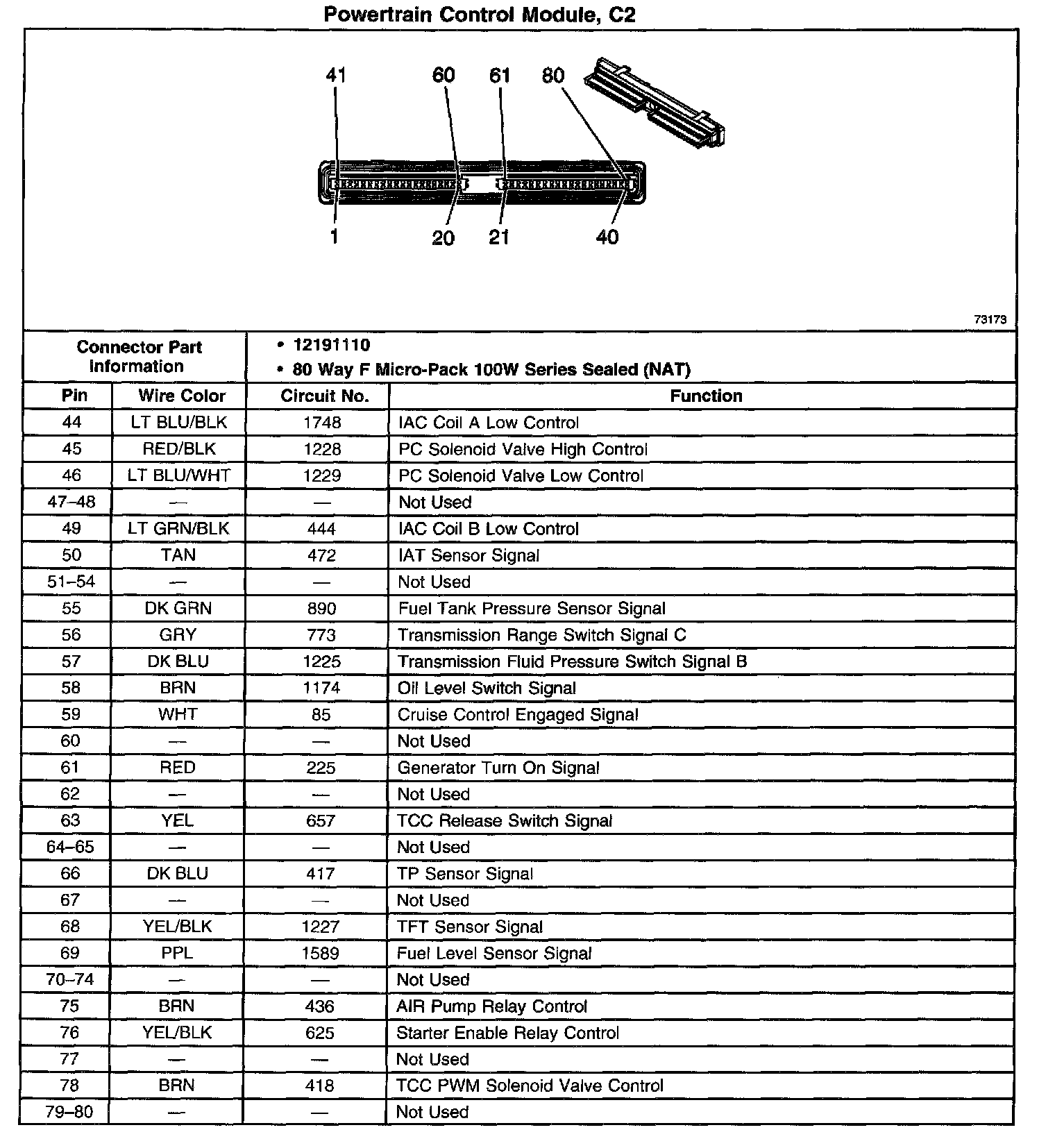

Powertrain Control Module, C2 (Part 2 Of 2):
