Home >> Chevrolet >> 2001 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC Control Module, C2

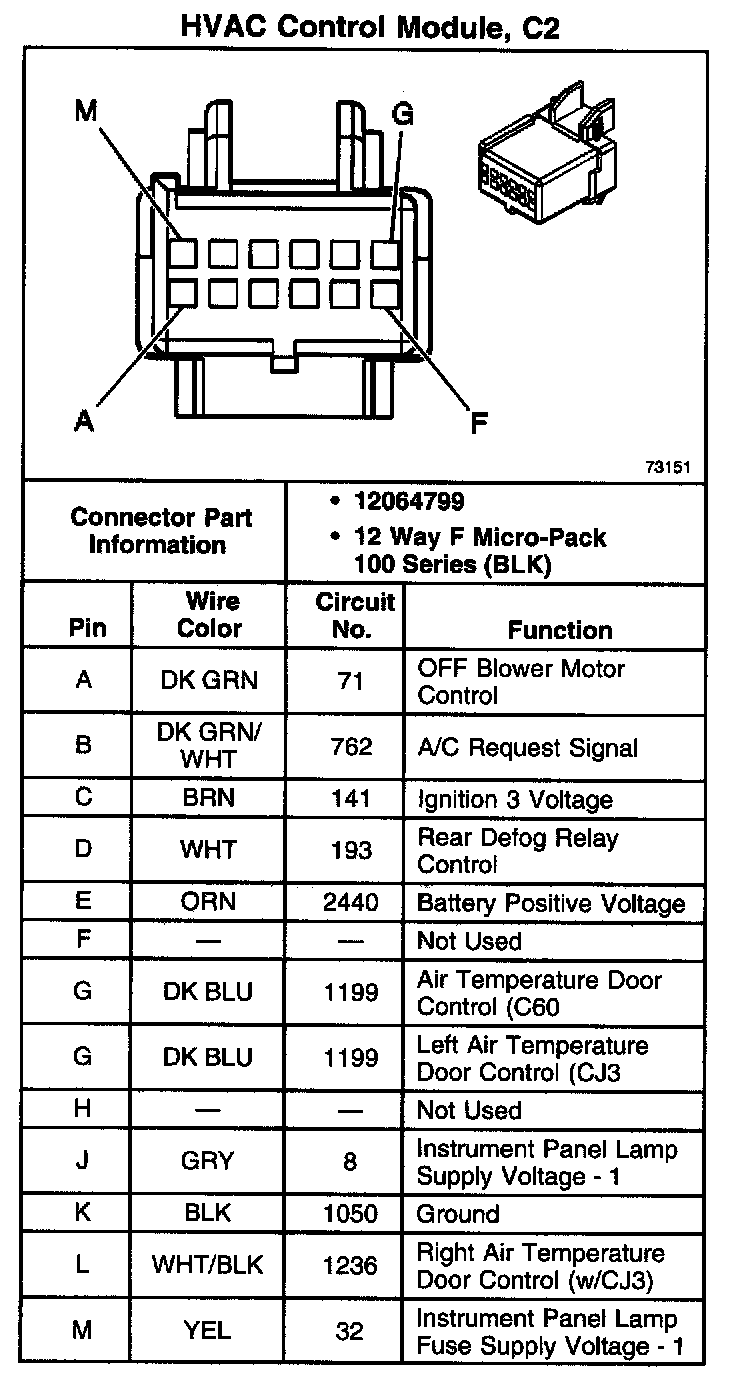

HVAC Control Module, C2

HVAC Control Module, C2:
