Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

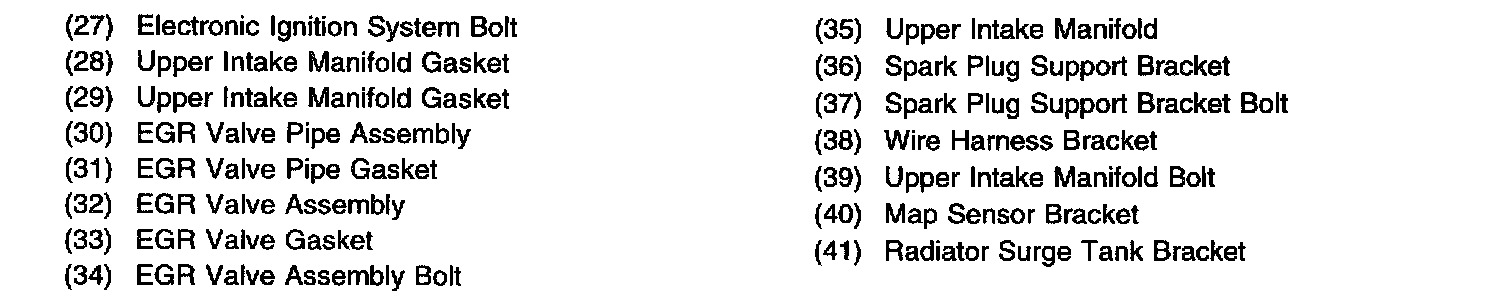

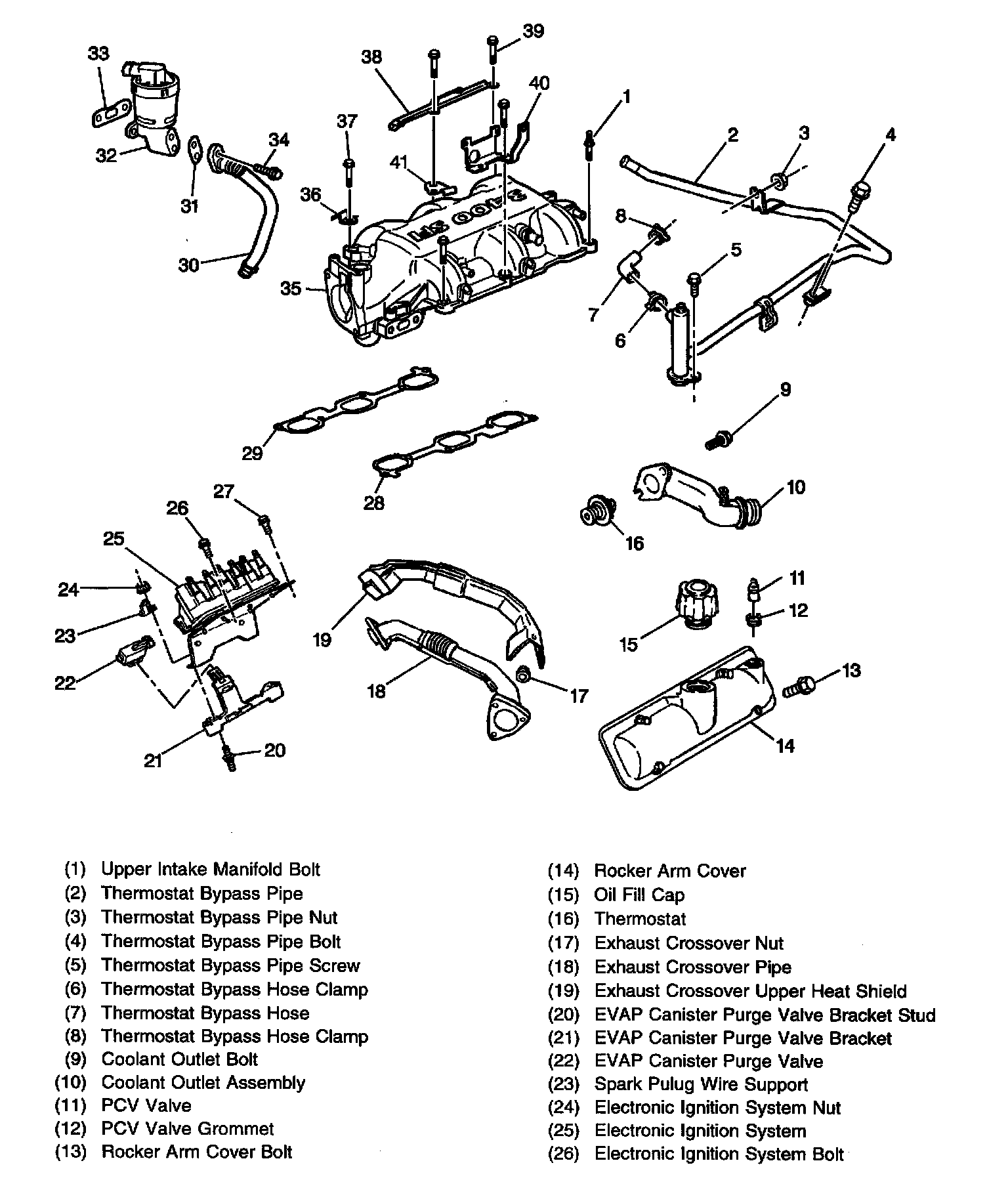

Upper Intake Manifold and Components

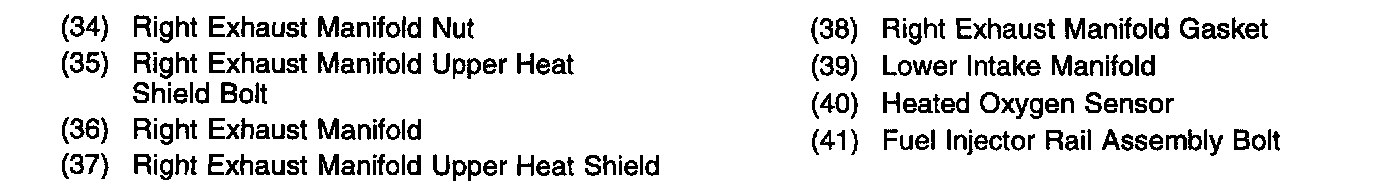

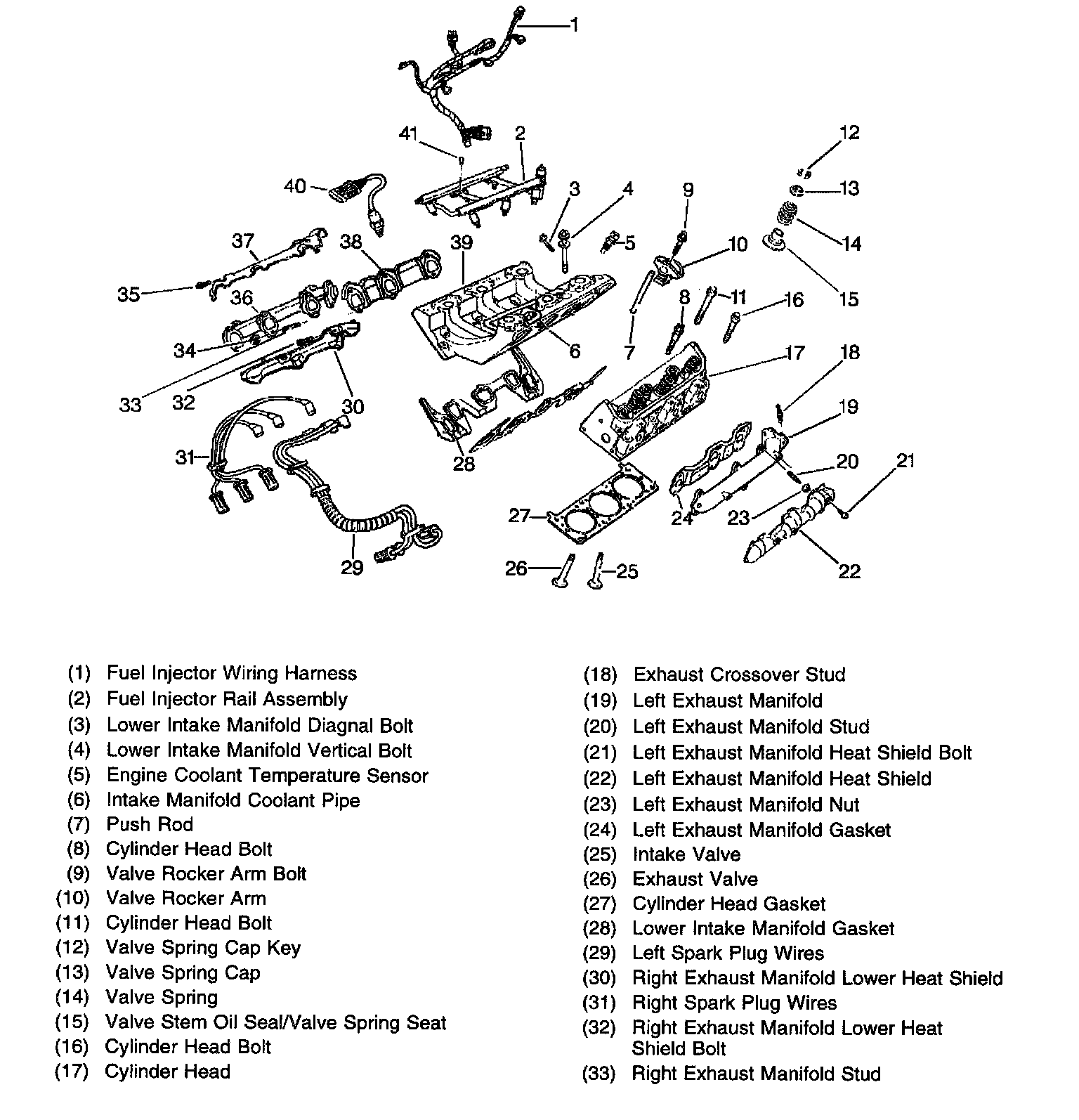

Lower Intake Manifold, Cylinder Head, and Components

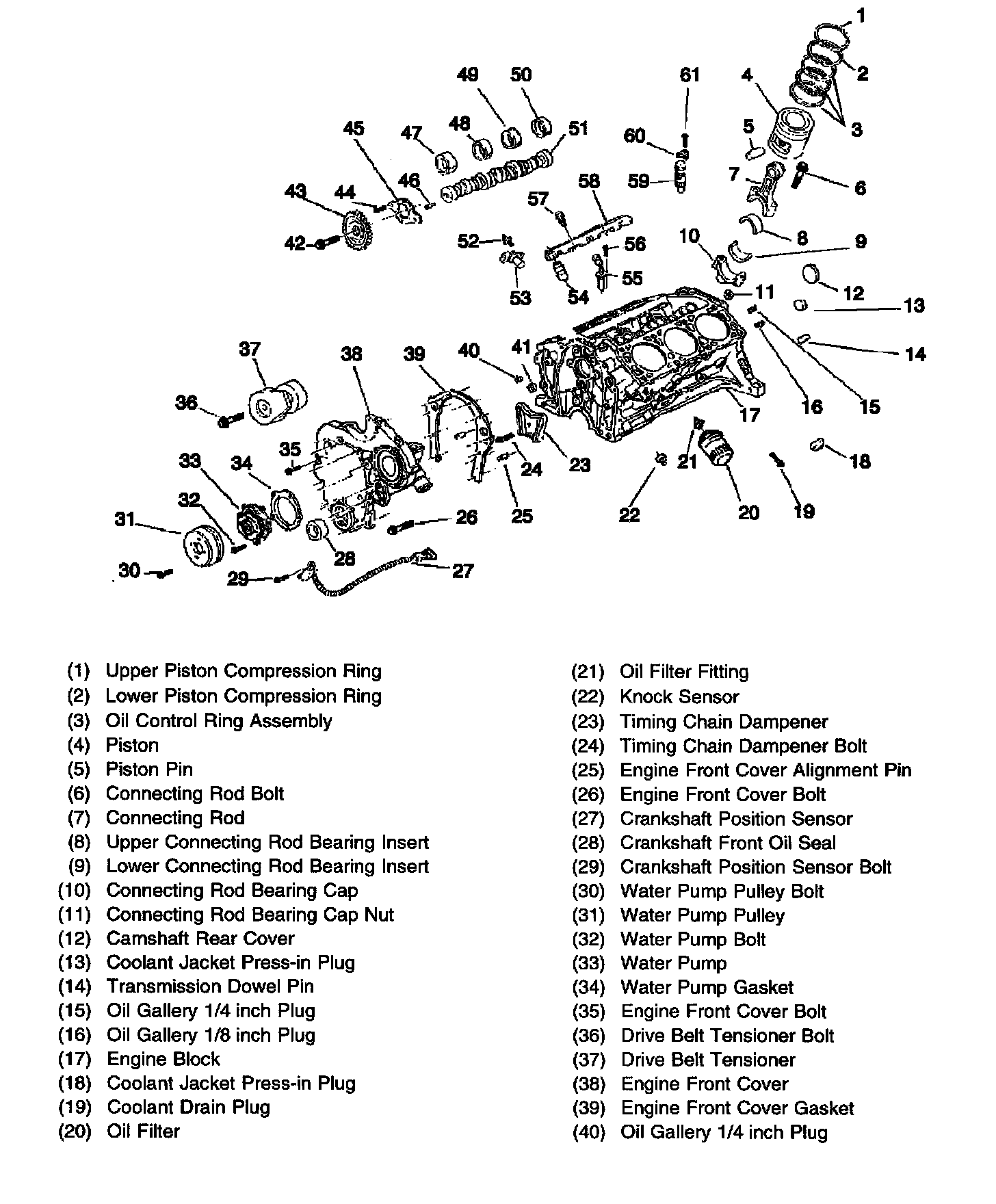

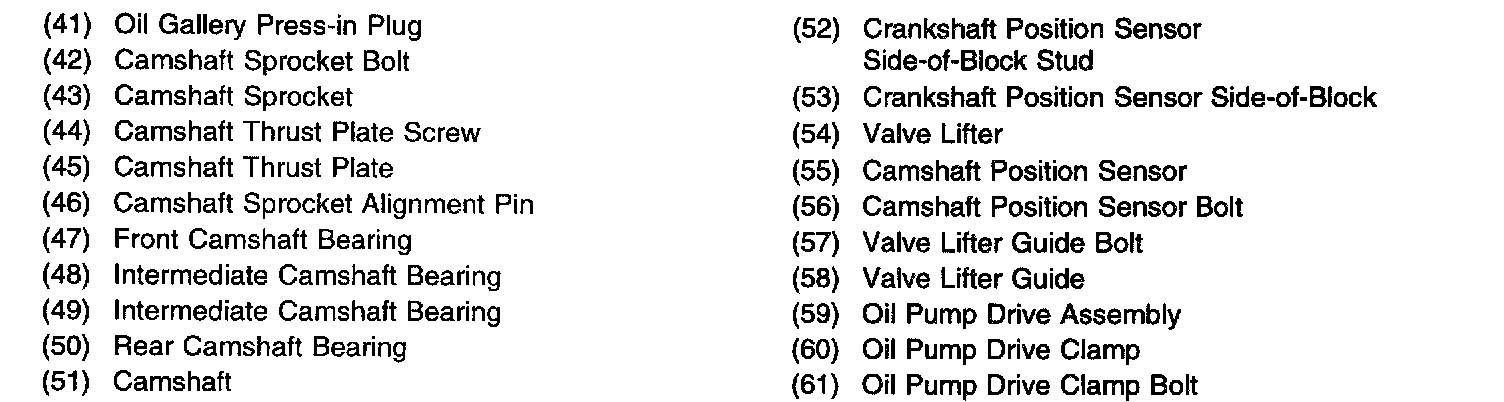

Engine Block and Components

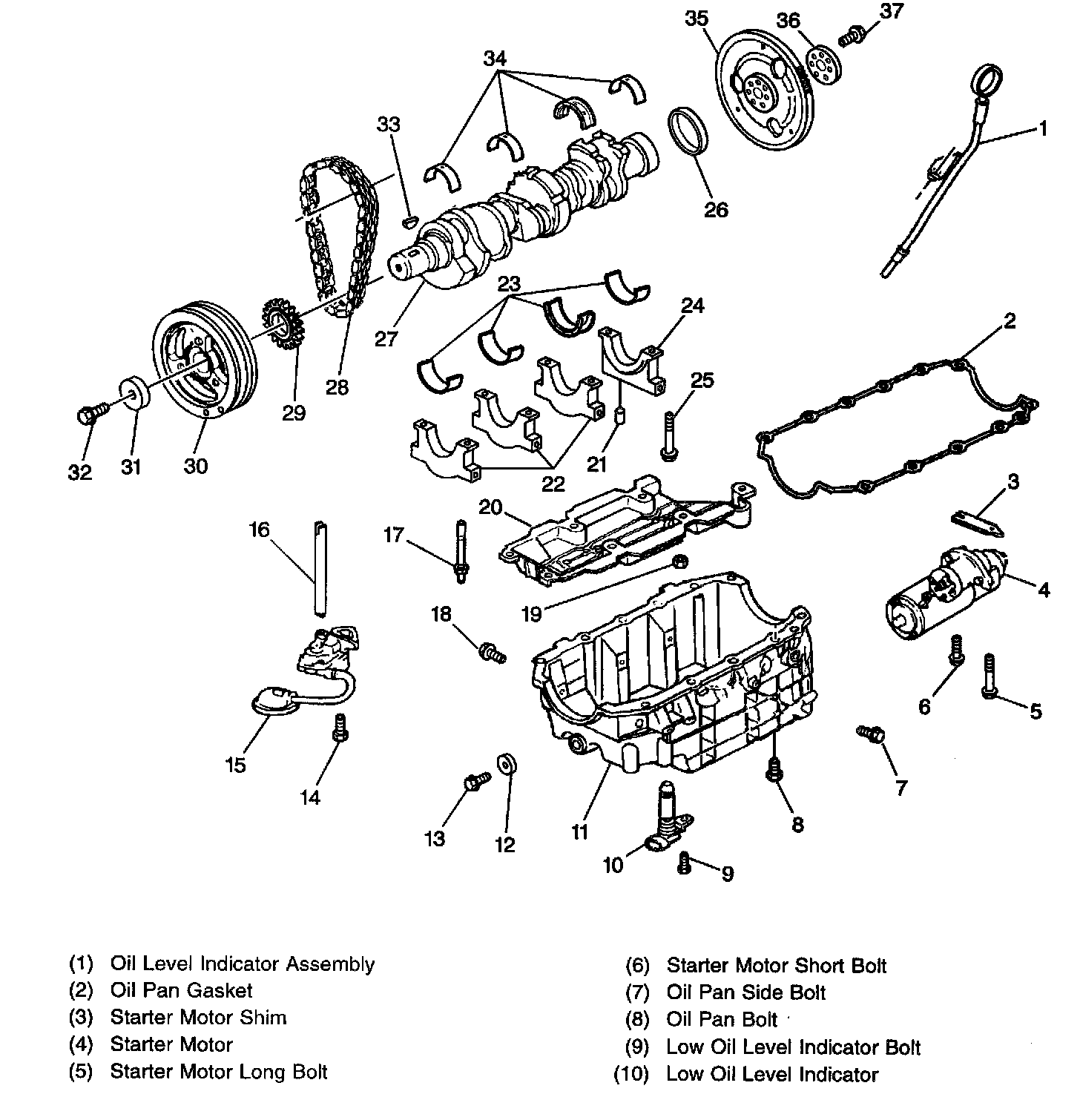

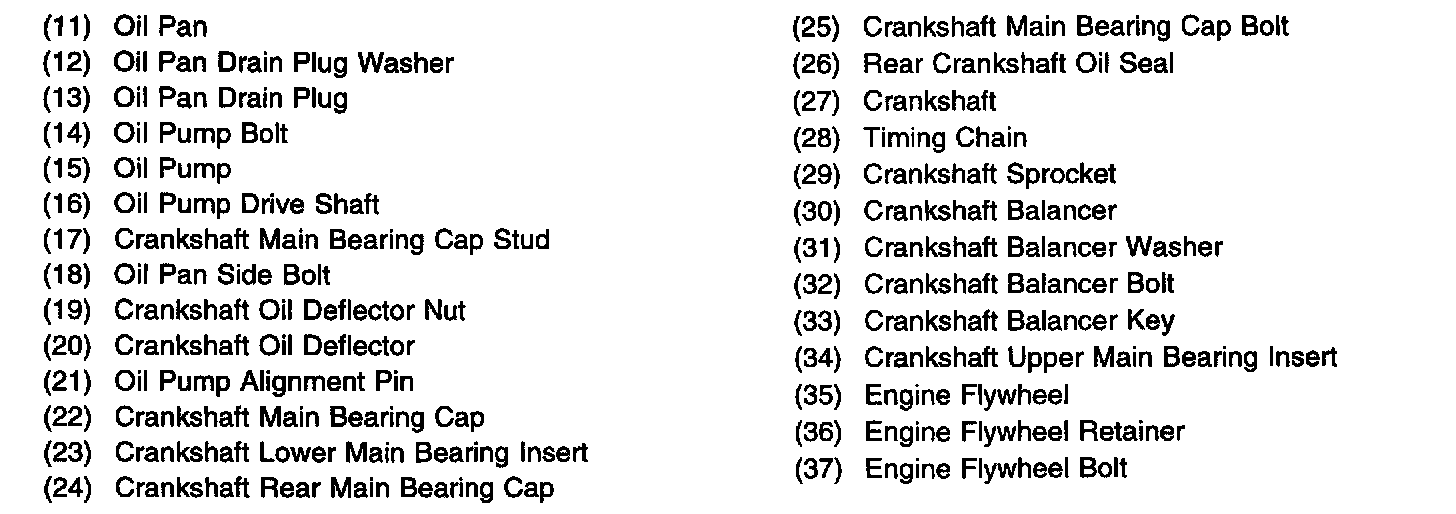

Crankshaft and Components
