Body Control Module (BCM) C2

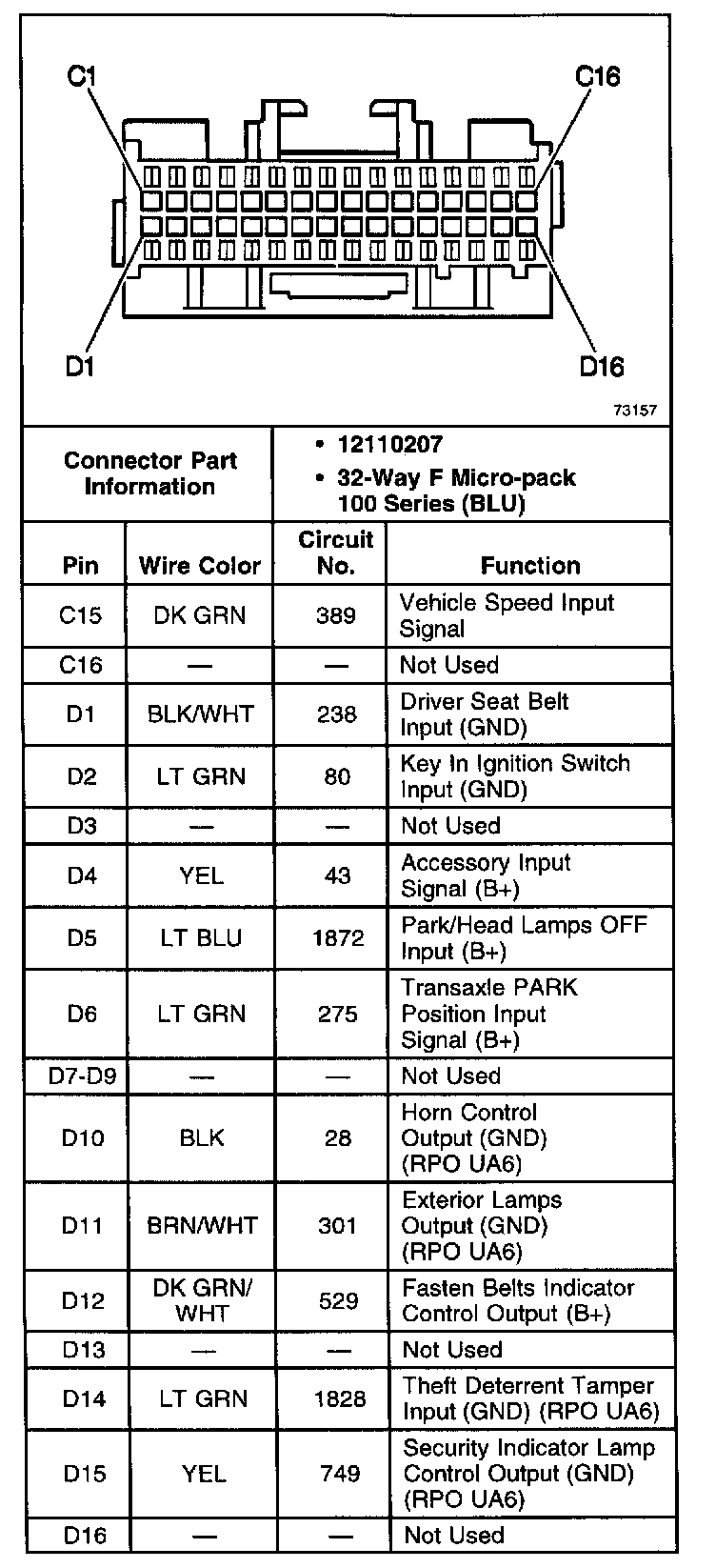

Body Control Module (BCM) C2 (Part 1 Of 2):

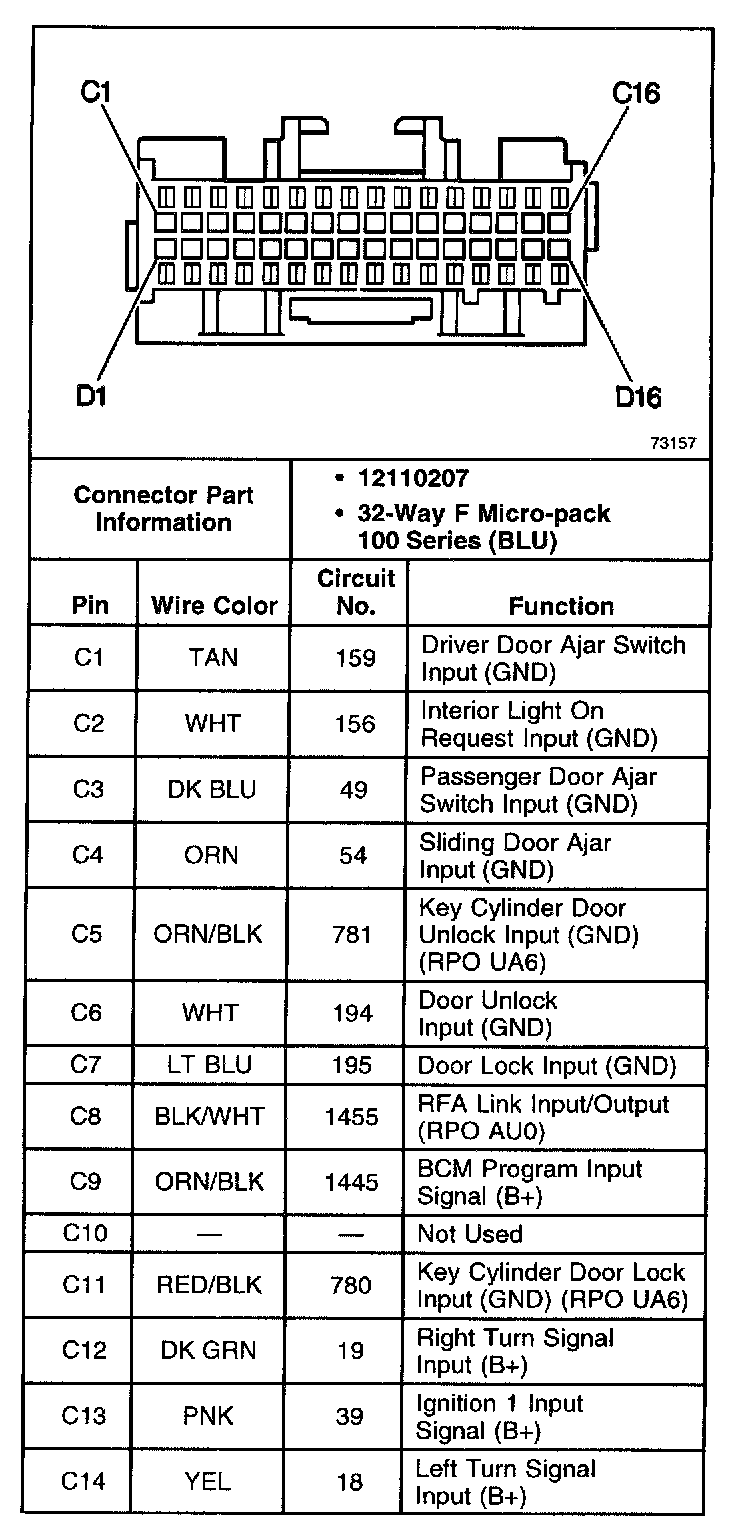

Body Control Module (BCM) C2 (Part 2 Of 2):
