lemon-mirror
:
Home
>>
Chevrolet
>>
2000
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module (BCM) C1
Body Control Module (BCM) C1

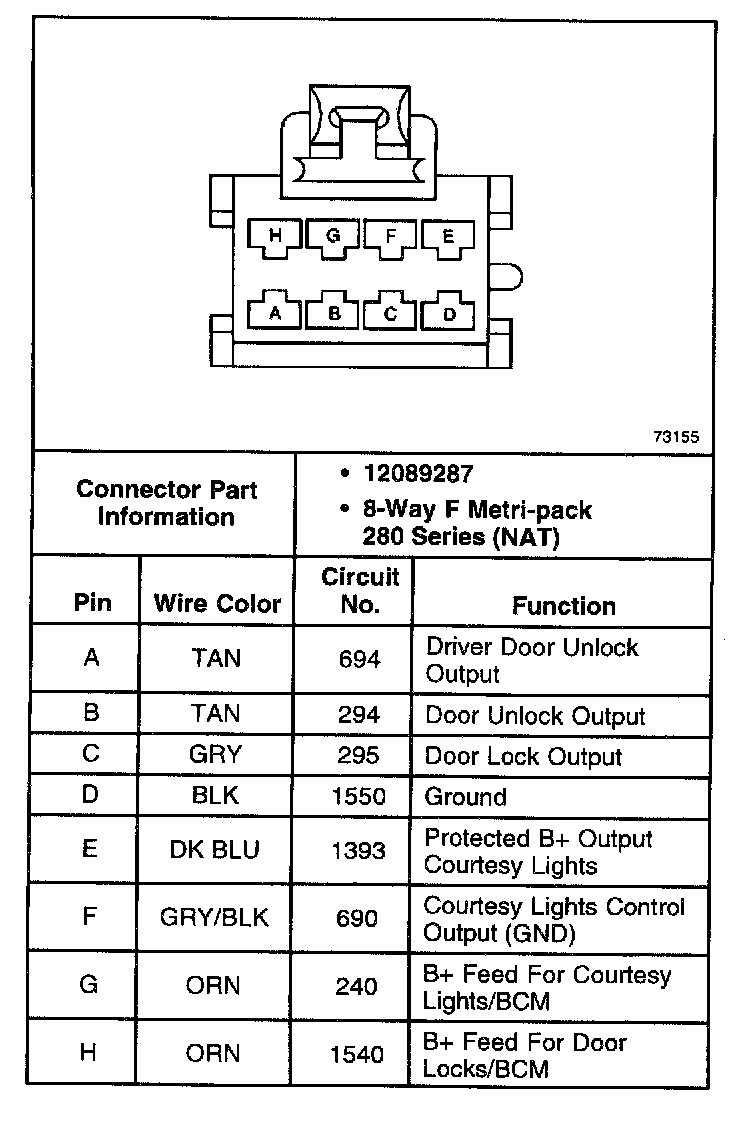

Body Control Module (BCM) C1:
