Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Rear Side Door Actuator Control Module

Rear Side Door Actuator Control Module

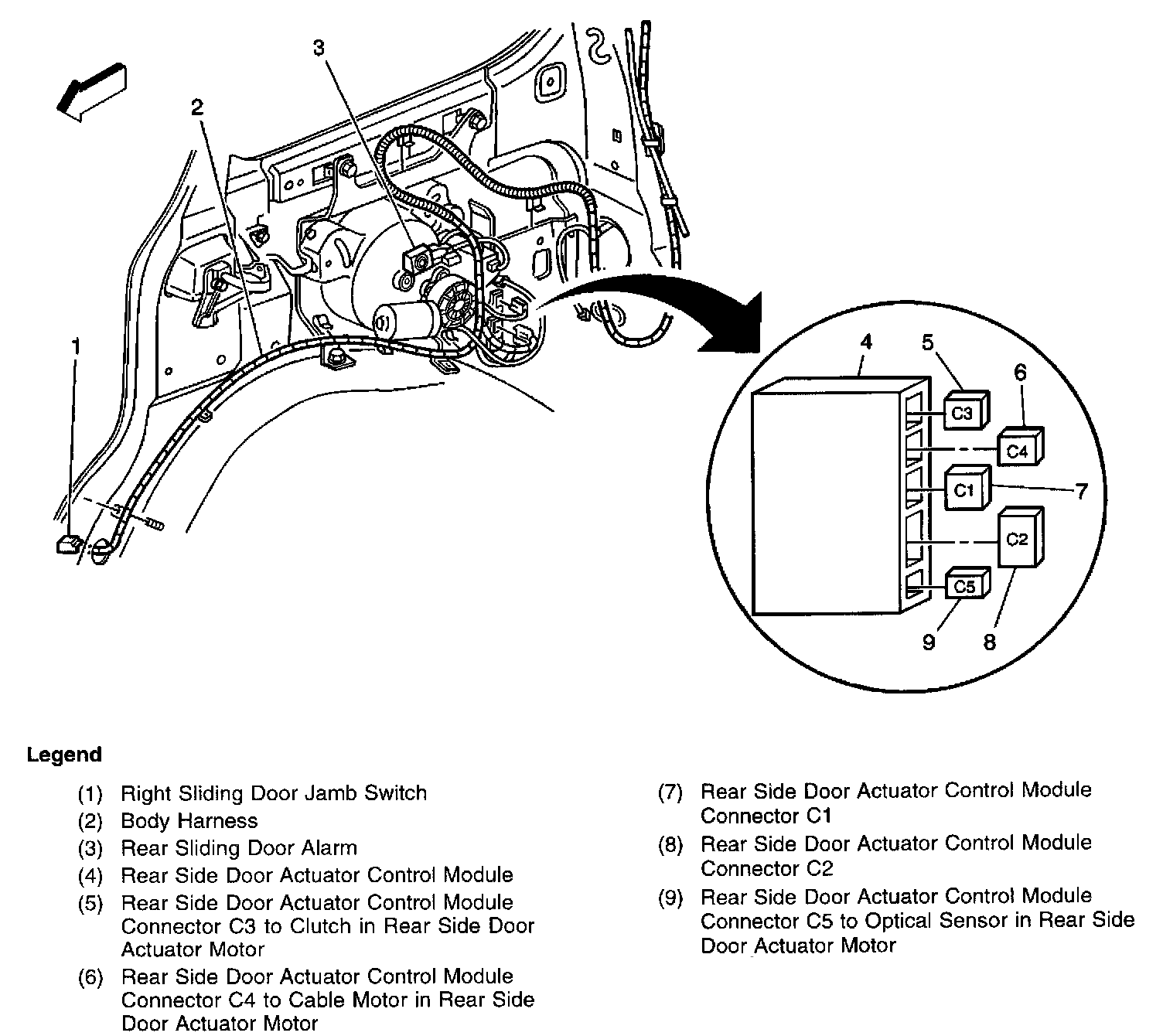

Locations View:




Part of the rear side door actuator motor, right quarter panel, above the wheelhouse
