Interface Module (IM)

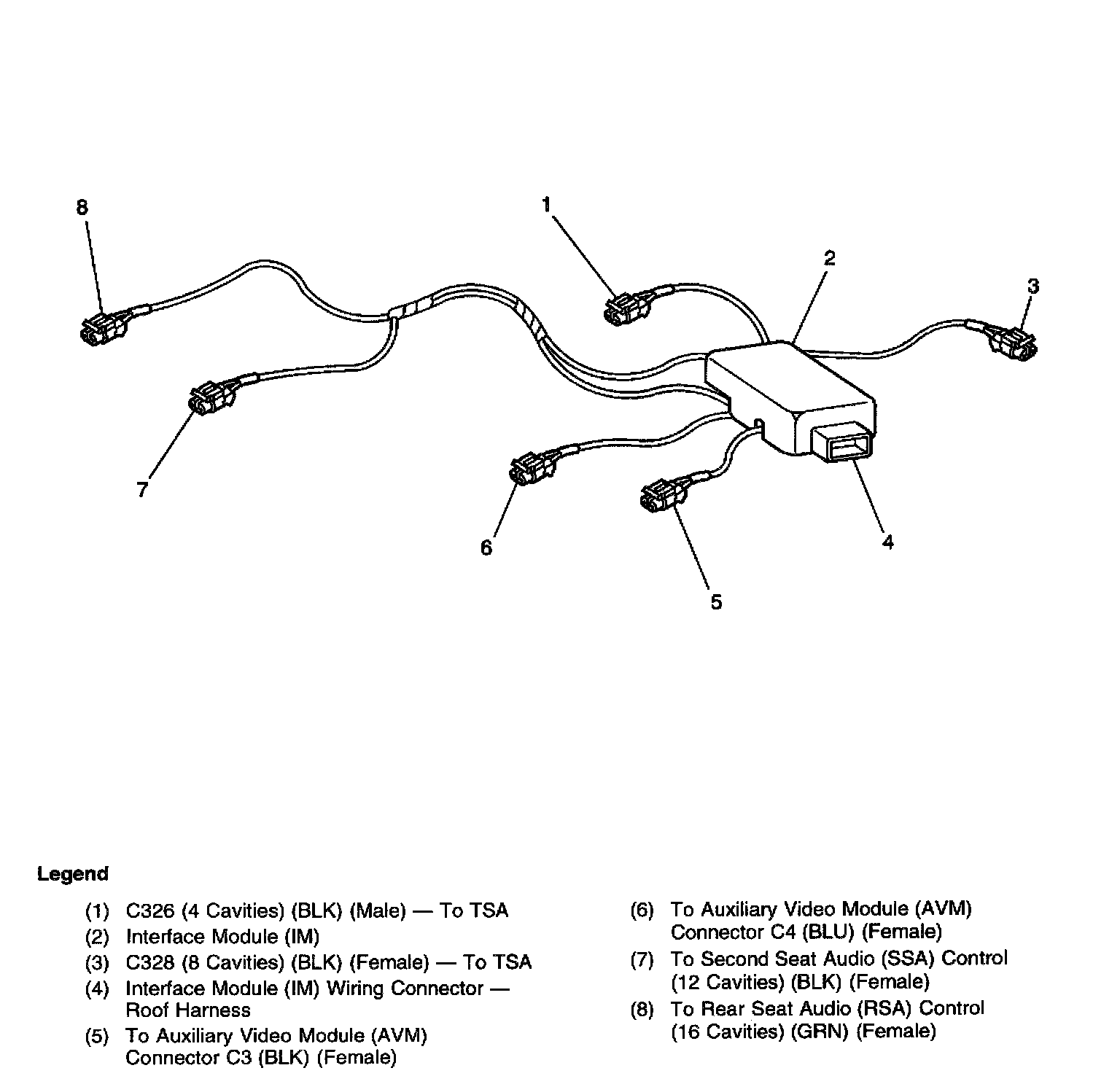

Interface Module (IM)

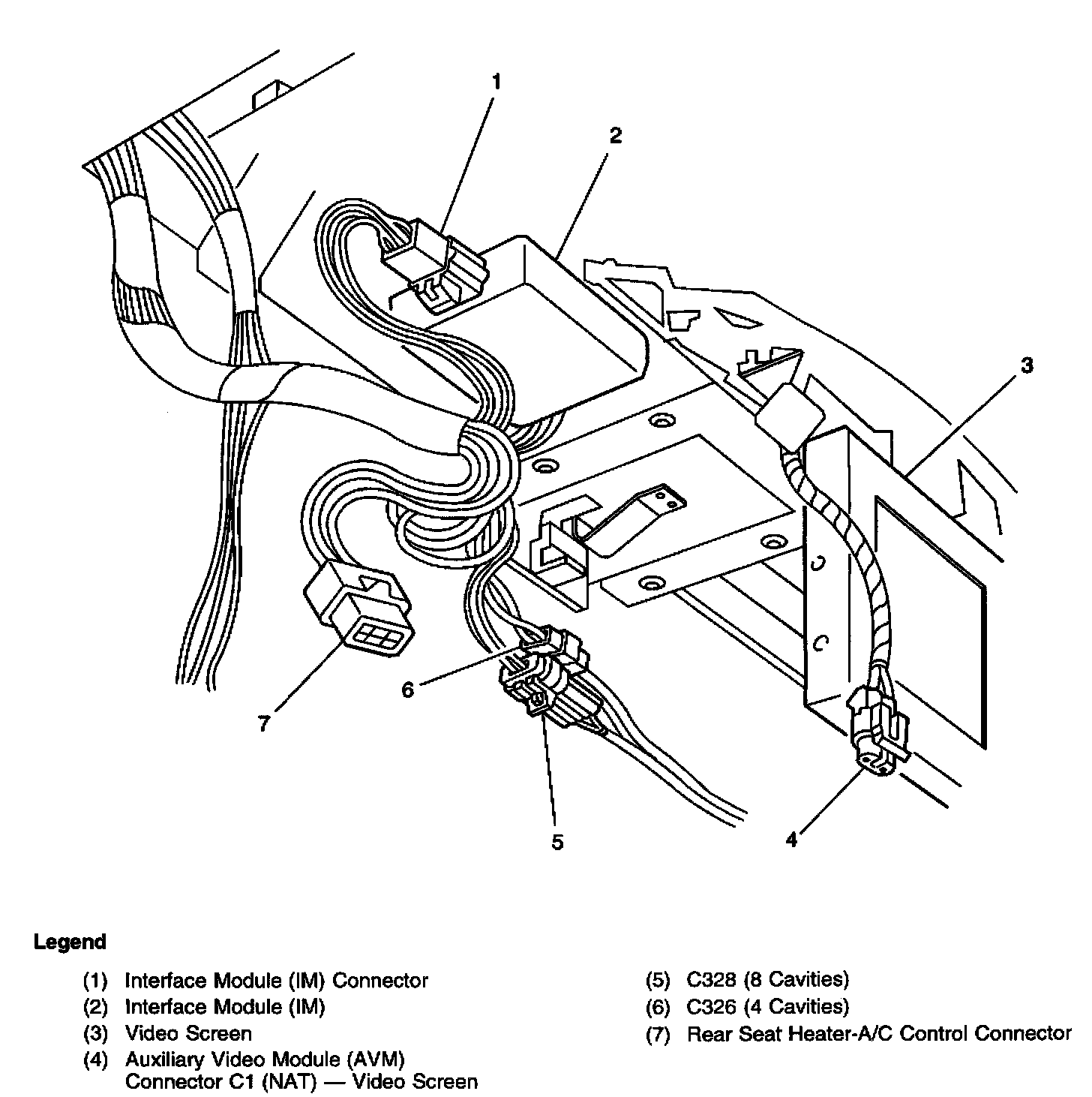

Locations View:
Locations View:
Inside overhead console, left corner
