Chevrolet
>>
2000
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Brake Modulator
Brake Modulator

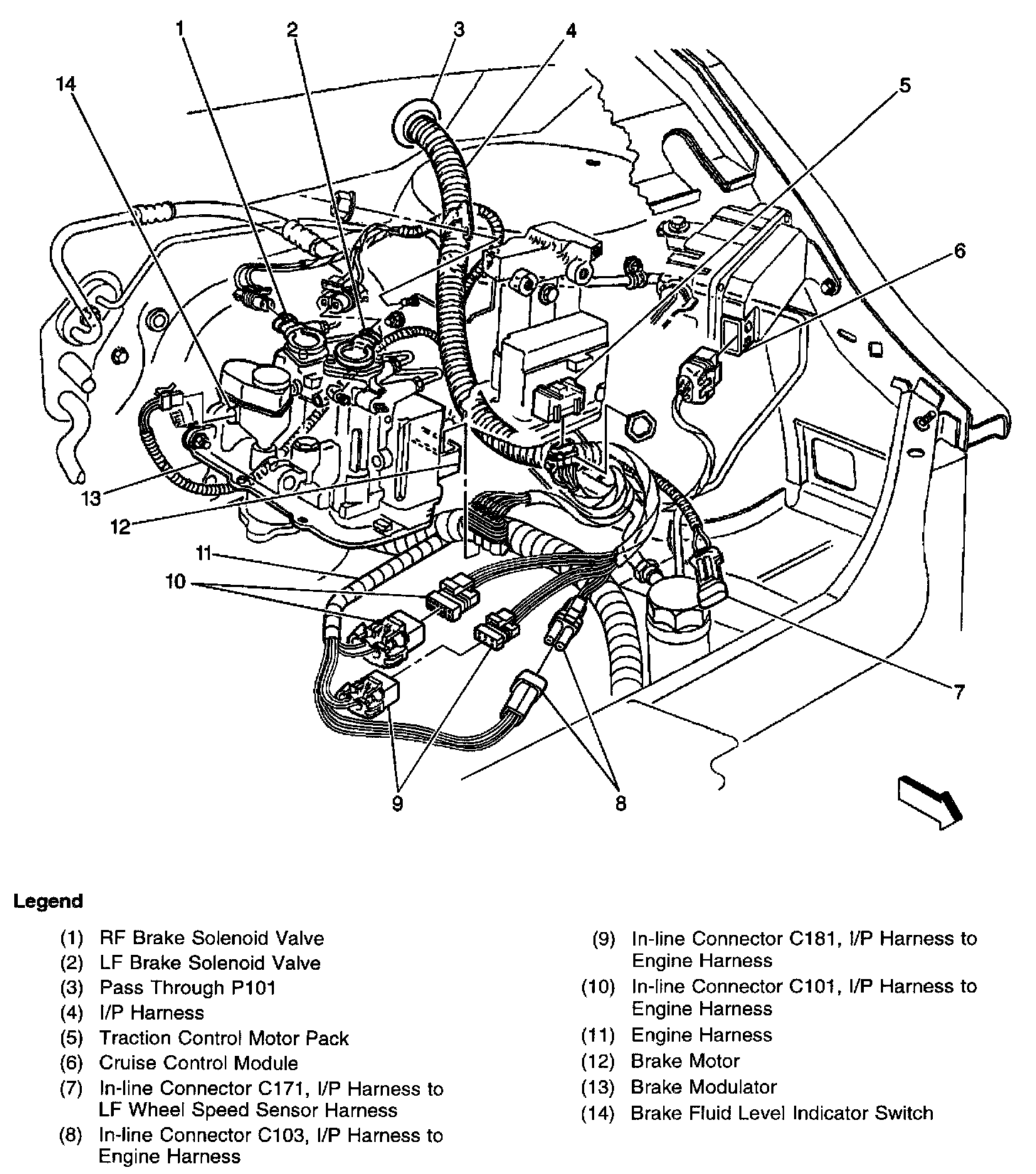

Locations View:
Left side of the engine compartment, mounted to the brake master cylinder
