Main Relay (Computer/Fuel System): Service and Repair

REMOVAL PROCEDURE
1. Turn OFF the ignition switch before removing the main relay.

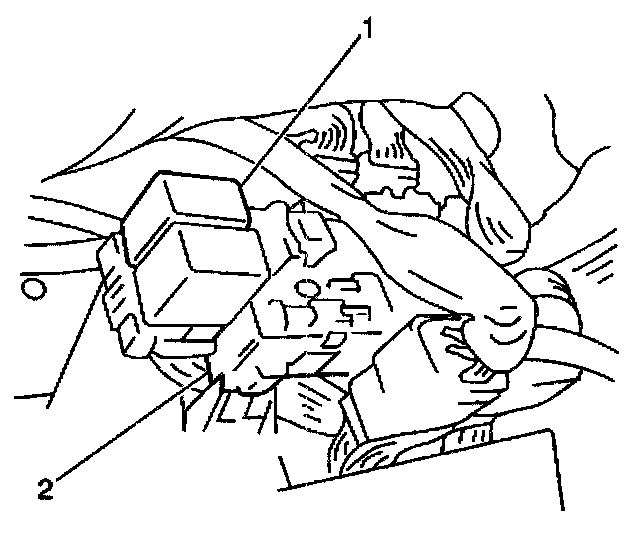

2. Remove the main relay (1) from the junction block (2).

INSTALLATION PROCEDURE
1. Install the main relay (1) to the junction block (2).
2. Turn ON the ignition in order to test the operation of the main relay.
