Home >> Chevrolet >> 2000 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

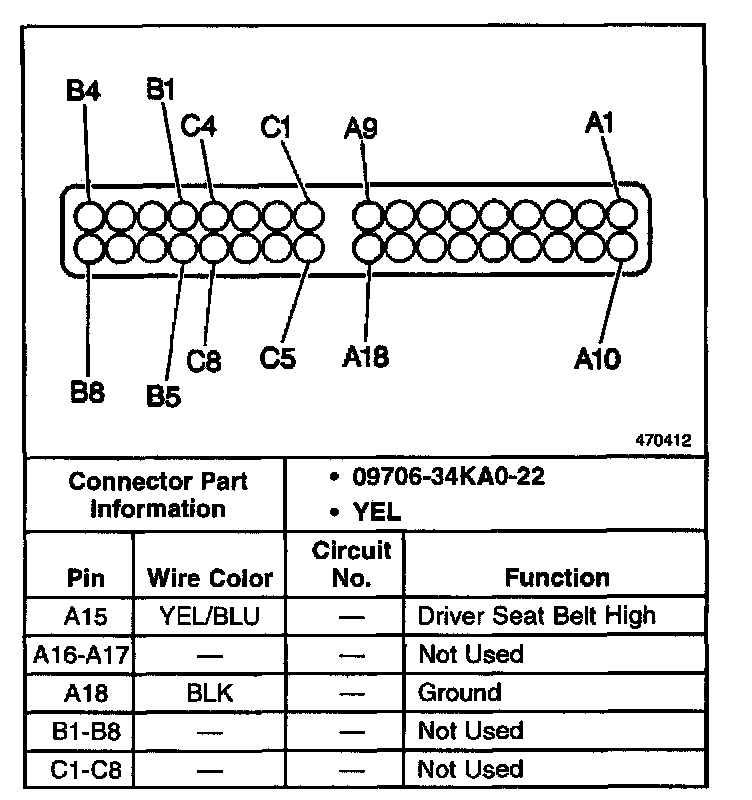

Connector View ( Part 1 Of 2 ):

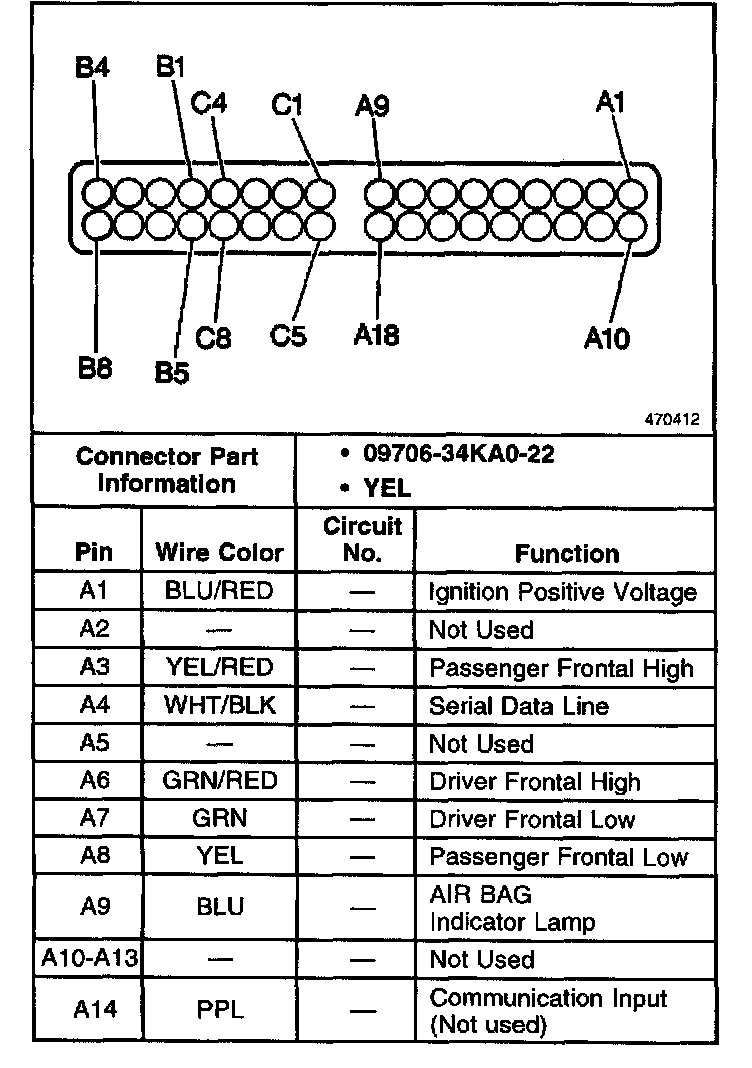

Connector View ( Part 2 Of 2 ):
